2.5.4 Transferring the Configuration File to the Module

Perform the following steps to transfer a configuration file from your PC to the
module.

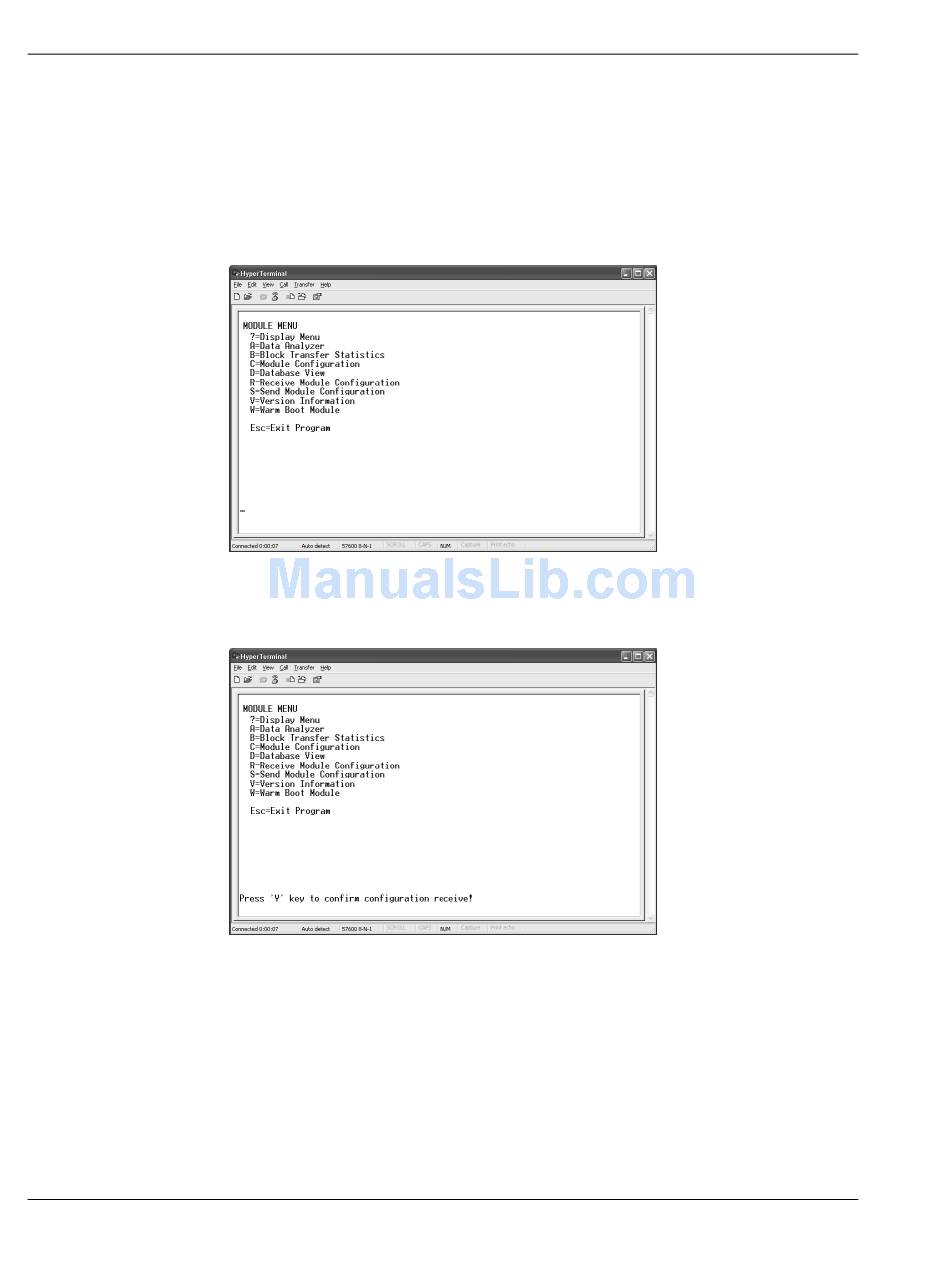

Connect your PC to the Configuration/Debug port of the module using a
1
terminal program such as HyperTerminal. Press [?] to display the main
menu.
Press [R] (Receive Module Configuration). The message "Press Y key to
2
confirm configuration receive!" is displayed at the bottom of the screen.
