Start Here

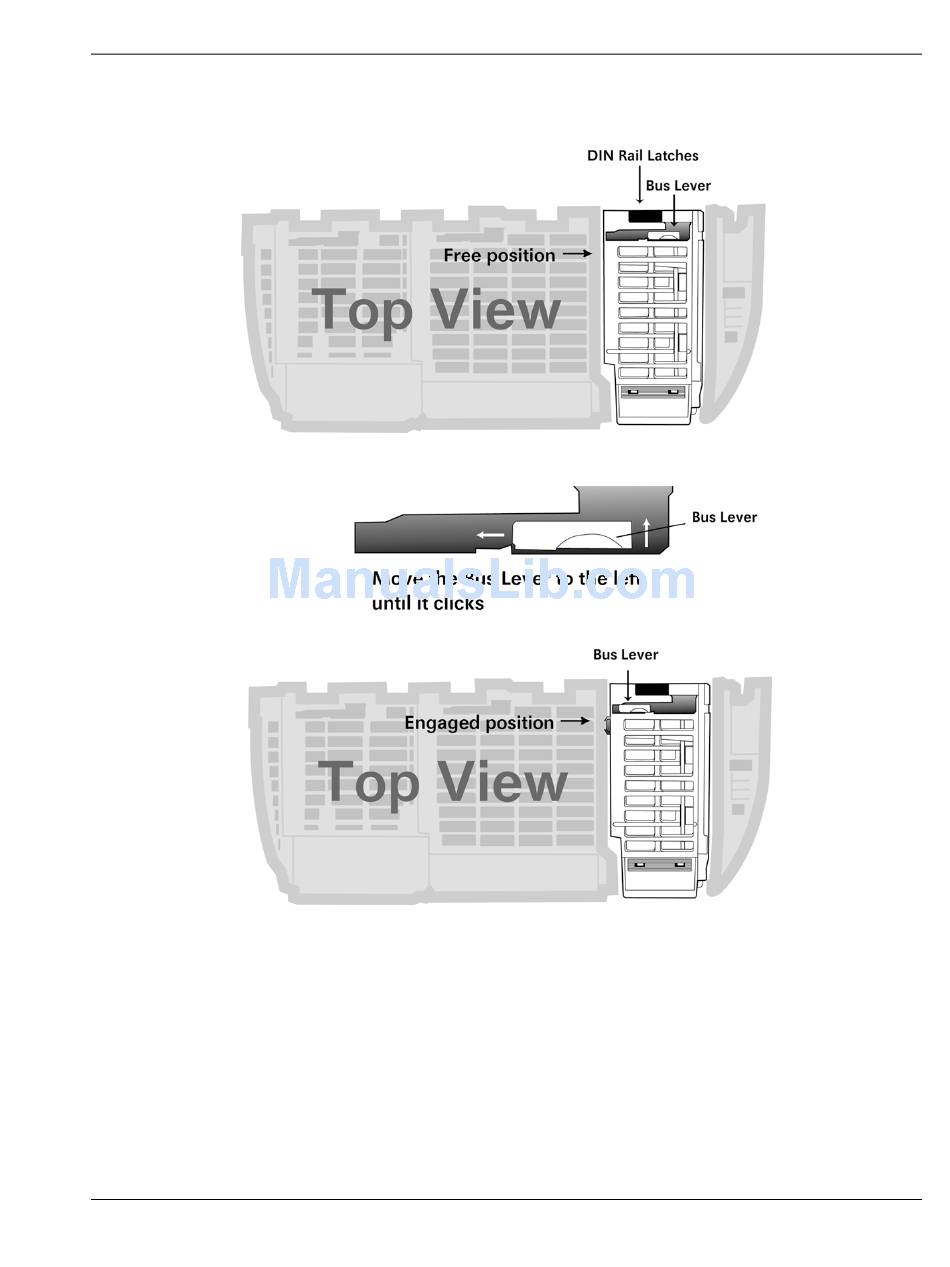

Push the module's bus lever back slightly to clear the positioning tab and
3
move it firmly to the left until it clicks. Ensure that it is locked firmly in place.
Close all DIN rail latches.
4
ProSoft Technology, Inc.
February 4, 2008
MVI69-101M ♦ CompactLogix or MicroLogix Platform
IEC 60870-5-101 Master Communication Module
Page 11 of 133
