2.5.3 Transferring the Configuration File to Your PC

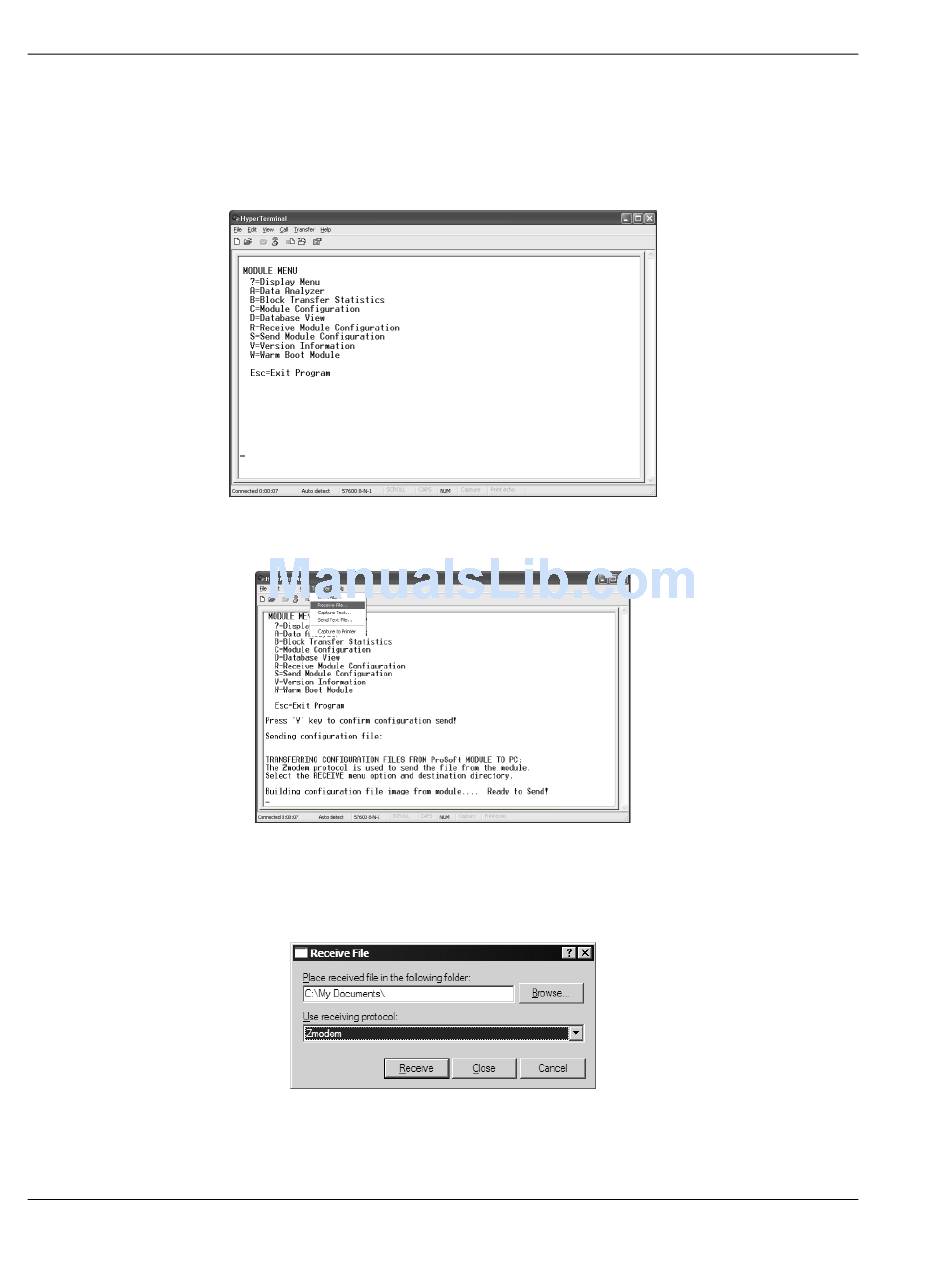

Connect your PC to the Configuration/Debug port of the module using a
1
terminal program such as HyperTerminal. Press [?] to display the main
menu.
From the Transfer menu in HyperTerminal, select Receive File.
2
In the Receive File dialog box, browse to the location on your PC where the
3
configuration file should be stored, and select Zmodem (or Zmodem with
Crash Recovery) as the receiving protocol.
When you have completed your selections, click Close.
