Start Here
With a firm but steady push, snap the module into place.
3
Check that the holding clips on the top and bottom of the module are securely
4
in the locking holes of the rack.
Make a note of the slot location. You will need to identify the slot in which the
5
module is installed in order for the sample program to work correctly. Slot
numbers are identified on the green circuit board (backplane) of the
ControlLogix rack.
Turn power ON.
6
Note: If you insert the module improperly, the system may stop working, or may
behave unpredictably.
Note: If you are installing MVI56-CAS with other modules connected to the PCI bus,
the peripheral modules will not have holding clips. Make sure all of the modules are
aligned with their respective slots before you snap them into place.
1.5

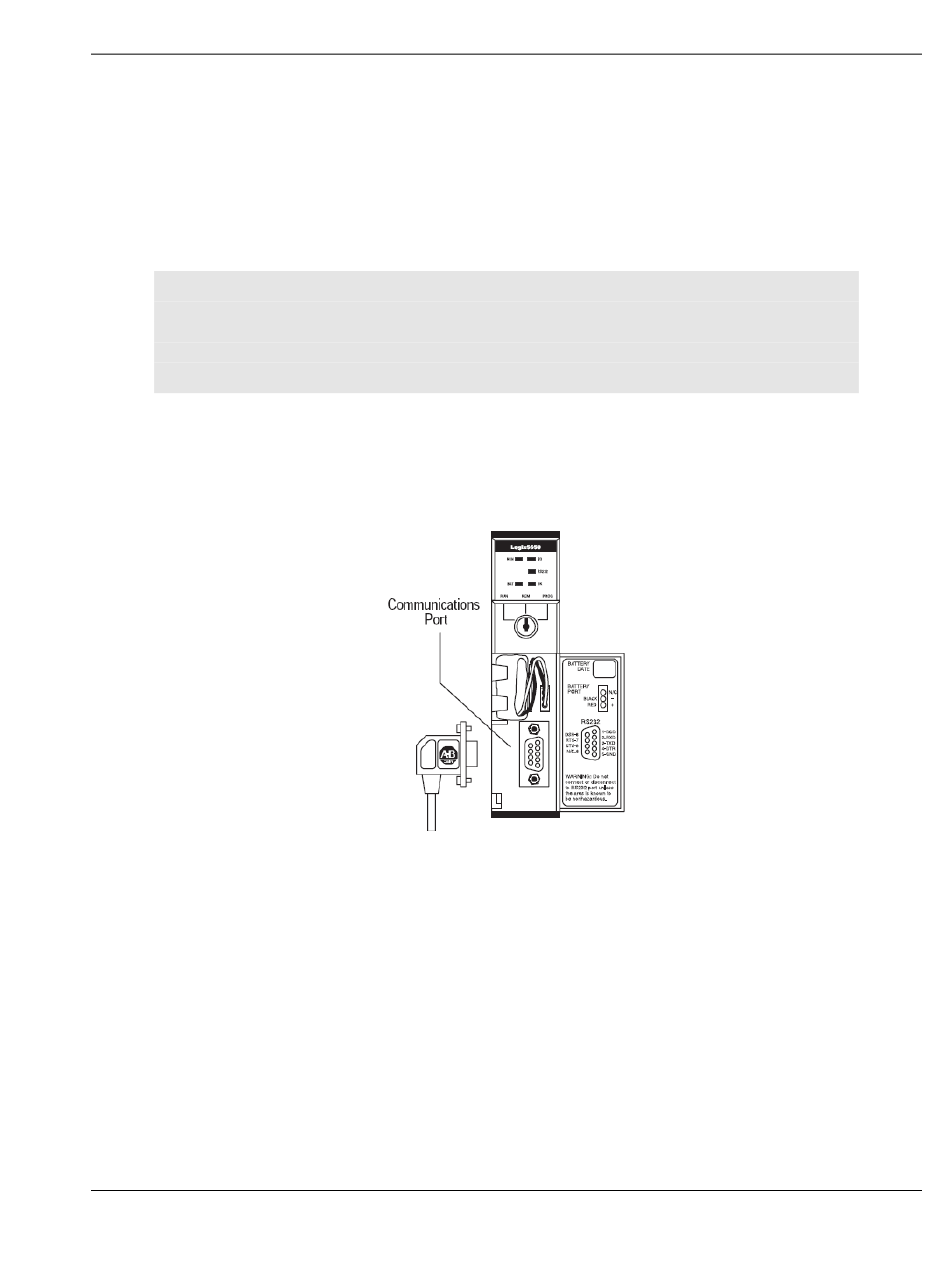

Connect your PC to the Processor

Connect the right-angle connector end of the cable to your controller at the
7
communications port.
