Installing and Configuring the Module

2 Installing and Configuring the Module
In This Chapter
This chapter describes how to install and configure the module to work with your
application. The configuration process consists of the following steps.
Use RSLogix 5000 to identify the module to the processor and add the
1
module to a project.
Note: The RSLogix 5000 software must be in "offline" mode to add the module to a
project.
Modify the example ladder logic to meet the needs of your application, and
2
copy the ladder logic to the processor. Example ladder logic files are provided
on the CD-ROM.
Note: If you are installing this module in an existing application, you can copy the
necessary elements from the example ladder logic into your application.
The rest of this chapter describes these steps in more detail.

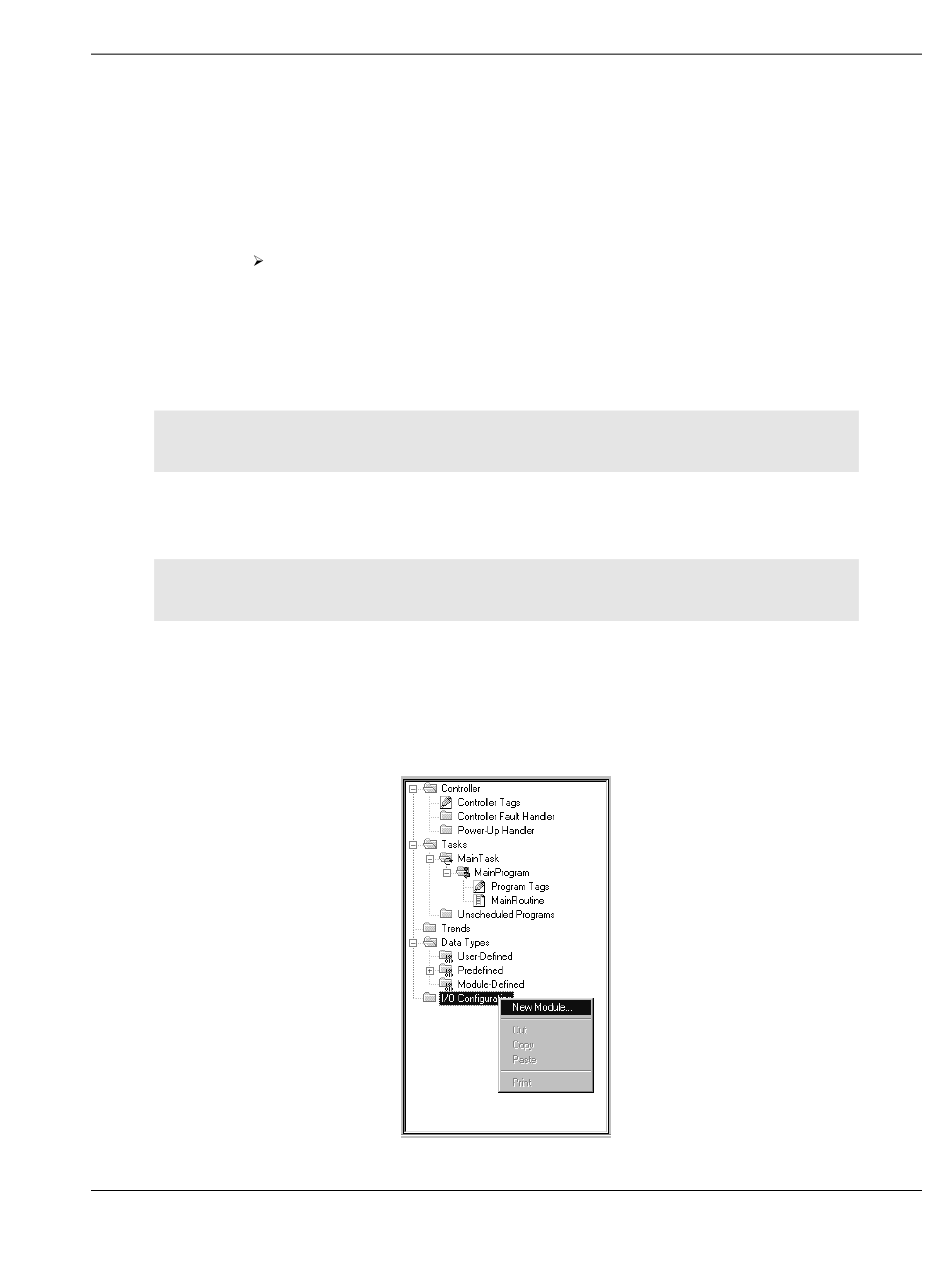

The first step in installing and configuring the module is to define the module to
the system. Right-click the mouse button on the I/O Configuration option in the
Controller Organization window to display a pop-up menu. Select the New
Module... option from the I/O Configuration menu:
