• Never touch the internal terminals in the upper right while the cover is open. There is a risk of shock
because it carries a high voltage.
Prohibited

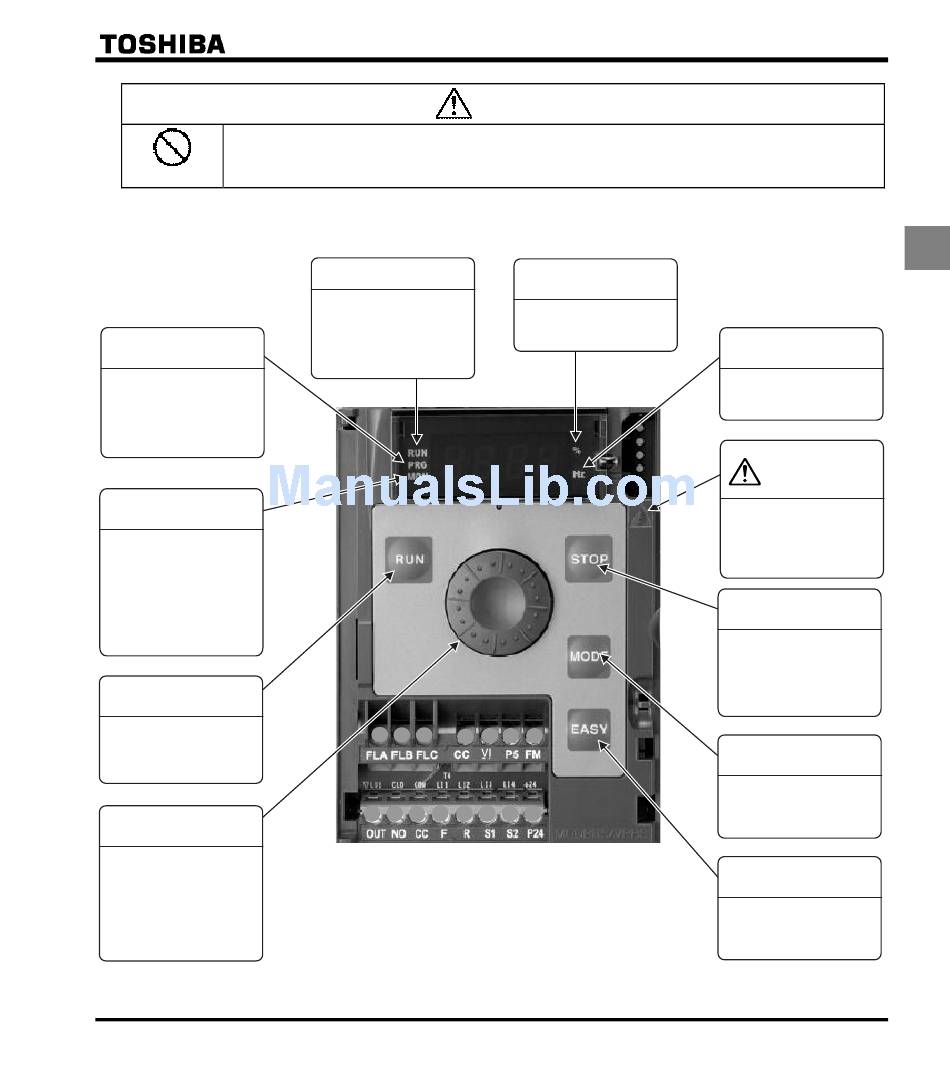

[With cover open]
PRG lamp
When lit, the inverter is
in paramete r settin g
mode. When blinking ,
the inverter is in AUH or
Gr-U.
MON lamp
While this is lit, the
inverte r is in monito r
mode.
While blinking , the
inverter is in "Past Trip
History Details Monitor
Display".
RUN key
Pressing this key while
the run lamp is on starts
operation.
Setting dial
Turning the dial left and
right change s the
operatio n frequenc y,
cycles parameters , and
cycles among menus
within parameters.
Warning
RUN lamp
Lit when a frequency is
not output with the ON
run command. This lamp
blinks when operatio n
starts.
A-5
% lamp
Dispalye d numbers are
percents.
E6581595
Hz lamp
Displaye d numbers are
in Hertz.
High voltage
caution mark
The internal terminal in
the upper right carries a
high voltage. Never
touch it.
STOP key
While the runing lamp is
blinking , pressin g this
button slows down and
stops the inverter.
MODE key
Switche s between run,
settings , and status
monitor modes.
EASY key
Switches between easy
and standard setting
modes.
