3.2.11 Diagnostics Tab
Most diagnostics in this tab report on data flow through the modem as shown in Figure 55.
The diagnostics tab and metrics tab show similar information. The metrics tab shows the
information in terms of data flow (eg: packets per second entering an Ethernet port). The
diagnostics tab shows the information in terms of counts (eg: count of packets that have
entered an Ethernet port).
Diagnostics not related to data flow have additional information in their respective sections.
3‐48

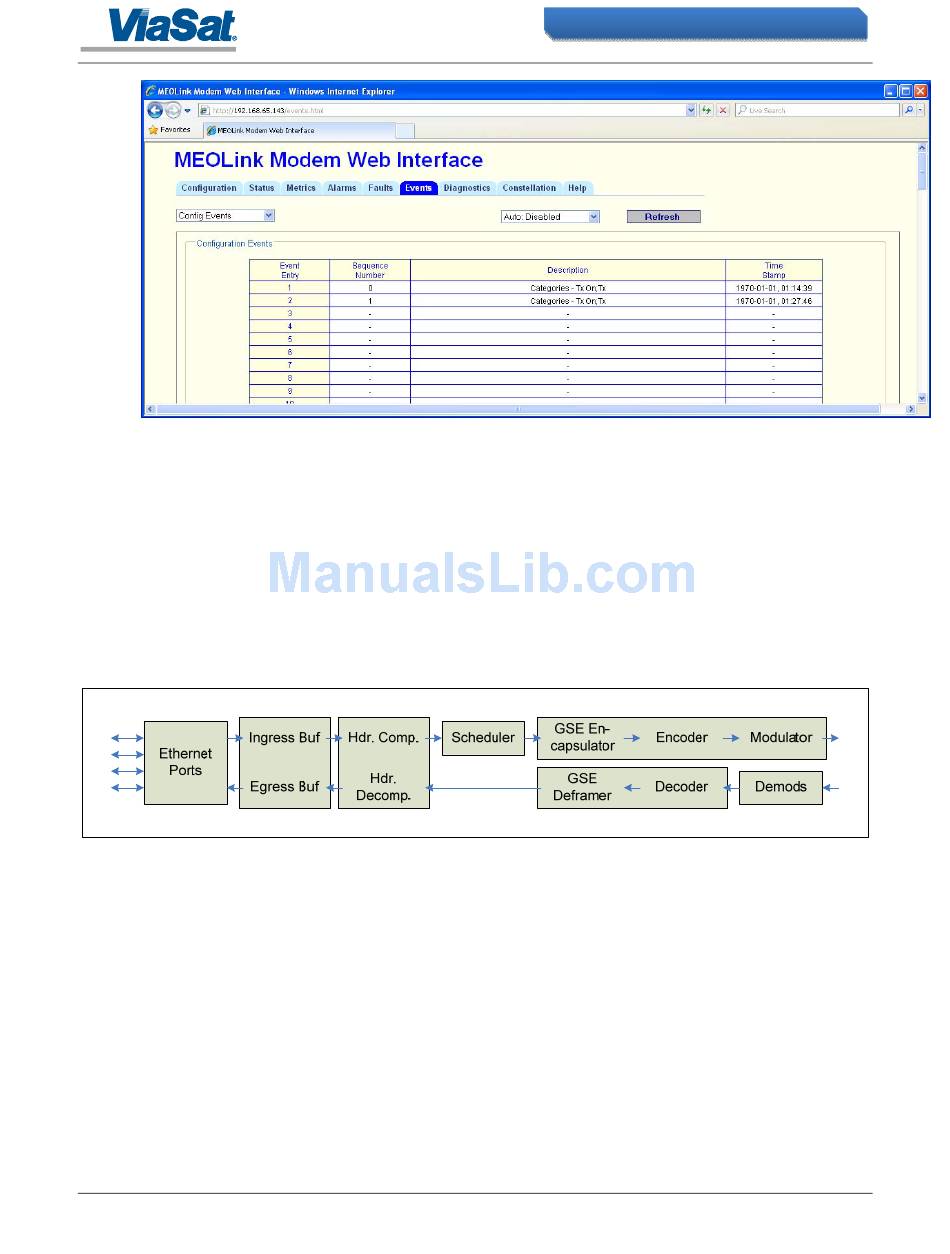

Figure 54: Configuration Events Screen
Figure 55: Modem Data Flow
