ViaSat MEOLink User Manual page 28

If the operator makes changes while in edit mode and selects the Monitor button without
clicking on Load Config, a warning pops up (Figure 21) that all changes will be lost. Clicking
Cancel on the pop‐up warning results in a pop up confirming that Edit mode is still active.
3.2.4 Refresh
The Refresh button reloads dynamic values for fields to which this applies. The Diagnostics
tab is an example where some fields are dynamic—e.g., clicking the Refresh button under
the Ethernet port will normally display incrementally increasing byte counts (see 3.2.11).
The Auto dropdown menu allows the operator to select an automatic refresh of dynamic
fields to periodically occur every 2, 5, 10, 30 or 60 seconds. When "Disabled" is selected, the
Refresh button described above must be clicked to refresh the parameters.
3‐20

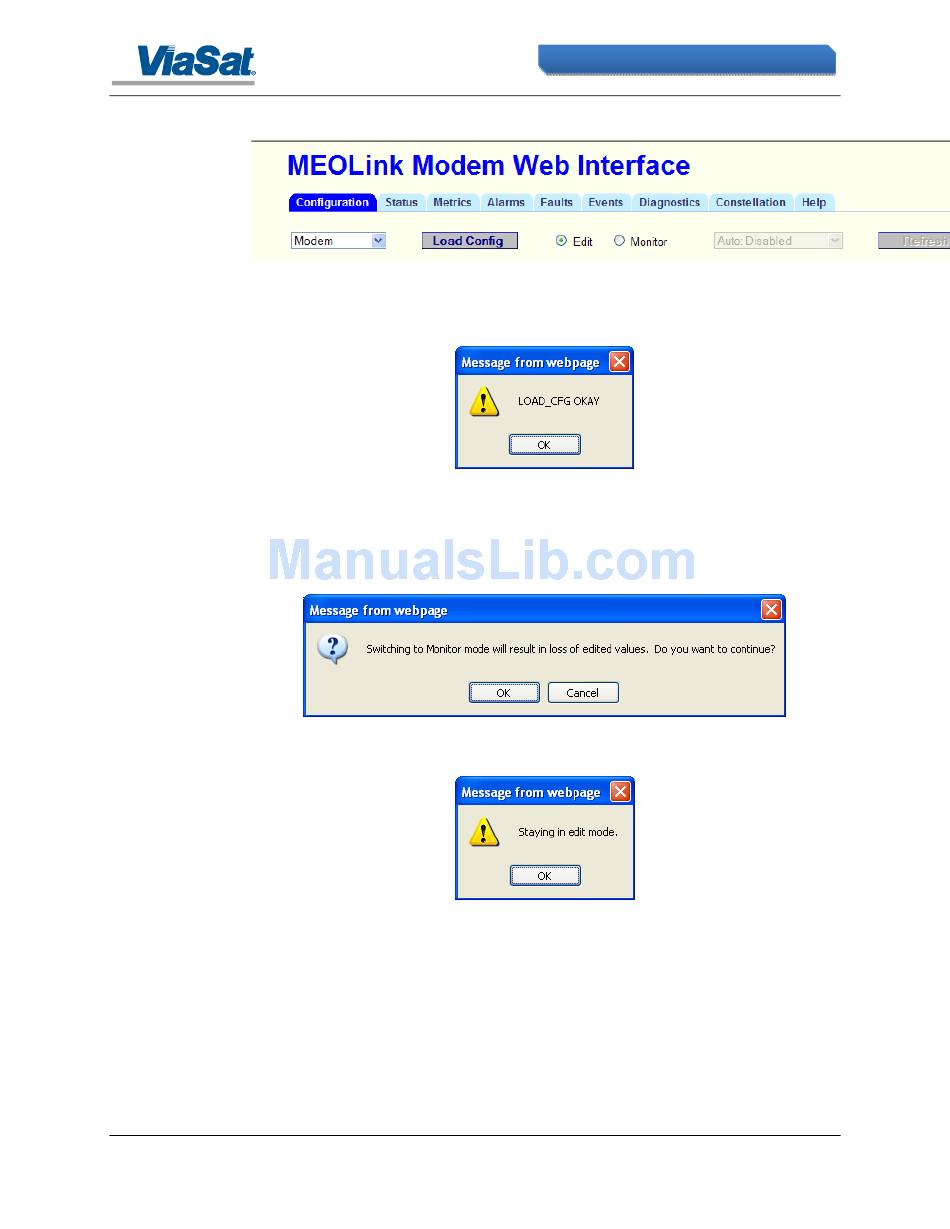

Figure 19: Load Config Button
Figure 20: Load Configuration Confirmation Message
Figure 21: Switch to Monitor Mode Warning
Figure 22: "Staying in Edit Mode" Message
MEOLink User Manual
Rev 002vx
1141780,
