3.2.6 Status Tab
The Status tab provides monitoring information for Ethernet traffic (Dashboard (Figure 36)),
overall system status (Summary (Error! Reference source not found.)), transmission status
(Transmit (Figure 38)), receive status (Receive (Figure 39)), temperature and FPGA status
(Board (Figure 40)), and active logins for the Web interface (Web Login (Figure 41)).
3‐32

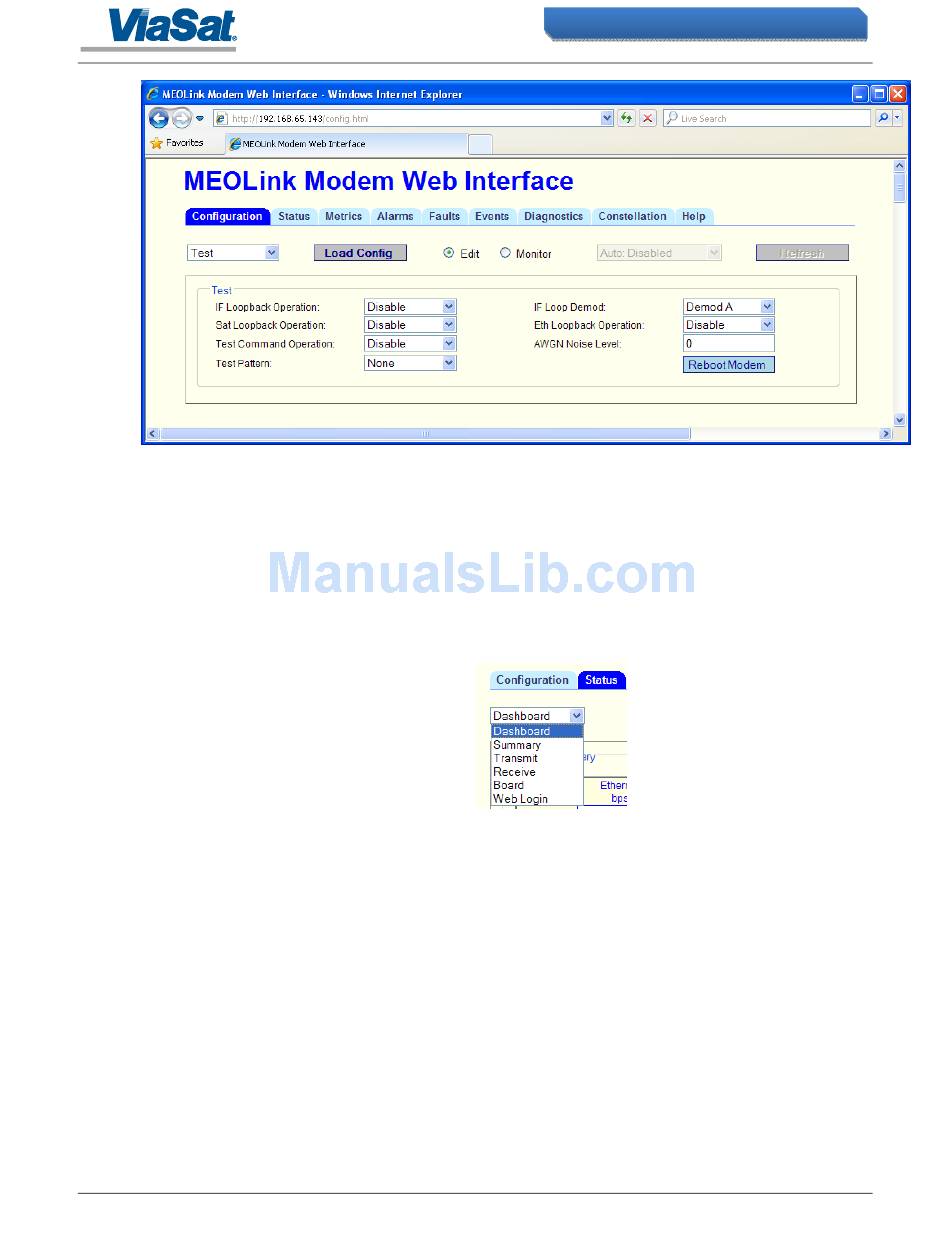

Figure 34: Test Configuration Screen
Figure 35: Status Dropdown Menu
