MEOLink User Manual
3.2.7 Metrics Tab

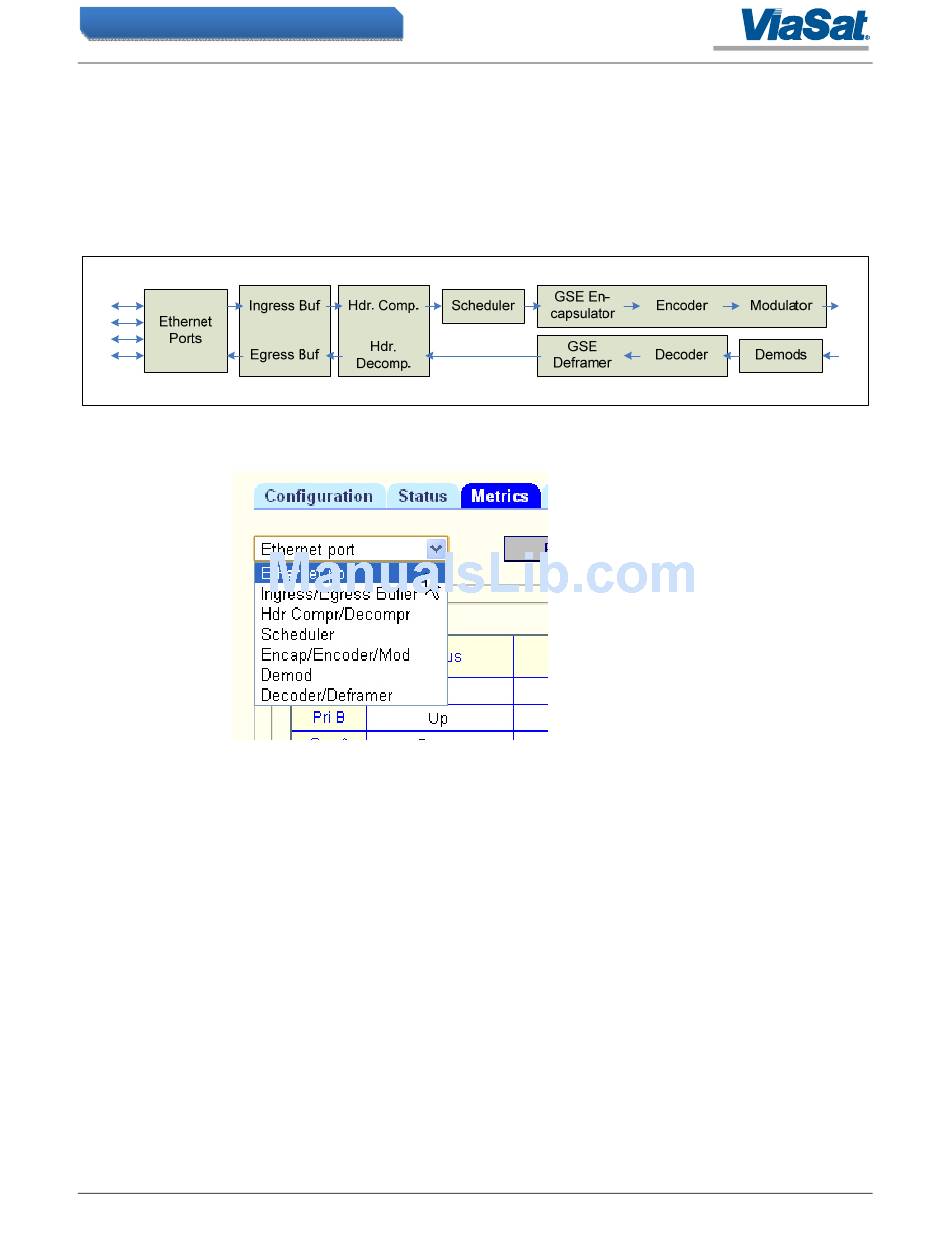

The metrics in the following tab are reported for the data flow through the modem as shown
in Figure 42. The diagnostics tab and metrics tab show similar information. The metrics tab
shows the information in terms of data flow (eg: packets per second entering an Ethernet
port). The diagnostics tab shows the information in terms of counts (eg: count of packets
that have entered an Ethernet port).
Rev 002vx
1141780,
Figure 42: Modem Data Flow
3‐37
