3.2.6.1 Receive Status
3.2.6.1.1 IF Power Level
The modem does not report an actual input IF power level, but gives the receiver's AGC
value in dBs, see field AGC Gain. The range of the AGC Gain is:
Ideally, the input level should be adjusted such that the AGC Gain value is at ‐25dB.
Rev 002vx
1141780,
Max Attenuation = ‐40dB (maximum level the input can be received)
Min Attenuation = ‐10dB (minimum level the input can be received)

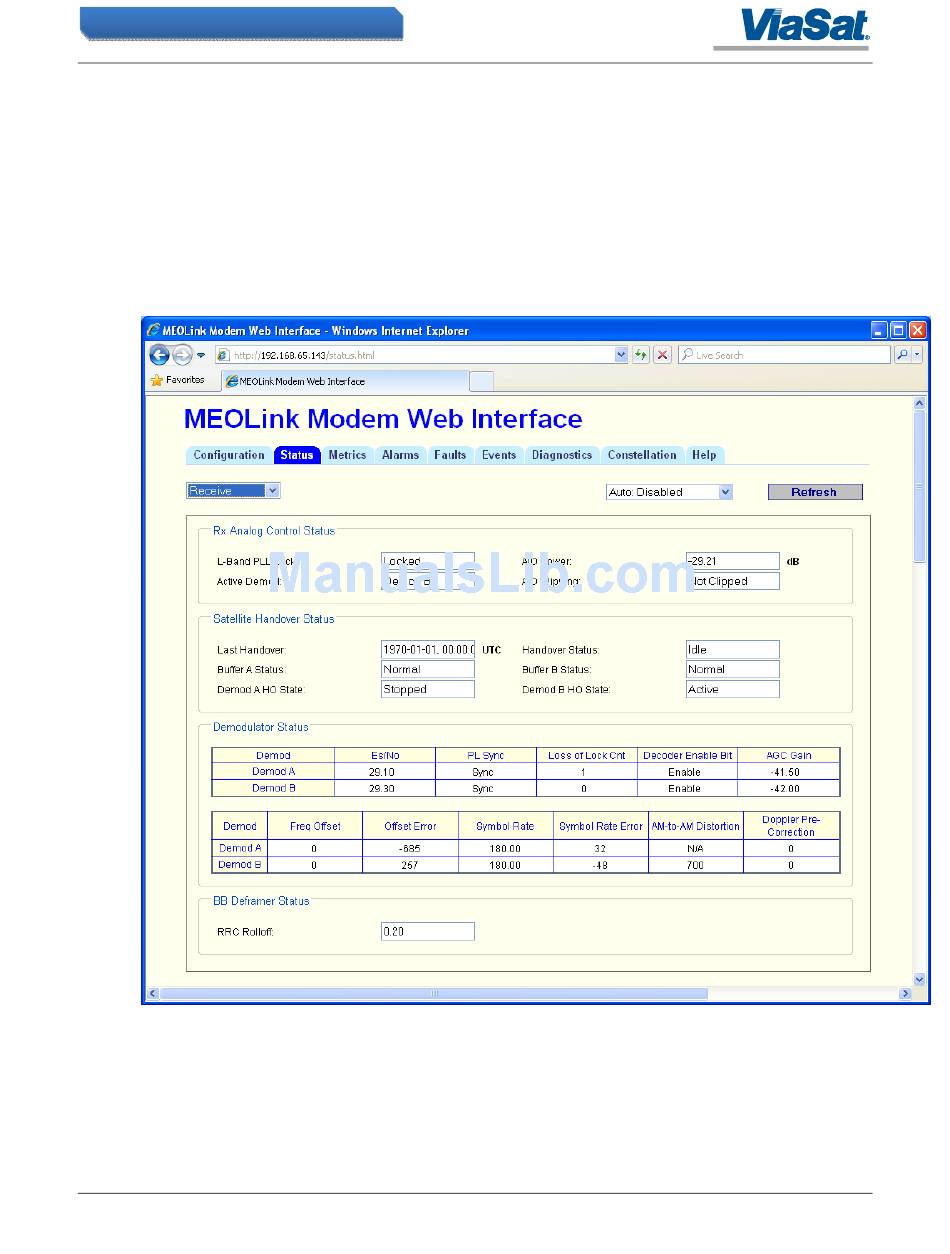

Figure 39: Receive Status Screen
