Field
Pause Frames
Single Queue
Lower Threshold
Upper Threshold
QoS Queue Properties
Queue 0, Queue 1, etc.
3.2.5.7 Interfaces
Data Plane Interface settings determine on which plane to send data. The value entered in
the VLAN Lo Id field determines on which data plane packets will be sent per the formula
below:
Packets with VLAN Lo Id:
≤VLAN Lo Id entry
> VLAN Lo Id entry
3‐30
Definition/Configuration
Gives the ability to set flow control to upstream equipment
Uses Queue 0 properties to set single queue values
Used to configure flow control. If the queue reaches this value
it requests the upstream device to start sending data to this
device
Used to configure flow control. If the queue reaches this value
it requests the upstream device to discontinue data to this
device
Total Threshold in bytes

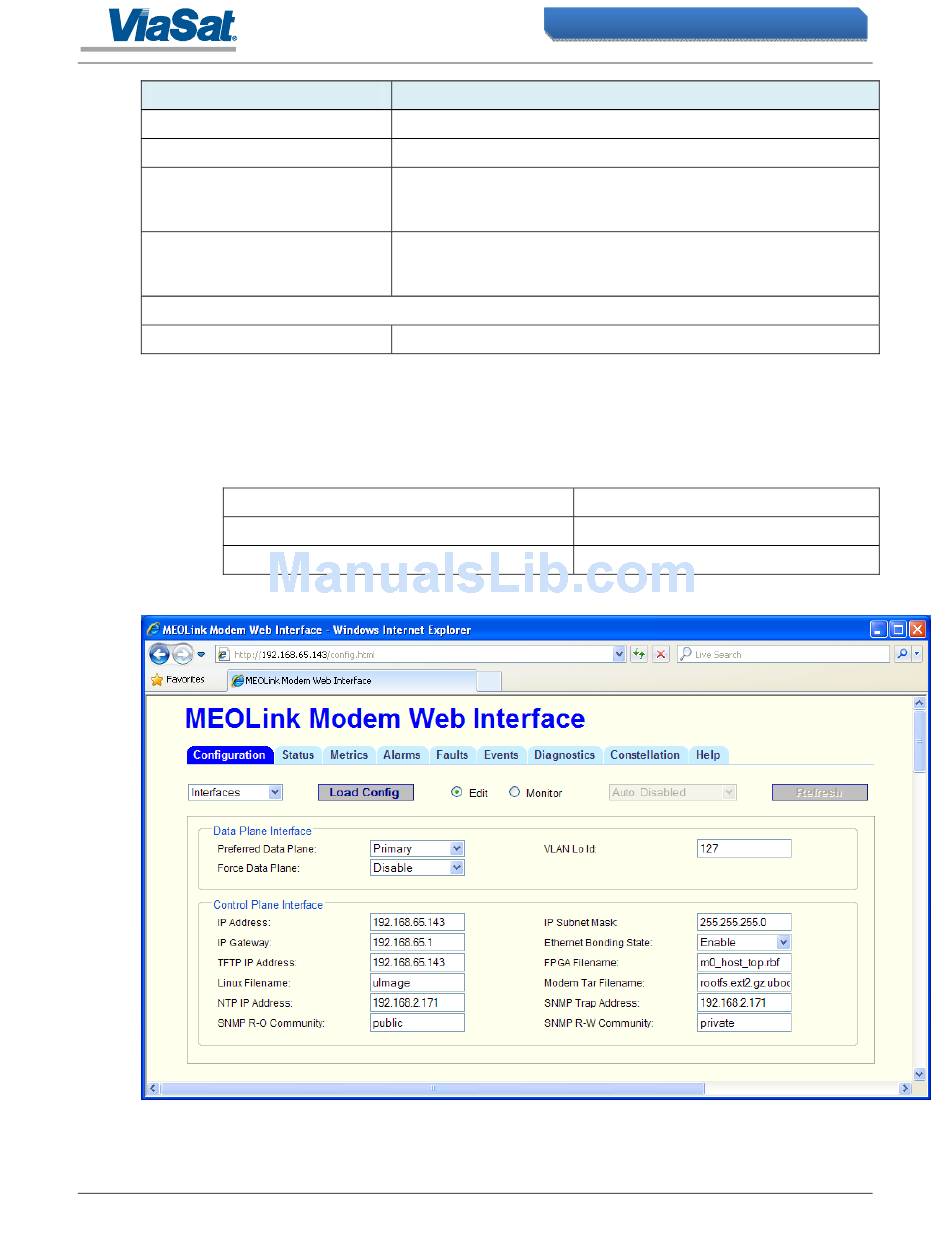

Figure 33: Interfaces Configuration Screen
Table 10: Interfaces Configuration Parameters
MEOLink User Manual
Packets Sent to:
Data Plane A
Data Plane B
