Field
Decoder/Deframer Summary Metrics
Decoder BB Frame Rate
GSE Eth Pkt Rate
GSE Dropped Pkt Rate
Decoder Metrics per MODCOD
MODCOD 0, 0, 1, 2, etc.
3‐44

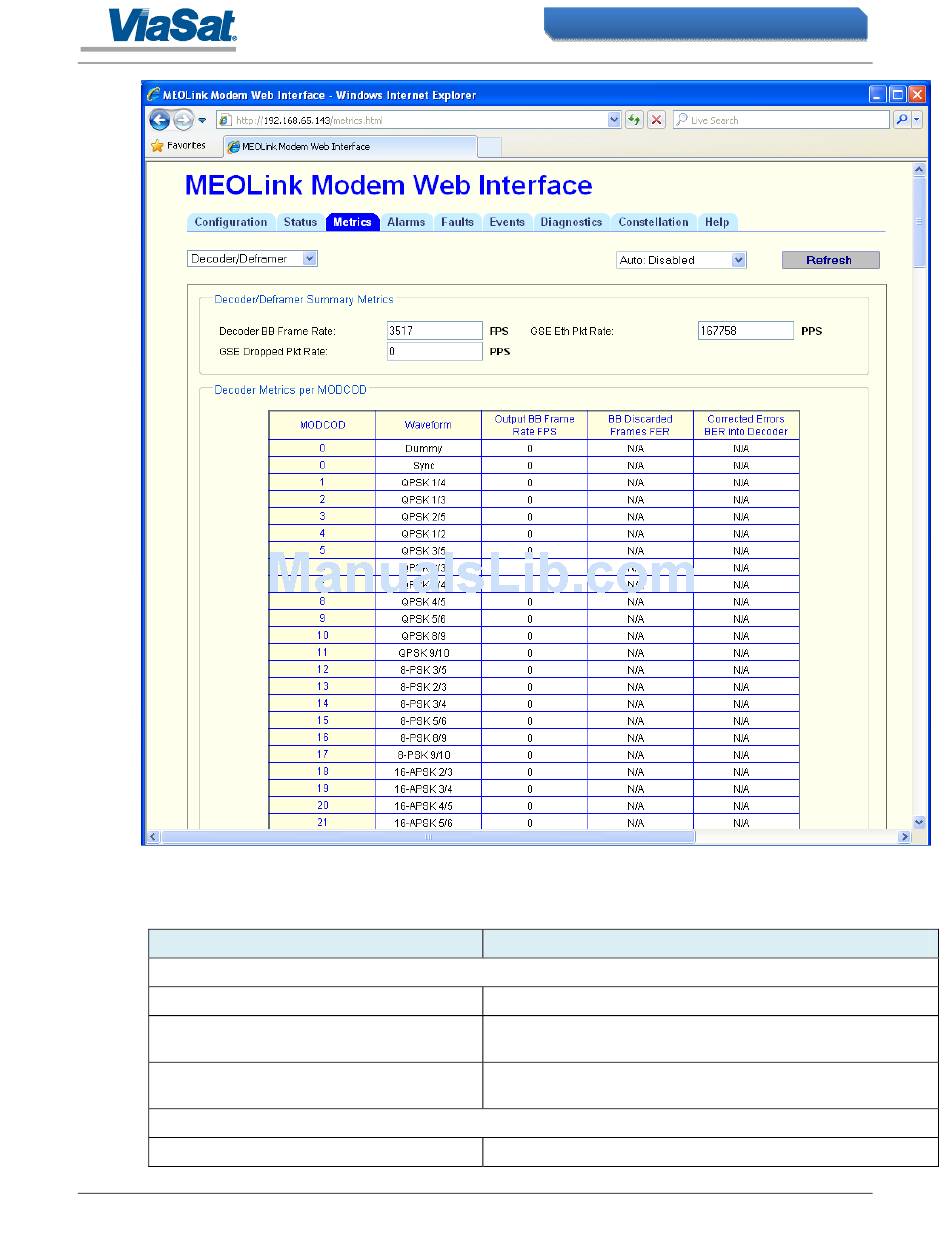

Figure 49: Decoder/Deframer Metrics Screen
Table 12:  Decoder/Deframer Metrics Parameters
Definition/Configuration
Decoder output BBFrame rate (FPS)
Generic Stream Encapsulator (GSE) output Ethernet
packet rate (PPS)
Generic Stream Encapsulator (GSE) dropped packet rate
(PPS)
Performance and error rates per waveform ID (MODCOD)


MEOLink User Manual
Rev 002vx
1141780,
