4.2

Starting up

• Switch ON FELCOM 70. See figure on page 2-3 for location of the ON/OFF
switch.
• Turn ON the PC and click Start>Programs>vtLite Mobile.

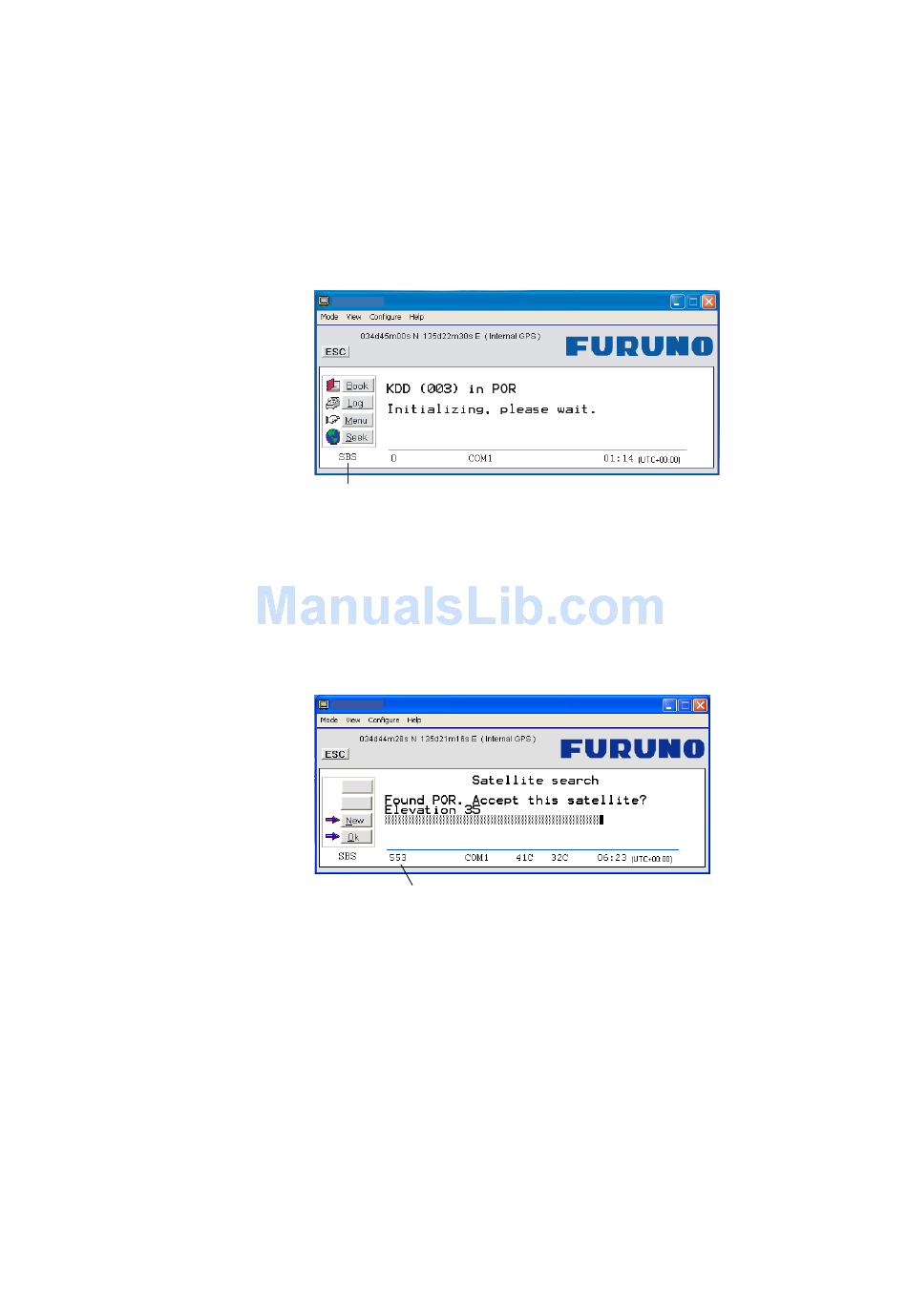

1 The satellite search program is initialized.
See also "3.2 Satellite search".
2 FELCOM 70 starts searching for last known satellite (Ocean Region) as
default.
3 When receiving a satellite signal, a signal strength bar will appear in the
search window. The longer the signal bar or higher the signal strength
indicator value, the better the signal quality. The maximum marker indicates
the highest signal strength achieved during the current search.
1
Beam was selected. In global beam, "GLB" is shown.
If spot selection is not complete, SBS is shown as above.
3
S/N ratio
