9. SYSTEM DESCRIPTION
Communication services
FELCOM 70 provides the following services:
• ISDN:
- 4.8 kbps speech
- 64 kbps speech
- 64 kbps data service (UDI)
- 56 kbps data service
- 3.1 kHz audio (64 kbps)
• RS-232/RS422:
- 64 kbps data service (UDI)
• USB
- 64 kbps data service (UDI).
Requires PC with MS Windows 2000/XP.
• MPDS Mobile Packet Data Service

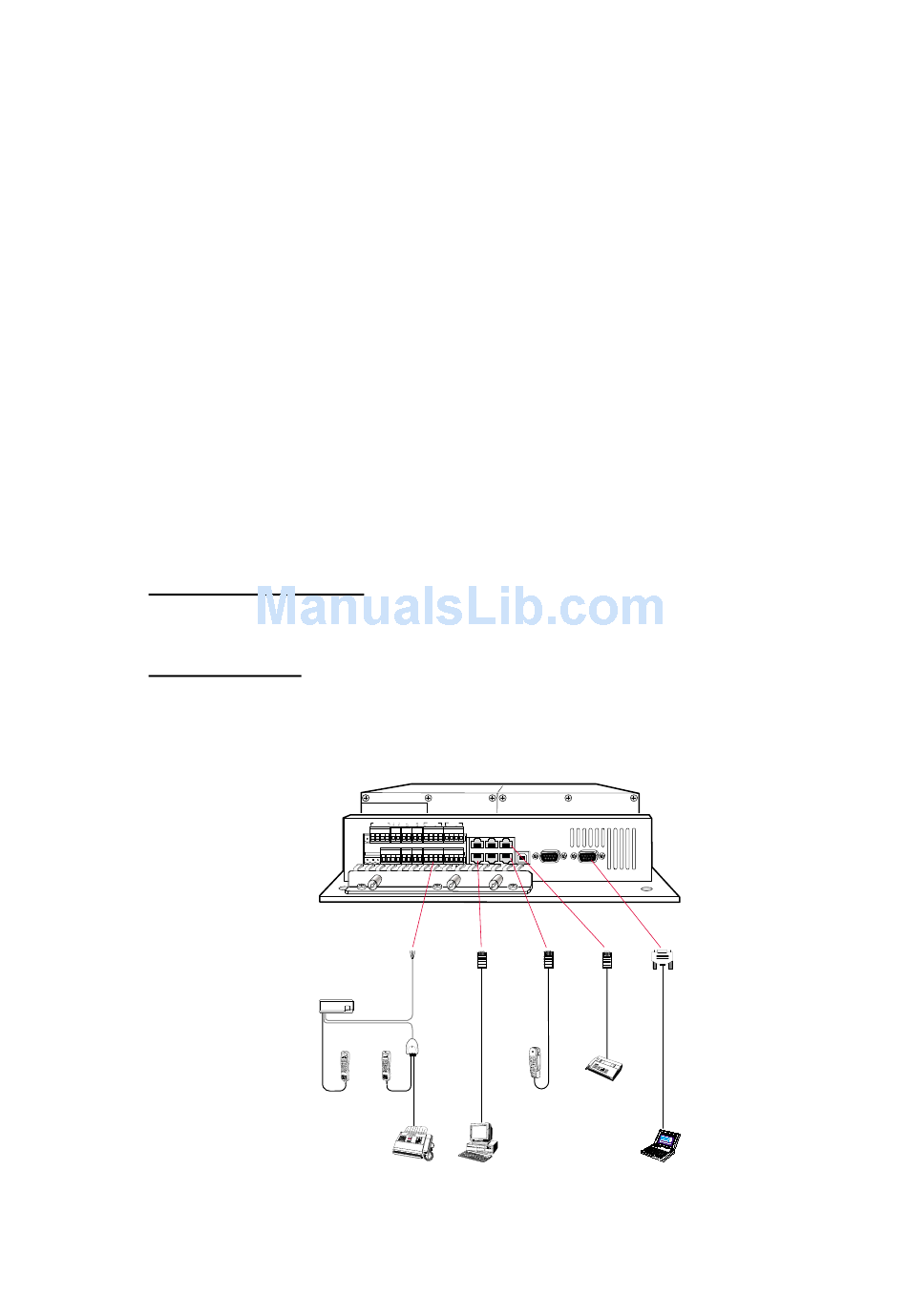

The FELCOM 70 CU has following ports (see figure):
• ISDN ports for connection of ISDN telephones, telefax (Gr.4) or data
equipment; a total of 8 devices.
• RS-232/RS422 and USB ports for connection of data equipment.
Internal communication
Equipment connected to the various interfaces may communicate with each
other via an internal MSN (Mobile Subscriber Number) assigned to each unit.
Control interface
The RS-232 or USB port allows connection of a PC for configuration of FELCOM 70.
A PC program that provides the software to operate and configure FELCOM 70
terminal is supplied on the enclosed CD.
