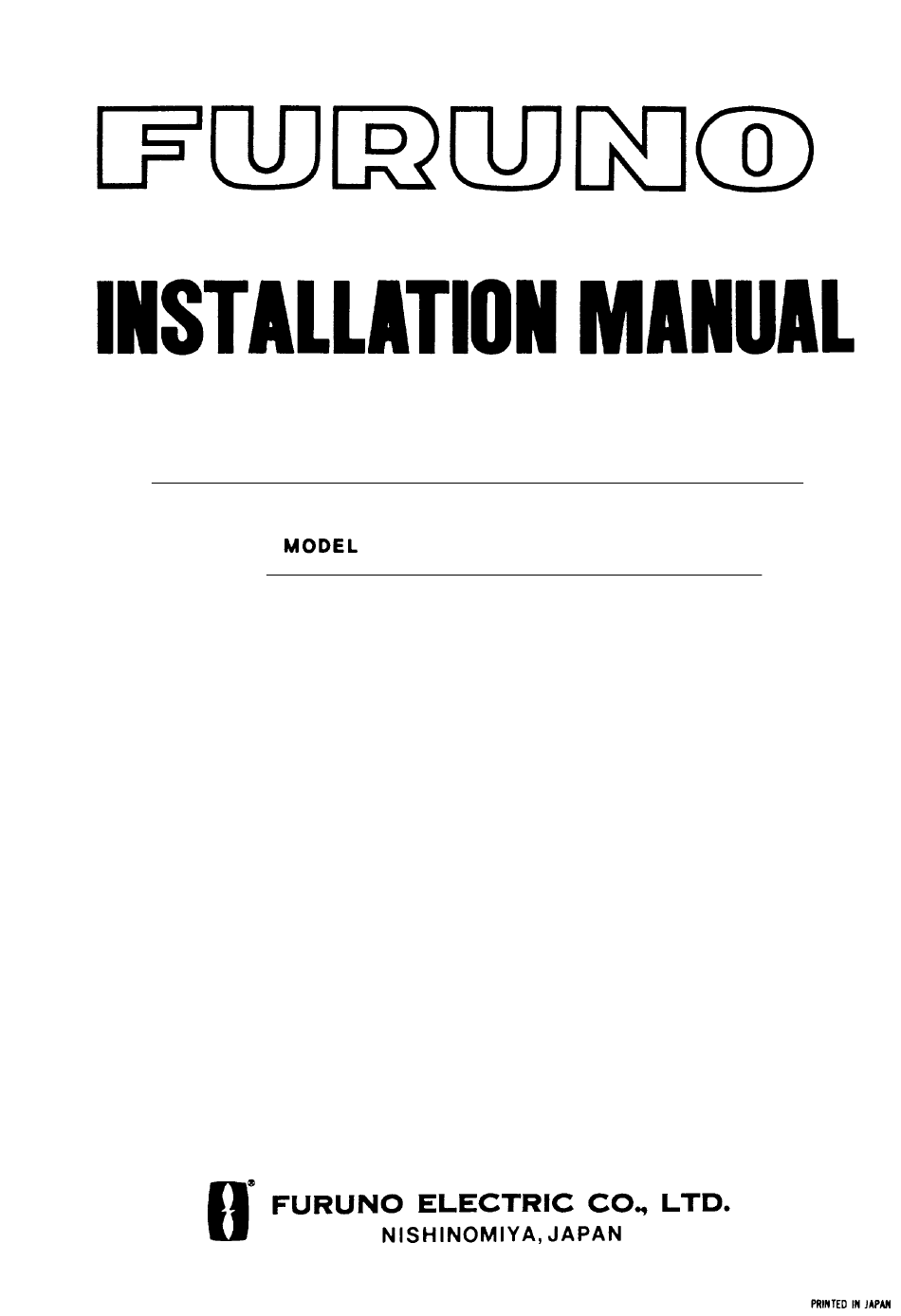

INMARSAT B MOBILE EARTH STATION
FELCOM 82A ... (For Class 1)
FELCOM 82B ... (For Class 2)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FELCOM 82A Series and is the answer not in the manual?

Questions and answers

Related Manuals for Furuno FELCOM 82A Series

Summary of Contents for Furuno FELCOM 82A Series

  • Page 1 INMARSAT B MOBILE EARTH STATION FELCOM 82A ... (For Class 1) FELCOM 82B ... (For Class 2)
  • Page 2 Your Local Agent/Dealer Your Local Agent/Dealer 9-52 Ashihara-cho, 9-52 Ashihara-cho, Nishinomiya, Japan Nishinomiya, Japan Telephone : Telephone : 0798-65-2111 0798-65-2111 Telefax : Telefax : 0798-65-4200 0798-65-4200 FIRST EDITION : FIRST EDITION : DEC. DEC. 2000 2000 All rights reserved. All rights reserved. Printed in Japan Printed in Japan : MAY.
  • Page 3 SAFETY INSTRUCTIONS WARNING WARNING Do not open the equipment Ground the equipment to unless totally familiar with prevent electrical shock electrical circuits and and mutual interference. service manual. Only qualified personnel Confirm that the power supply voltage ELECTRICAL should work inside the is compatible with the voltage rating SHOCK equipment.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS EQUIPMENT LISTS........iii 3 INITIAL SETTINGS ........34 3.1 Hatch Direction and Heading Adjustment 34 SYSTEM CONFIGURATION ....v 3.2 Setting of Telephone (option) ....35 3.3 Facsimile PFX-50 Setting......36 1 MOUNTING OF UNITS......1 1.1 Antenna Unit...........1 4 SYSTEM SETUP........38 1.2 Communication Unit .......9 4.1 Setting Up ..........38 1.3 Terminal Unit (for class 1 only)....11 4.2 Registering Answerback Code...

  • Page 5: Equipment Lists

    EQUIPMENT LISTS Standard Supply Name Type Code No. Remarks Antenna Unit IB-182 1 set Communication Unit IB-282 1 set Terminal Unit IB-582 1 set Class 1 only Junction Box IB-313 1 set Handset IB-882 1 set with handset hanger RB-2721B IB-882-362 with handset hanger RB-2721B-362 Telex Distress Alert...
  • Page 6 Optional Supply Name Type Code No. Remarks Incoming Indicator IB-372 1 set w/CP16-01801 Printer PP-510-82 1 set w/CP16-01701, FP16-00100 Facsimile PFX-50 1 set w/CP16-00590 Telephone FC755D1 1 set w/CP16-00511, 00512 Antenna Cover QB05-1801 100-079-480 Modular Jack Box OP16-10 000-043-278 Box type Modular Jack Box OP16-11 000-043-279...

  • Page 7: System Configuration

    SYSTEM CONFIGURATION...
  • Page 8 This page is intentionally left blank.

  • Page 9: Mounting Of Units

    1 MOUNTING OF UNITS This chapter describes how to mount the units of the system, including optional equipment. 1.1 Antenna Unit 1.1.1 Mounting considerations General Interfering objects (especially metallic objects such as masts) near the antenna can, in the worst case, prevent reception or transmission. Further, RF radiation from the antenna will affect the human body.
  • Page 10 Freq. Range Max. Amplitude 4 to 10 Hz 2.54 mm (max. 9.8 m/s²) 10 to 15 Hz 0.76 mm (max. 6.86 m/s²) 15 to 25 Hz 0.40 mm (max. 9.8 m/s²) 25 to 33 Hz 0.23 mm (max. 9.8 m/s²) Half Vibration Max.
  • Page 11 More than 5 m If installed within 5 m of radar antenna, the antenna unit must not be within the radar beam. Distance from antenna radar Compass safe distance Locating the antenna unit too close to a compass can affect compass performance. The compass safe distance is 1.10 meters, steering compass, 1.60 meters, standard compass.
  • Page 12 Mast strength The mast material must be sufficiently strong to meet the demands of the marine environment. It should satisfy the following requirements. • It must be able to support radome mass plus at least 2.5 centimeters of ice and snow. Special consideration should be given if the unit is operated in areas of heavy snow or freezing temperature.
  • Page 13 Mounting base A mounting base is installed between the mast and the antenna unit. Below are guidelines for installation of the mounting base. 1. The face of the mounting base should be flat as possible (tolerance: within 2 millimeters of the horizontal plane). 2.
  • Page 14 Unpacking • Check that if the antenna unit is damaged by shipment. • Unpack the antenna unit carefully so as not to damage it. Remove hex nut, spring washer, flat washer, large washer and fixing material to dismount the antenna unit. This hardware can be discarded. Eye bolt Antenna Fixing plate...
  • Page 15 1.1.3 Mounting Unpacking, visual inspection Carefully unpack the radome and check for damage. Procedure 1. Run lifting rope through eye bolts and shackles. 2. Cover the portion of the radome which contacts the lifting rope with protective material (rubber mat, etc.), to prevent damage to the radome when hoisting it to the mounting location.
  • Page 16 Attach electromagnetic wave caution label Labels which warn of electromagnetic waves are supplied with the installation materials. Attach them as follows. 1. To the radome mast where it can easily be seen. 2. In a conspicuous location in the stairwell leading to the deck where the antenna unit is installed.

  • Page 17: Communication Unit

    1.2 Communication Unit 1.2.1 Mounting considerations Vibration conditions The mounting location should satisfy the condition of vibration amplitude tabulated below. Freq. Range Max. Amplitude 4 to 15 Hz 0.76 (max. 6.86 m/s²) 15 to 25 Hz 0.40 (max. 9.8 m/s²) 25 to 33 Hz 0.23 (max.
  • Page 18 1.2.2 Mounting Procedure Before mounting the unit, lay cables, fabricate connectors and establish the ground system. Then, mount the unit as follows. Note:Do not install the communication unit on a bulkhead because of its weight. 1. Fix the arms at both sides of the equipment to the mounting location with four tapping screws (5x20, supplied as installation materials).

  • Page 19: Terminal Unit (For Class 1 Only)

    1.3 Terminal Unit (for class 1 only) 1.3.1 Mounting location • Leave sufficient space around the unit to permit checking and maintenance. • Locate the unit where temperature and humidity are stable and moderate. • Locate the unit at least 5 meters from high power communications equipment and its feeder and antenna to prevent mutual interference.

  • Page 20: Printer

    Label for key operation for INMARSAT-B (16-011-5803, supplied) Label for compass safe distance (16-011-5804-0, supplied) Keyboard, attaching labels 1.4 Printer Fix the printer to the mounting location with the two mounting fixtures (supplied). See the outline drawing at back of this manual for details. Printer fixture 2 Printer fixture1...

  • Page 21: Junction Box Ib-313

    1.5 Junction Box IB-313 The usual mounting location is behind the communication unit on the bulkhead. The junction box connects to the communication unit with a 2 meter cable, which is attached to the IB-313 at the factory. Keep this length in mind when selection a mounting location. Be sure to leave sufficient space around the unit as shown below.

  • Page 22: Telex Distress Alert Button Ib-352

    1.6 Telex Distress Alert Button IB-352 The IB-352 is usually installed near the terminal unit. For location away from the communications room, install it where it can be easily seen. Fix it to the mounting location with tapping screws. The location of the cable gland depends on the type of unit. Pass the cable through the bushing (supplied as installation materials) at the bottom or the rear of the unit and connect it to the terminal board referring to the interconnection diagram.

  • Page 23: Handset Hanger Rb-2721B Or Rb-2721B/362

    1.8 Handset Hanger RB-2721B or RB-2721B/362 The length of the handset cable is 5 m/10 m/20 m, so locate the handset hanger within 5 m/10 m/20 m from the communication unit. The RB-2721B/362 has a distress telephone button. Make a cable hole in the bulkhead referring to the figure below. Remove six screws to detach the hanger cover, and fasten the hanger with two tapping screws (supplied) on the desktop or bulkhead.

  • Page 24: Mounting Of Optional Equipment

    1.9 Mounting of Optional Equipment 1.9.1 Mounting the Facsimile PFX-50 Refer to the drawing below. Use only the installation materials supplied. Note: When ship’s main is 220/230 VAC, the optional transformer FIT-100 is required. 1. Attach the “rough” velcro fasteners to the mounting location as shown in the drawing below.
  • Page 25 Velcro fastener (1) (x2) for PFX-50 Velcro fastener (2) (x2) for mounting location Attach the velcro fastener to the underside. Velcro fastener (3) (x1) for PFX-50 Velcro fastener (4) (x1) for mounting location Mounting dimensions for facsimile PFX-50 1.9.2 Incoming Indicator IB-372 The IB-372 alerts shipboard personnel (by aural alarm) to incoming telephone calls and telex and facsimile messages.
  • Page 26 1.9.3 Telephone General The telephone can be installed on a tabletop or a bulkhead. Select a location where the unit can easily be operated. • For installation on a wooden table, use the mounting base and tapping screws (supplied). • For installation on a steel table, fix the telephone with nuts and bolts. •...
  • Page 27 5. Attach the “SLIDE” label (supplied) to the handset. 6. Attach English language label (supplied) to the telephone. 7. Attach the label for compass safe distance (16-007-6927-0) and INMAR “B” as shown below. Attach label for INMAR "B". Label (16-007-6927-0) Telephone, attaching the label 1.9.4 HSD I/F (KLAS bland) The optional KLASHOPPER HSD I/F, which is connected to PC, provides communication...

  • Page 28: Wiring

    2 WIRING 2.1 Standard Wiring Antenna Unit IB-182 0.5m Earth wire 16S0116 Terminal Unit IB-582 (FELCOM 82A only) 16S0068, 5m Handset IB-882/IB-882-362 COM1 BREAKER COM2 PRINTER Earth wire 24 VDC KEYBOARD 8D-FB-CV*30m* 08S0087 8D-FB-CV*50m* VCTF0.75x2C, 3m 12D-SFA-CV*100m* FELCOM 82A only Keyboard BTC-5100C PS/2 Printer PP-510...
  • Page 29 2.1.1 How to attach the antenna cable connector N-P-8DFB and N-P-12DSFA Fabricate the antenna cable as shown below to connect the antenna unit to the communication unit. N-P-8DFB connector Note: The length of the antenna cable 8D-FB-CV must not be less than 20 m. (Dimensions in millimeters.) Outer Sheath Inner Sheath Shield...
  • Page 30 N-P-12DSFA connector Note: The length of the antenna cable 12D-5FA-CV must not be less than 40 m. (Dimensions in millimeters.) Outer Sheath Inner Sheath Shield Remove outer sheath and armor by the Armor dimensions shown left. Expose inner sheath and shield by the dimensions shown left.
  • Page 31 2.1.2 Power cable for printer and terminal unit Fabricate the RM12BPG-2PH connectors and power cables for terminal unit and printer to connect to the communication unit. Remove outer sheath by 15 mm, core cable by 3 mm. Cable from Printer Cable from Terminal unit Red: 1(+24V) White: 1 (+24V)

  • Page 32: Handset Ib-882/Ib-882-362

    2.2 Handset IB-882/IB-882-362 Take appropriate measures to ensure water does not penetrate through hole in bulkhead made for the handset cable. 2.2.1 8-pair cable between the hanger and communication unit 8-pair cable (supplied, 5 m/10 m/20 m) should be fabricated as below. Unused cables should be cut.

  • Page 33: Junction Box Ib-313

    2.3 Junction Box IB-313 You will need a small slotted-head screwdriver to open terminals. Insert the screwdriver in terminal to open it. Then insert wire core. For cables with shields be sure the shields are well grounded in the cable clamps. Cover Core 7 mm Terminal...

  • Page 34: Wiring At The Antenna Unit

    2.4 Wiring at the Antenna Unit 2.4.1 Fixing of antenna cable Lead in the antenna cable 600 ± 20 mm (marked with vinyl tape) from the cable entry in the antenna base. Connect the coaxial connector and fix it by the cable clamp. 2.4.2 Ground A ground wire (IV-14SQ, 500 mm) comes with the antenna unit.

  • Page 35: Facsimile Pfx-50 (Option)

    JUNCTION BOX IB-313 Modular jack box MJ-2S Telephone TEL1 FC755D1 TEL2 TEL3 Cable with modular plug Two telephones can be connected Telephone to each terminal. FC755D1 Cable (CO-SPEVV-SB-C 0.2X1P or TTYCS-1) Connecting telephone to junction box 2.6 Facsimile PFX-50 (option) Connect the cable from the facsimile to TEL1, 2, or 3 in the junction box.

  • Page 36: Incoming Indicator Ic-372 (Option)

    Junction box Modular jack box IB-313 MJ-2S TEL1 PFX-50 TEL2 TEL3 Cable with A facsimile can modular plug be connected to each terminal. Cable (CO-SPEVV-SB-C 0.2X1P or TTYCYS-1) Wiring of facsimile Earth Use earth wire(08S0087). terminal Facsimile PFX-50, rear view 2.7 Incoming Indicator IB-372 (option) Three IB-372 units can be mounted.

  • Page 37: Gyrocompass

    2.8 Gyrocompass Connect the gyrocompass to the GYRO port at the rear of the communication unit by using NJC-207-PF connector (supplied as installation material for communication unit) and MPYC-5 cable (Japan Industrial Standard (JIS) cable or equivalent). Tape Armor Conductor Vinyl sheath S =1.25 mm Painting...

  • Page 38: Telex Distress Alert Button Ib-352/ Telephone Distress Button Ib-362

    External power supply An external power supply is required when a DC Step-by-step gyrocompass is used since it cannot supply 5W or 20V. 1. When using the external power, remove the jumper wire JP1 from the GYRO PROCESSOR Board. For location of JP1, see page 45. 2.

  • Page 39: Dgps Decoder

    2.10 DGPS Decoder DGPS decoder (L band) can be connected to DGPS port by using a BNC connector. When connecting DGPS decoder, remove R28 (51Ω) on the RFCON Board (16P0181) in the communication unit. 1. Remove the lower cover from the communication unit. 2.

  • Page 40: Checking The Installation

    2.11 Checking the Installation Before turning on the system, check for proper installation, following the procedure shown below. Standard Equipment Antenna unit Is the unit properly grounded? Are all connectors firmly fastened? Are drain holes provided on the mounting base? Communication unit Are all connectors firmly fastened? Is the copper strap firmly fastened?
  • Page 41 Optional Equipment Facsimile Is the unit firmly fastened? Telephone Is the unit firmly fastened to the mounting location (bulkhead, tabletop)? Received call unit Are all connections on the terminal board correctly made? A-D Converter Is the connector firmly fastened? Navigation Data Are all connections on the terminal board of Junction box correctly made?

  • Page 42: Initial Settings

    3 INITIAL SETTINGS 3.1 Hatch Direction and Heading Adjustment Adjust heading as follows when the hatch direction is not stern. 2 Starboard 3 Bow 4 Port 1 Stern (standard) Cable Gland Hatch Hatch Hatch Hatch Hatch directions (view: top view) In case of 2, 3 and 4 above, rotate the disc so that the limit switch turns on when the parabola antenna comes to bow.

  • Page 43: Setting Of Telephone (Option)

    3.2 Setting of Telephone (option) Change dialing format from dial to pushbutton as follows. 1. Insert tip of a mechanical pencil under plastic cover to remove cover, and then remove memo paper. Telephone, removing cover 2. Using the tip of the mechanical pencil, set DIP Switch #1 to ON (PB). VOLUME BELL DIAL...

  • Page 44: Facsimile Pfx-50 Setting

    3.3 Facsimile PFX-50 Setting 3.3.1 Initializing memory and initial setting Turn on the power while pressing [*], [1] and [3] simultaneously to initialize the PFX-50’s memory. Set line type to PB (MF) as folows: 1. Turn on the fax while pressing and holding down [1] [3] and [*]. 2.
  • Page 45 3.3.3 Changing facsimile speed When using FAX on voice channel, the modem speed of FAX should be changed from 9600 bps to 2400 bps. Procedure (for PFX-50) 1. Turn the power on while pressing and holding down the [1] and [3] keys. 2.

  • Page 46: System Setup

    4. SYSTEM SETUP 4.1 Setting Up Setting may be done at the terminal unit or handset. Overview Set up the terminal unit, editor screen (Class 1) and communication unit by handset (Class 1 and 2). When there is no navigation input or gyro input, enter them manually referring to operator’s manual.

  • Page 47: Registering Answerback Code (Class 1 Only)

    4.2 Registering Answerback Code (Class 1 only) Note: The answerback code cannot be changed once registered. Confirm the code before pressing the [Enter] key. Procedure At the terminal unit, press the [F4], [3] and [8] keys in order. Answerback Code Cursor --------------------------------------------- !! ATTENTION: CAN NOT REENTER !!

  • Page 48: Oid/Did Setting

    4.3 OID/DID Setting OID/DID settings are entered through the handset. These settings should only be entered by authorized personnel. 1. Turn the power of the communication unit on to display the startup screen on the handset. The startup screen changes to the standby screen after three seconds. 2 0 0 0 - 0 8 - 2 9 1 2 : 3 4 U T C...
  • Page 49 4. Select a menu item to set, and then press the [Ent] key. Appropriate setting menu appears as shown below. 5 9 O I D / D I D 5 9 O I D / D I D 5 9 O I D / D I D T E L F A X 1 A L P H H A N D S E T...

  • Page 50: Setting Of Gyro Converter

    4.4 Setting of Gyro Converter The AD Converter Board in the Communication Unit accommodate various brands and specifications of gyrocompasses by means of DIP switches and jumper wires. Below are the specifications of the gyrocompass it can accommodate. For the location of DIP switch and jumper settings for various brands of gyrocompass, see page 46.

  • Page 51: Default Setting

    DC step-by-step • Supplied Power ) VDC • Gear Ratio 360x 180x Full/Half wave pulsating current • Frequency 50/60 Hz 400 Hz 500 Hz • Supplied Power ) VDC • Gear Ratio 360x 180x Half wave pulsating current Full wave pulsating current 4.4.1 Default setting This unit is set at factory for connection with the gyrocompass specifications tabulated below.
  • Page 52 4.4.2 Setting procedure 1) Type of gyrocompass 2) Frequency Frequency Remarks Gyrocompass type AC synchronous #1, #2, pulsating current 50/60 Hz synchronous #2, #3, AC synchronous 400 Hz synchronous pulsating current #4, #5, AC synchronous DC step 500 Hz pulsating current Full-wave #4, #5, DC synchronous...
  • Page 53 5) Ratio 6) Supply Voltage Stator Ratio Voltage 20 to 45 VAC, or 360X 20 to 60 VDC 180X 30 to 135 VAC, or 40 to 100 VDC 7) AD-10 format data Tx interval 8) NMEA interval Tx Interval SW2-4 Select data transmitting interval for ports 1 to 6 with jumper wires JP6 and JP7.
  • Page 54 2) DIP switch SW2 Segment Function Setting SW2-1 Rotor Voltage SW2-1 20 to 90 VAC 30 to 135 AC SW2-2, -3 Stator Voltage SW2-2 SW2-3 20 to 90 VAC or 20 to 60 VDC 30 to 135 VAC or 40 to 100 VDC SW2-4 Output interval of NMEA SW2-4...
  • Page 55 Jumper JP5 Segment Function Setting Power Supply 20 to 45 VAC or 20 to 60 VDC 30 to 135 VAC or 40 to 100 VDC JP5, JP4 (Supply voltage) (Stator voltage) (Rotor voltage) 64P1106 (Gyro type) (Data output port #6) (Data output port #5) (Data output...
  • Page 56 DIP switch/jumper settings and make and model of gyrocompass e l l i a l ∗ ∗ ) - ( ∗ ∗ ) - ( – – ∗ ∗ ) - ( i a l / I I I I I –...
  • Page 57 4.4.4 Setting of gyro heading Set the gyro heading after the gyrocompass is stable. 1. Press [FUNC Quit], [5] and [2] to display the Gyro menu. 5 2 G y r o G y r o : H o l d : O N E n t e r : [ E n t ] Gyro menu 2.

  • Page 58: 9.6K Data Communications

    5. 9.6K DATA COMMUNICATIONS 5.1 Installation The owner of the equipment prepares a PC, running Windows 95 or 98, to run the 9.6K data communication service. This manual describes the setup using Windows 98. 5.1.1 General wiring procedure Turn off the communication unit. Connect the personal computer to the communication unit of the FELCOM 82 by using straight cable with D-sub 9 pins connector (local supply).

  • Page 59: Modem Setup

    5.2.2 Land-to-ship call 1. Contact land station and request they call you over 9.6K data line. 2. When land station calls, confirm that RING is displayed on the PC. 3. Land station disconnects the line. If the call fails try again. Conduct the same call checks with the user’s system.
  • Page 60 2. Click the “Modems” icon to show “Install New Modem” window. If “Modem Property” window appears, click “Add”. Install New Modem window 3. Modem cannot be automatically detected so check “Don’t detect my modem; I will select it from a list”. 4.
  • Page 61 Install New Modem window 8. At “Select the port to use with this modem”, select the port connected to the FELCOM 9. Click “Next>”. Install New modem window 10. The computer now installs the modem driver. When “Your modem has been set up successfully”...

  • Page 62: Dial-Up Setup

    Modems Properties window 12. Click “Close” button to close the menu. 5.4 Dial-up Setup 1. Click the “My Computer” icon and then click the “Dial-Up Net-working” icon. Dial-up Networking window 2. Click the “Make New Connection” icon.
  • Page 63 Make new Connection window 3. In the “Type a name for the computer you are dialing” box, type in a suitable name, for example, INMARSAT. Select “Standard 9600 bps Modem” in the “Select a modem” box. 4. Click “Next>”. 5. Enter party’s telephone number (LES NO. - 00 - country code - area code - phone no.) in the “Telephone number”...
  • Page 64 Make New Connection window 7. Click “Finish”. 8. Confirm that “INMARSAT” icon (or name specified in step 3) is present in the “Dial-up Networking” folder. Dial-up Networking window 9. Click the “INMARSAT” icon. 10. Select “Properties” from the “File” menu.
  • Page 65 INMARSAT window 11. Confirm that the telephone number entered at step 5 appears in the “telephone number” window. 12. Check off “Use country code and area code.” 13. Click “OK” to finish.

  • Page 66: Changing Power Specifications

    6. CHANGING POWER SPECIFICATIONS The equipment is shipped from the factory for use with 100 VAC line or 200 VAC line power. The power specification of the 100 V line set can be changed to 200 VAC line; the 200 V line set cannot.
  • Page 74 A - 8...
  • Page 76 A - 10 004-444-290 16AI-X-9402 CODE NO. CODE NO. CODE NO. CODE NO. TYPE TYPE TYPE TYPE CP16-01701 工事材料表 工事材料表 工事材料表 工事材料表 INSTALLATION MATERIALS 数量 番 号 名　　称 型名／規格 略　　図 用途／備考 Q'TY OUTLINE NAME DESCRIPTIONS REMARKS ﾊﾘﾏｰｸ(INMAR) 16-007-6919-0 LABEL (INMAR) CODE NO.
