6. DATA COMMUNICATION
6.1.2

Connecting up

Installation

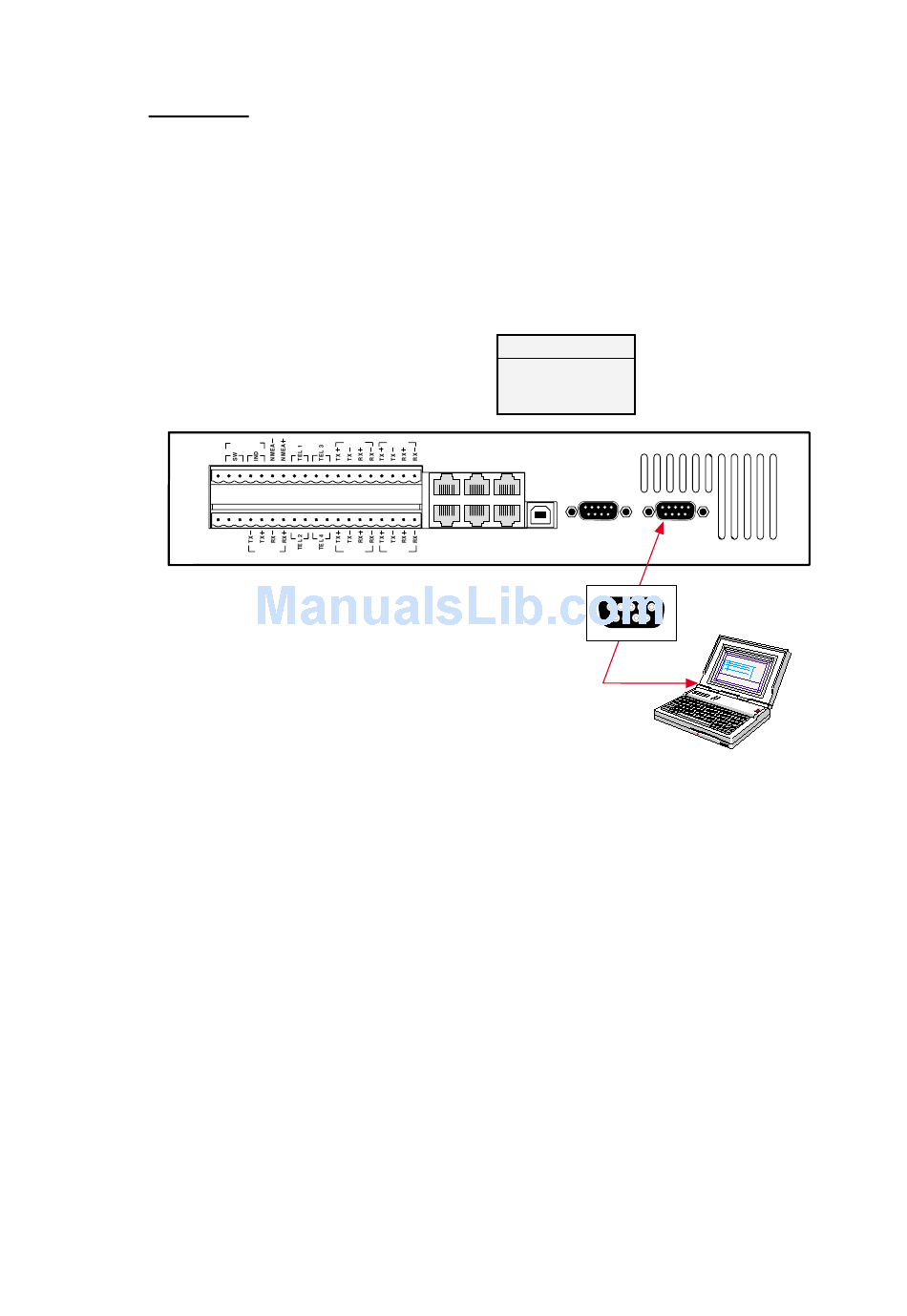

Connect the RS-232 serial cable between the serial port on the PC and the
RS-232 port on the CU.
The default settings are:
Data speed:
Format:
Flow control:
FELCOM 70
6-2
115200 bps
8 data bits, no parity, 1 stop bit
Hardware (RTS/CTS)
SILENCE ISDN ISDN
RS-422 ISDN ISDN
Modem Drivers
Win 2000/XP:
- Std 33.600 bps
ISDN ISDN TEL 4
ISDN ISDN TEL 3 USB RS-232
B
RS-232
A
5 4 3 2 1
9 8 7 6
PC serial port
DTE
