5.9.3

Set diagnostics

Additional system information is displayed when diagnostics is turned On.
See also "5.1 Menu functions".

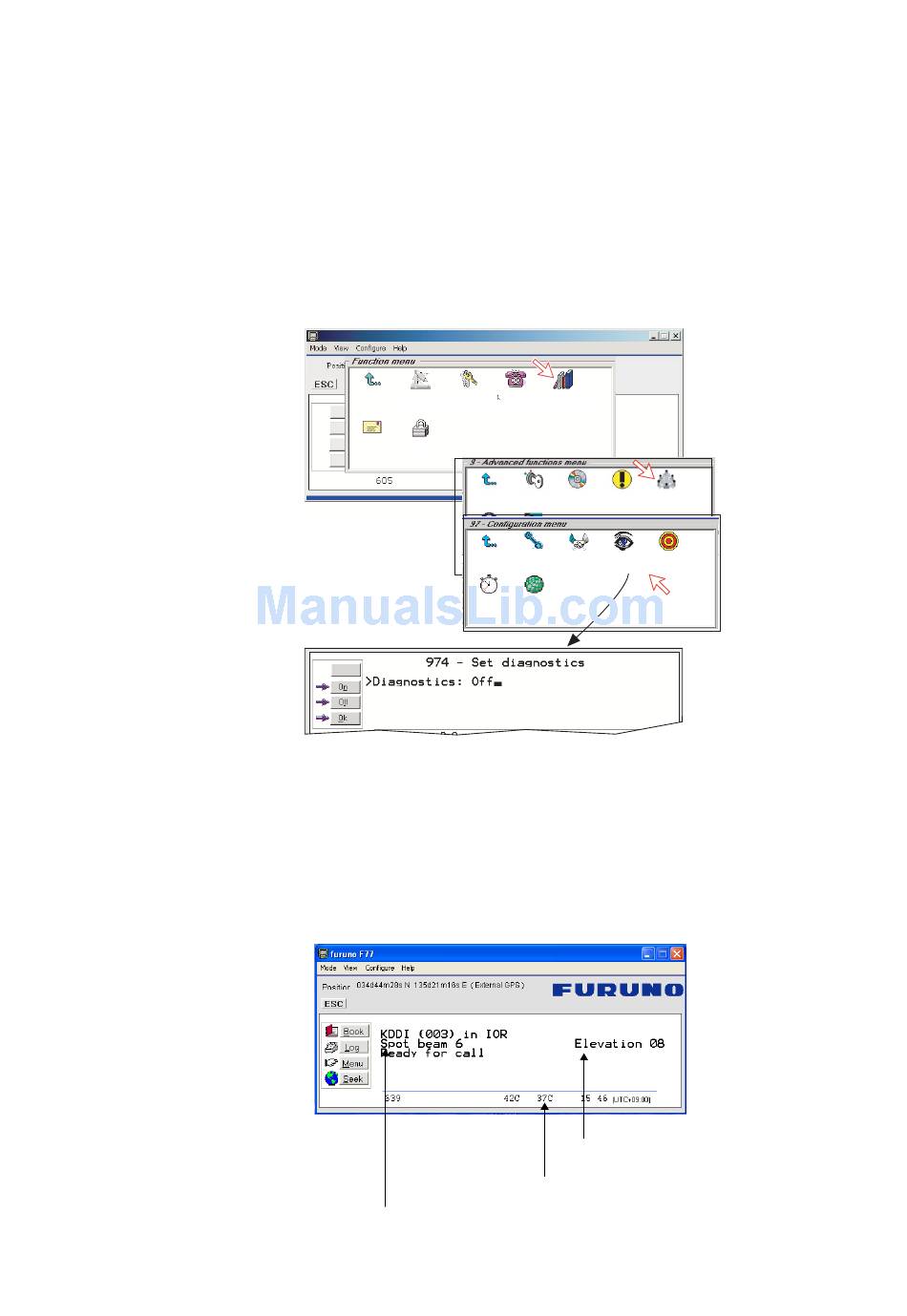

1 Double-click the Set diagnostics icon via the Function menu > Advanced
functions menu > Configuration menu.
2 Click On or Off as required.
When choosing On, the following terms appear.
• Alarm and message icon (menu 9).
• Power supply unit temperature
• Calculated spot beam
• Antenna elevation
1
Exit Menu 1. Set default
Net provider
Mail
2
Calculated spot beam
5. CONFIGURATION FROM PC
2. Set access 4. Phone 9. Advanced
level setup menu functions
1. Access
Exit Menu 4. Alarms
3. Software
control
and messages
updata prep.
Exit Menu 2. Net service 4. Set
1. ISDN
providers diagnostics
configuration
9. Spot Beme
8. Change
Report Method
tone
Antenna elevation
Power supply temparature
7.
Configuration
7. Spot Beam
Report Method
5-19
