5. CONFIGURATION FROM PC
5.9.4

Dual-port USB

The Dual-port USB allows several programs to operate at the same time via a
single USB port. Connect a USB cable between the USB port of the
communication unit and the USB port of PC.
• One channel for data communication
• One channel for control (vtLite)
The default setting is "Single port".
To set the dual port, do as follows.

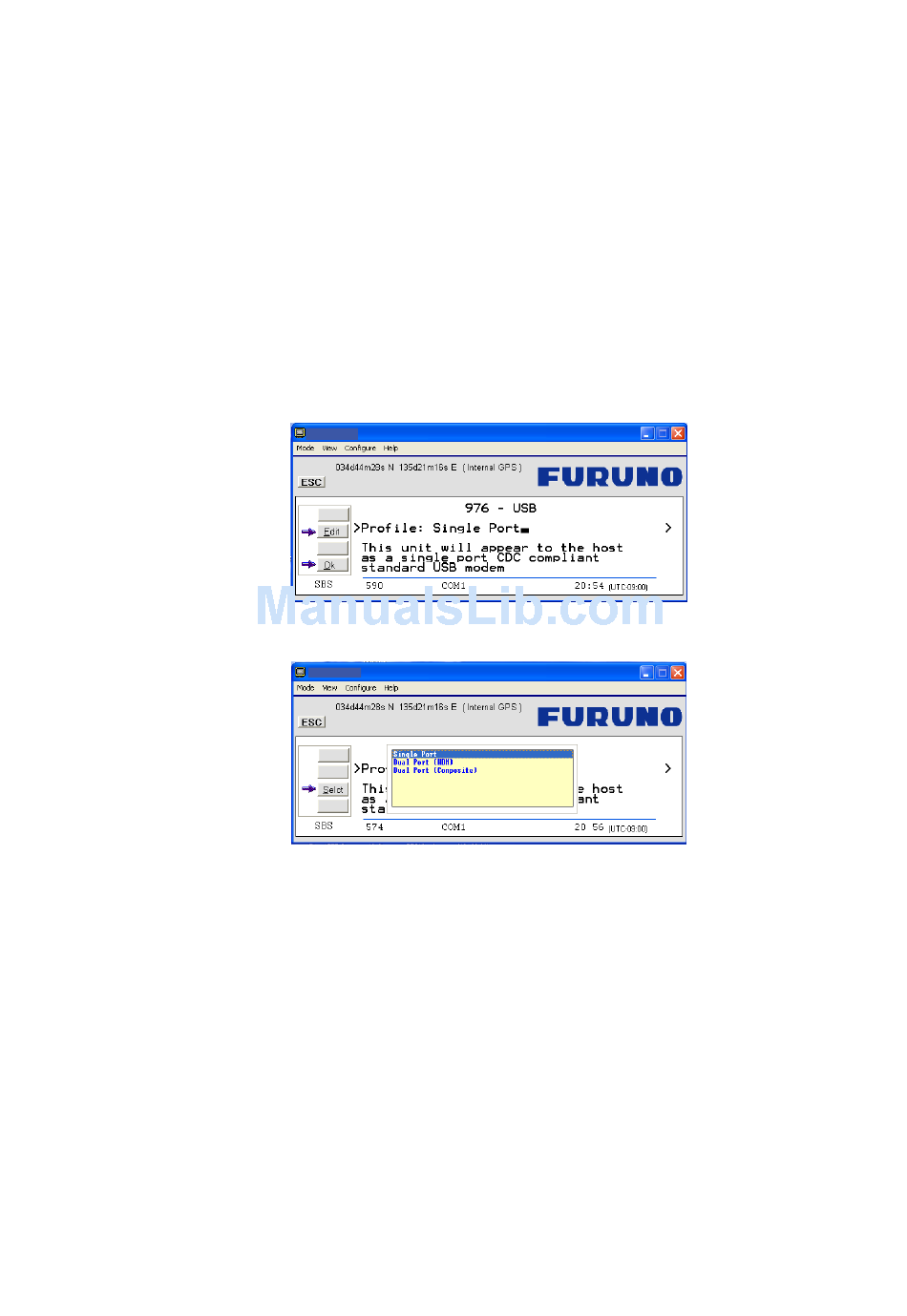

1 Double-click the USB icon via the Function menu > Advanced functions
menu > Configuration menu.
2 Click the Edit button. Three selections are provided.
• Single port: This unit will appear to the host PC as a single port CDC
compliant standard USB Modem.
• Dual port WDM: This unit will appear to the host computer with a profile
matching the Windows dual port device driver.
• Dual port (composite): Not in use.
3 Choose Dual port WDM and click the Select button.
5-20
