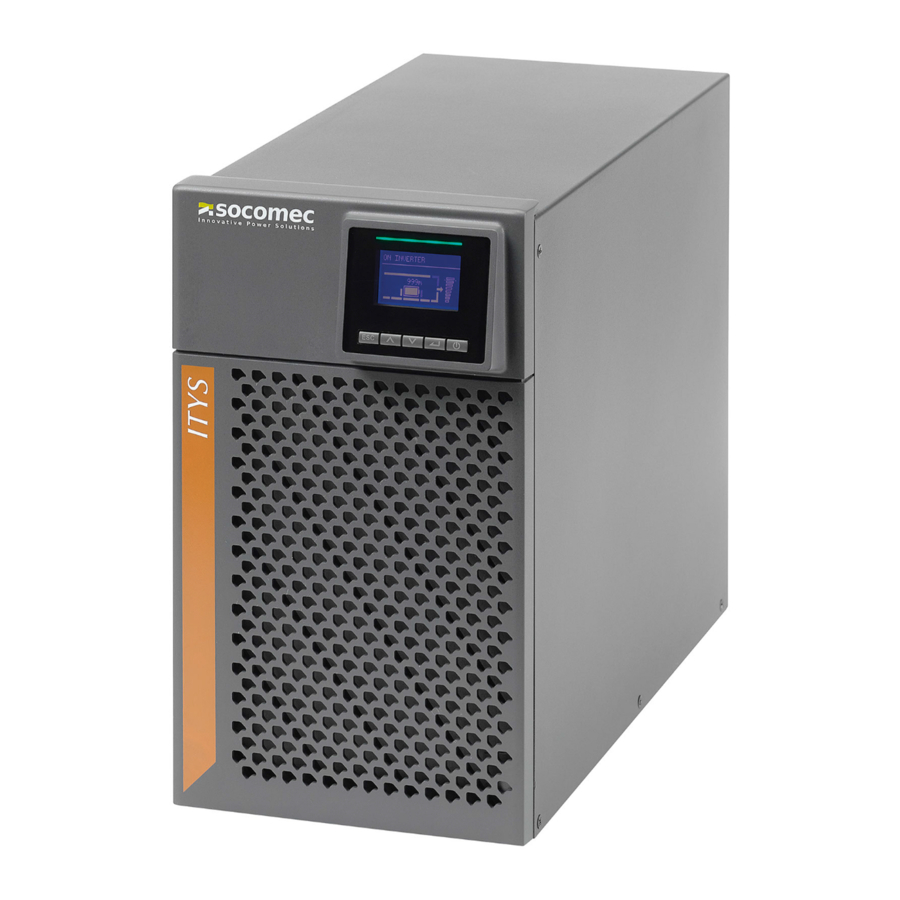

socomec ITYS Installation And Operating Manual

1 - 3 kva
Hide thumbs Also See for ITYS:
Table of Contents

Advertisement

Quick Links

INSTALLATION AND OPERATING MANUAL
EN
ITYS
1 - 3 kVA UPS
www.socomec.com/itys-manuals

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ITYS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for socomec ITYS

Summary of Contents for socomec ITYS

  • Page 1 INSTALLATION AND OPERATING MANUAL ITYS 1 - 3 kVA UPS www.socomec.com/itys-manuals...
  • Page 2 ITYS 1-3 kVA - 551430A - SOCOMEC...
  • Page 3 The reference information on safety is in English. For other languages please contact Socomec or your local distributor. The manufacturer will not be held liable for failure to follow the instructions in this manual which is also available at www.socomec.com...
  • Page 4 Return-to-base warranty is provided: components and labour for repairs supplied free of charge, any products to be replaced must be returned to Socomec or authorised service centres, at the customer’s own risk and expense. The warranty is recognised within national territory. If the UPS is exported out of national territory, the warranty shall be limited to the cover of the parts used to repair the defect.
  • Page 5 Court of Vicenza. Socomec retains the full and exclusive ownership rights over this document. Only a personal right to use the document for the application indicated by Socomec is granted to the recipient of such document. All reproduction, modification or dissemination of this document whether in part or whole and by any manner are expressly prohibited except upon Socomec’s express prior written consent.

  • Page 6: Table Of Contents

    5.4.2. Connecting to other EBM ........32 ITYS 1-3 kVA - 551430A - SOCOMEC...
  • Page 7 9.2. UPS specifications ..........38 ITYS 1-3 kVA - 551430A - SOCOMEC...

  • Page 8: Safety Instructions

    (WEEE). Indicates that the item must not be disposed of in normal household waste but be separately collected and recycled. Environmental Protection Use Period (EPUP). Information, advice, assistance. Refer to the user manual. ITYS 1-3 kVA - 551430A - SOCOMEC...

  • Page 9: Safety Of Persons

    These companies will dismantle and dispose of the various components in accordance with statutory regulations in the country of purchase. • Use the UPS in accordance with the technical specifications indicated in this manual. ITYS 1-3 kVA - 551430A - SOCOMEC...
  • Page 10 Using the product in critical applications could require compliance with statutory regulations and standards, specific local bylaws, or adaptation to SOCOMEC recommendations. For this type of use it is always advisable to contact SOCOMEC beforehand for confirmation regarding the capacity of products to meet required levels of safety, performance and reliability.
  • Page 11 - Do not open or mutilate batteries. Released electrolyte is harmful to the skin and eyes. It may be toxic. - Failed batteries can reach temperatures that exceed the burn thresholds for touchable. ITYS 1-3 kVA - 551430A - SOCOMEC...

  • Page 12: Product Safety

    • If the system must be stored prior to installation, storage must be in a dry place. • The admissible storage temperature range is -25°C to +55°C without batteries, 0°C to +40°C with batteries. • This UPS can be used in TN/IT/TT power systems. ITYS 1-3 kVA - 551430A - SOCOMEC...

  • Page 13: Special Precautions

    UPS to maintain an identical level of performance and safety. Note: this is a category C2 UPS product. In a residential environment, this product may cause radio interference, in which case the user may be required to take additional measures. ITYS 1-3 kVA - 551430A - SOCOMEC...

  • Page 14: Introduction

    • Higher charger current for long backup mode: 8A, adjustable from 2A to 8A via the LCD display. • EBM quantity auto detection. • Communication ports: RPO, Dry in, Dry out, intelligent slot, USB, RS232. • Dot-matrix LCD, in multi-languages. • ECO Mode. • Battery-free start. ITYS 1-3 kVA - 551430A - SOCOMEC...

  • Page 15: Environmental Protection

    (WEEE). Battery The product contains lead-acid batteries that must be processed according to applicable local regulations concerning batteries. The battery may be removed to comply with regulations and in view of correct disposal. ITYS 1-3 kVA - 551430A - SOCOMEC...

  • Page 16: Recycling

    By separating waste electrical and electronic equipment, you will help reduce the volume of waste sent for incineration or land-fills and minimise any potential negative impact on human health and environment. ITYS 1-3 kVA - 551430A - SOCOMEC...
  • Page 17 Certain assemblies inside this product (for example, assemblies that contain a battery) may have an EPUP which is lower than the EPUP on this product. ITYS 1-3 kVA - 551430A - SOCOMEC...

  • Page 18: Product Overview

    Tower 36V EBM ITY3-EX030HB Tower 72V EBM 428 x 192 x 322 ITY3-EX030B Tower 72V EBM Note: the weights in this table are for reference only, please see the labels on the carton for details. ITYS 1-3 kVA - 551430A - SOCOMEC...

  • Page 19: Rear Panels

    3.2. Rear panels • IEC 2K/2KS 1K/1KS ITYS 1-3 kVA - 551430A - SOCOMEC...
  • Page 20 • AU 2K/2KS/3K 1K/1KS • EBM 1. USB 5. Slot card box 2. EBM auto detection (RJ45) 6. EBM Connector 3. RPO/Dry in/Dry out 7. Output Socket/Terminal 4. RS232 8. Input Socket/Terminal ITYS 1-3 kVA - 551430A - SOCOMEC...

  • Page 21: Lcd Panel

    Load supplied with warning  Yellow/Off Maintain request/in progress  Yellow/Red Load supplied, but no longer protected  Load not supplied due to alarm  Red/Off Load not supplied, but the output will stop in a few minutes  Yellow/Red/ No communication  green ITYS 1-3 kVA - 551430A - SOCOMEC...
  • Page 22 1 beep/ 2 minutes Load supplied on bypass  1 beep/ 4 seconds Load supplied on battery  1 beep/ 1 second  Alarming  1 beep/ 0.5 seconds  Overload warning  Continuous beeping A fault has occurred ITYS 1-3 kVA - 551430A - SOCOMEC...

  • Page 23: Lcd Description

    Off: no output 8 steps for 0%-100% load Load status Top bar flashing: UPS is overloaded On: general alarm Alarm icon Off: no alarm Eco mode Mode icon Standby mode No icon, normal mode ITYS 1-3 kVA - 551430A - SOCOMEC...

  • Page 24: Display Functions

    Reset fault state Clear active fault Reset history Clear events and faults Restore factory set Restore to default factory settings PARAMETERS Refer to chapter 3.6 User settings SERVICE [Product name], [Serial number], [firmware version] ITYS 1-3 kVA - 551430A - SOCOMEC...

  • Page 25: User Settings

    ES: enabled 60 min. Date / Time dd/mm/yyyy hh:mm 01/01/2020 00:00 LCD contrast 0 - 100% Note: if the UPS is used in IT neutral systems, the site wiring fault function should be disabled. ITYS 1-3 kVA - 551430A - SOCOMEC...

  • Page 26: Communication

    The Dry in function can be configured (see Settings > Dry in) DRY IN COMMENTS Connector type / 16 AWG Maximum wires External breaker specification 60 V DC/30 V AC 20 mA max Dry Out Dry IN Dry IN ITYS 1-3 kVA - 551430A - SOCOMEC...

  • Page 27: Web/Snmp Card (Option)

    With this card installed, the UPS can be connected directly to a LAN (RJ45 ethernet) and controlled remotely from a WEB browser using TCP/IP protocol. Reference should be made to the relevant literature for a full description of functionality. ITYS 1-3 kVA - 551430A - SOCOMEC...

  • Page 28: Installation

    2. Input cable (except for 3KS model) models (only for "S" model) 3. Output cable (only for IEC models) 7. English manual, safety instruc- 4. RS232 cable tions and multilingual safety label 5. USB cable guide ITYS 1-3 kVA - 551430A - SOCOMEC...

  • Page 29: Installing The Unit

    2. Connect the loads to the UPS using the cables. Note: the UPS charges the battery as soon as it is connected to the AC- power source, even if the ON/OFF button is not pressed. ITYS 1-3 kVA - 551430A - SOCOMEC...

  • Page 30: Required Cable Cross-Sections

    5.3.2. Recommended upstream protection UPS MODEL UPSTREAM CIRCUIT BREAKER Tower 3KS C curve-20A 2-pole circuit breaker To UPS Normal Input source and / or Bypass AC source ITYS 1-3 kVA - 551430A - SOCOMEC...

  • Page 31: Connecting The Ebm(S)

    A small amount of arcing may occur when connecting an EBM to the UPS. This is normal and will not harm personnel. Up to 4 EBMs can be connected to the UPS. 5.4.1. Connecting to standard EBM • 1K • 2K/3K ITYS 1-3 kVA - 551430A - SOCOMEC...

  • Page 32: Connecting To Other Ebm

    5.4.2. Connecting to other EBM Caution! : Requires SERVICE PERSONNEL to install the EBM when using the EBM cable shown below. ITYS 1-3 kVA - 551430A - SOCOMEC...

  • Page 33: Operation

    Before using this feature, the UPS must have been powered by mains power with output enabled at least once. Battery start can be disabled. Refer to page 25 “3.6. User settings - Cold start”. UPS in Battery mode 1 sec 3 sec ITYS 1-3 kVA - 551430A - SOCOMEC...

  • Page 34: Ups Shutdown

    6.3. UPS shutdown Disconnect input cable, UPS Shutting off 4 sec 6.4. Operating mode Line mode Battery mode Bypass mode ECO mode Standby mode UPS OFF ITYS 1-3 kVA - 551430A - SOCOMEC...

  • Page 35: Ups Maintenance

    UPS to the mains power supply. It is recommended that the batteries are charged 48 hours after long-term storage. If the batteries have not been charged over a six-month period, do not use them. Contact your service representative. ITYS 1-3 kVA - 551430A - SOCOMEC...

  • Page 36: Troubleshooting

    RPO Power Off" notice, deactivate the RPO input. connector is missing. Emergency power off RPO is active Check the RPO connector status Fan fault Fan abnormal Check if the fan is running normally ITYS 1-3 kVA - 551430A - SOCOMEC...
  • Page 37 Check the output of UPS and loads, make Output short circuit Output short circuit occurred sure the short circuit is removed before turning on again. ITYS 1-3 kVA - 551430A - SOCOMEC...

  • Page 38: Specifications

    BYPASS MODE NORMAL MODE/BATTERY MODE MODEL SHORT-CIRCUIT SHORT-CIRCUIT PROTECT TIME PROTECT TIME CURRENT (RMS) CURRENT (RMS) 1K/1KS 550A 2.8ms 100ms 2K/2KS 698.6A 35.6A 100ms 3K/3KS 698.6A 100ms ITYS 1-3 kVA - 551430A - SOCOMEC...
  • Page 39 EN IEC 62040-3 Manufacture ISO 9001:2015 / ISO 14001:2015 (1) In free running mode and in converter mode, UPS needs to be de-rated to 60% capacity (rated output power and maximum charging current). ITYS 1-3 kVA - 551430A - SOCOMEC...
  • Page 40 MAIN OFFICE, CONTACT: SOCOMEC SAS 1-4 RUE DE WESTHOUSE 67235 BENFELD, FRANCE www.socomec.com 551430A...
