Appendix
B
Cable Specifications
Pinouts for Cordsets with Flying Leads
Microscan offers two flying lead cordsets for use in hardware configurations:
• 61-000166-02 (Plug, Screw-On)
• 61-000167-02 (Socket, Screw-On)

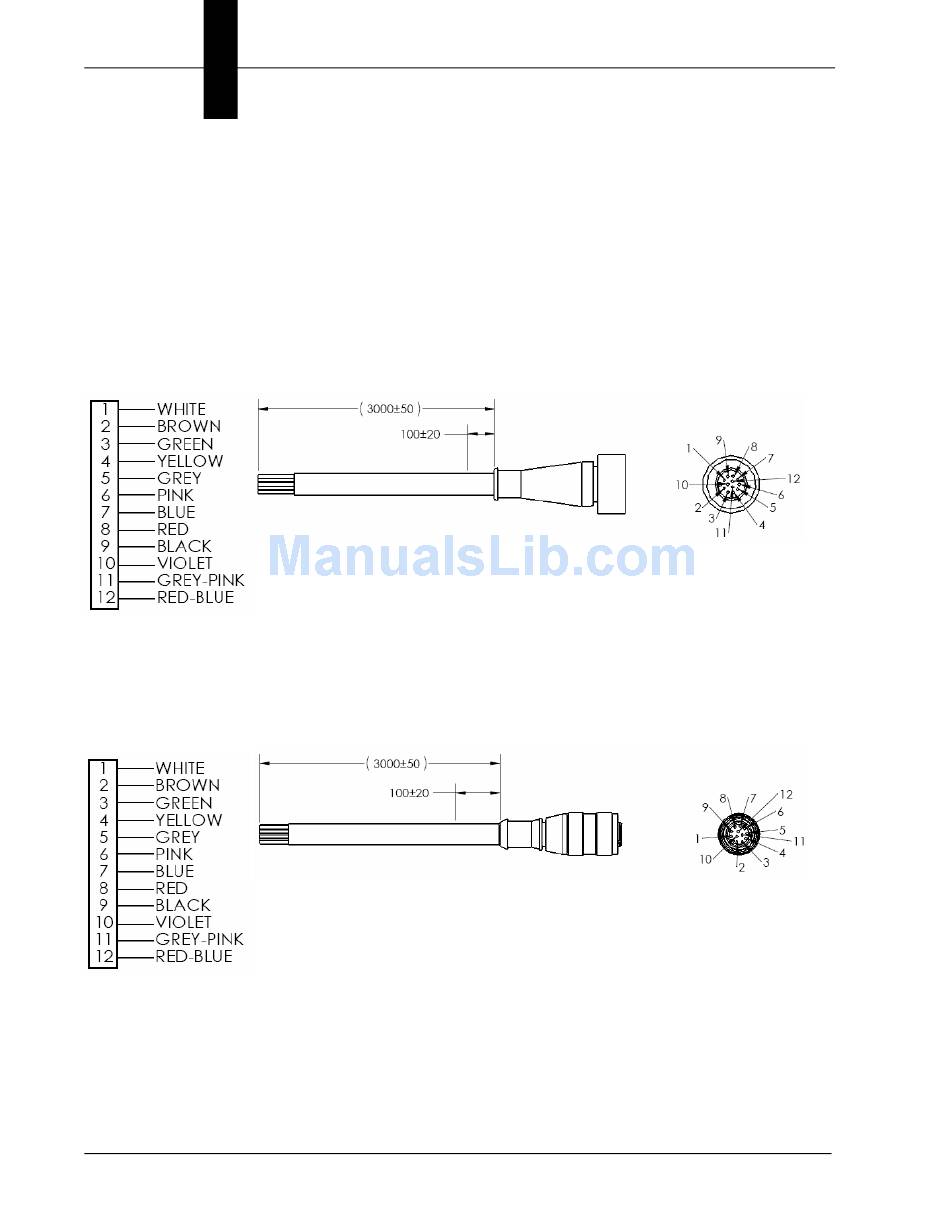

The diagrams below show the correspondence of wire colors to pins.
61-000166-02 – M12 12-Pin Plug to Flying Leads
61-000166-02 connects to Connector B (Serial) and QX-1 Connector 2.
61-000167-02 – Cordset, M12 12-Pin Socket to Flying Leads
61-000167-02 connects to Connector A and QX-1 Connectors 1 and 3.
B-10
MicroHAWK MV-20 / MV-30 / MV-40 Smart Camera Guide
