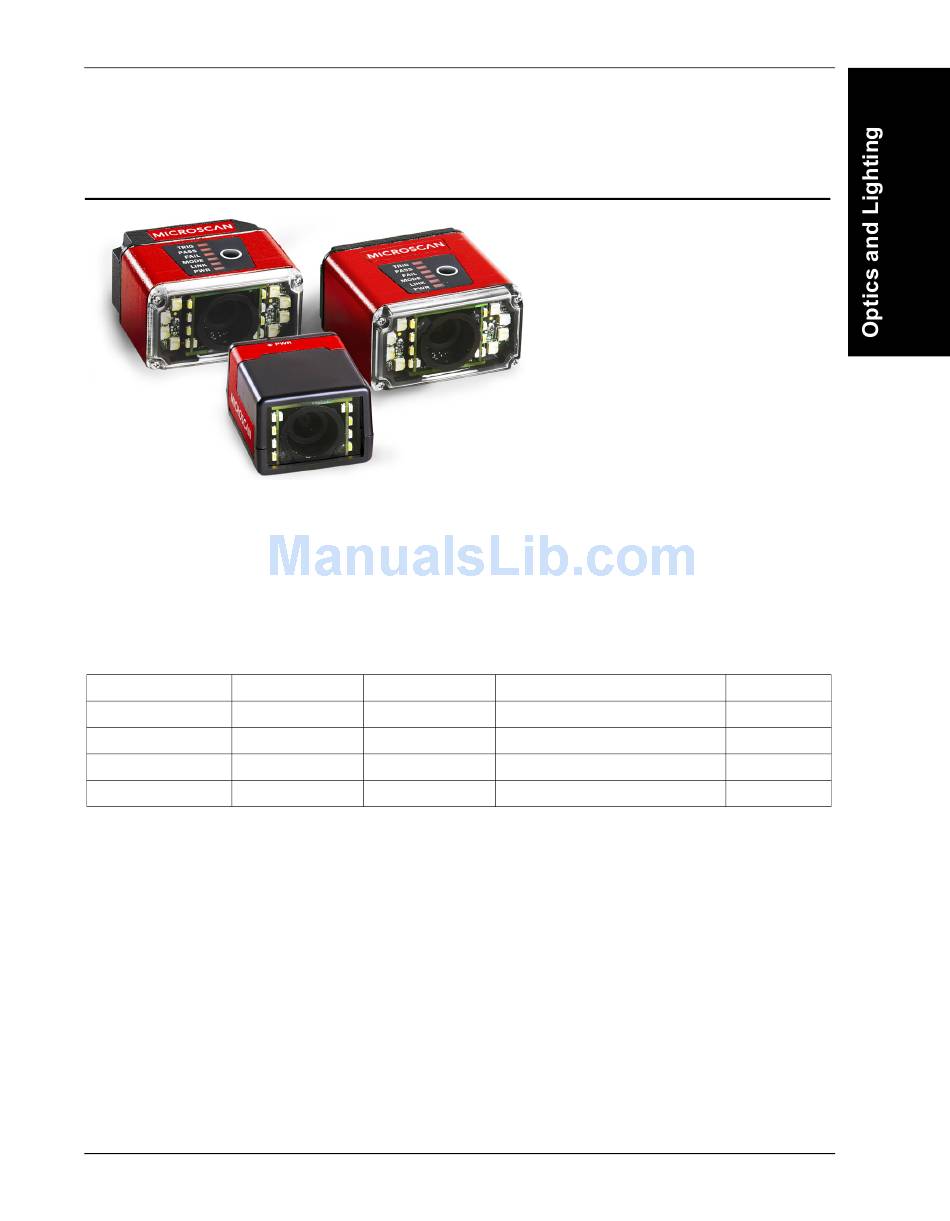

Illumination

Inner LEDs: 4 white, 4 red (625 nm nominal)
Outer LEDs: 8 high-output white or red (617 nm nominal)
Note: MV-20 only has inner LEDs. MV-30 and MV-40 have both inner and outer LEDs.
Options are available for IR and blue outer LEDs.
LED Modules
Description Left P/N
Expansion, Red 43-9500055-01
Expansion, White 43-9500055-02
Expansion, IR 43-9500055-03
Expansion, Blue 43-9500055-04
MicroHAWK MV-20 / MV-30 / MV-40 Smart Camera Guide
Right P/N LED P/N
43-9500056-01 LA E65F-CAEB-24-1
43-9500056-02 NFSW036BLT b3-b6/P9-P12
43-9500056-03 SFH 4259S
43-9500056-04 LB E63C-T2V2-35-34
4
Illumination
Wavelength
617 nm
N/A
850 nm
469 nm
4-5
