B
MV-30 Cables

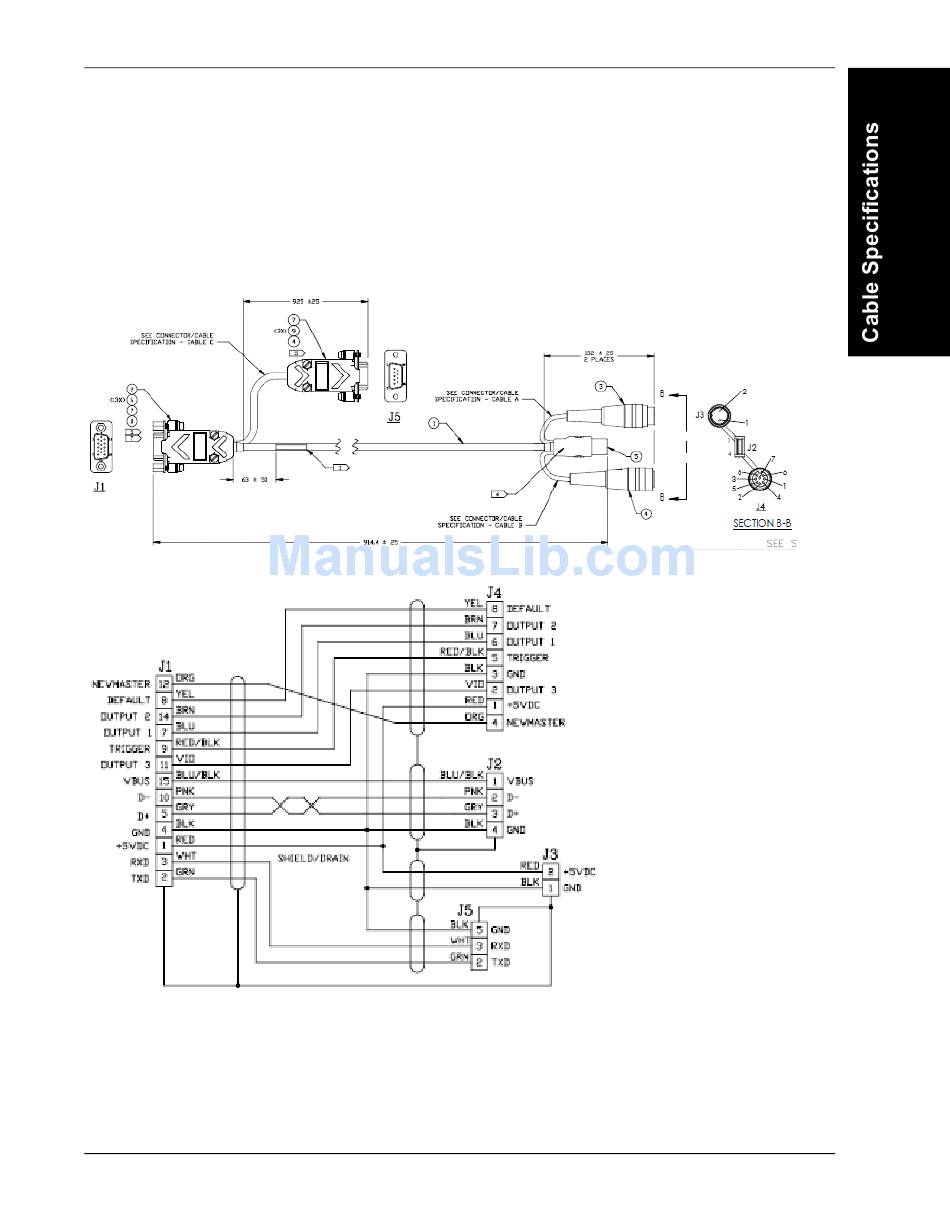

61-9000102-01 DB15 to USB/RS-232 Triggered Cable
The 61-9000102-01 DB15 to USB/RS-232 triggered cable is a cable with one end a 9-pin
(J5) and a 15-pin D-Sub socket connector (J1), and the other end a USB (J2) extended
with a 2-pin socket (J3) and an 8-pin socket (J4) connector. This cable is used for RS-232
applications with I/O for line stop or result indications.
MicroHAWK MV-20 / MV-30 / MV-40 Smart Camera Guide
B-7
