Appendix
B
Cable Specifications
MV-40 Cables

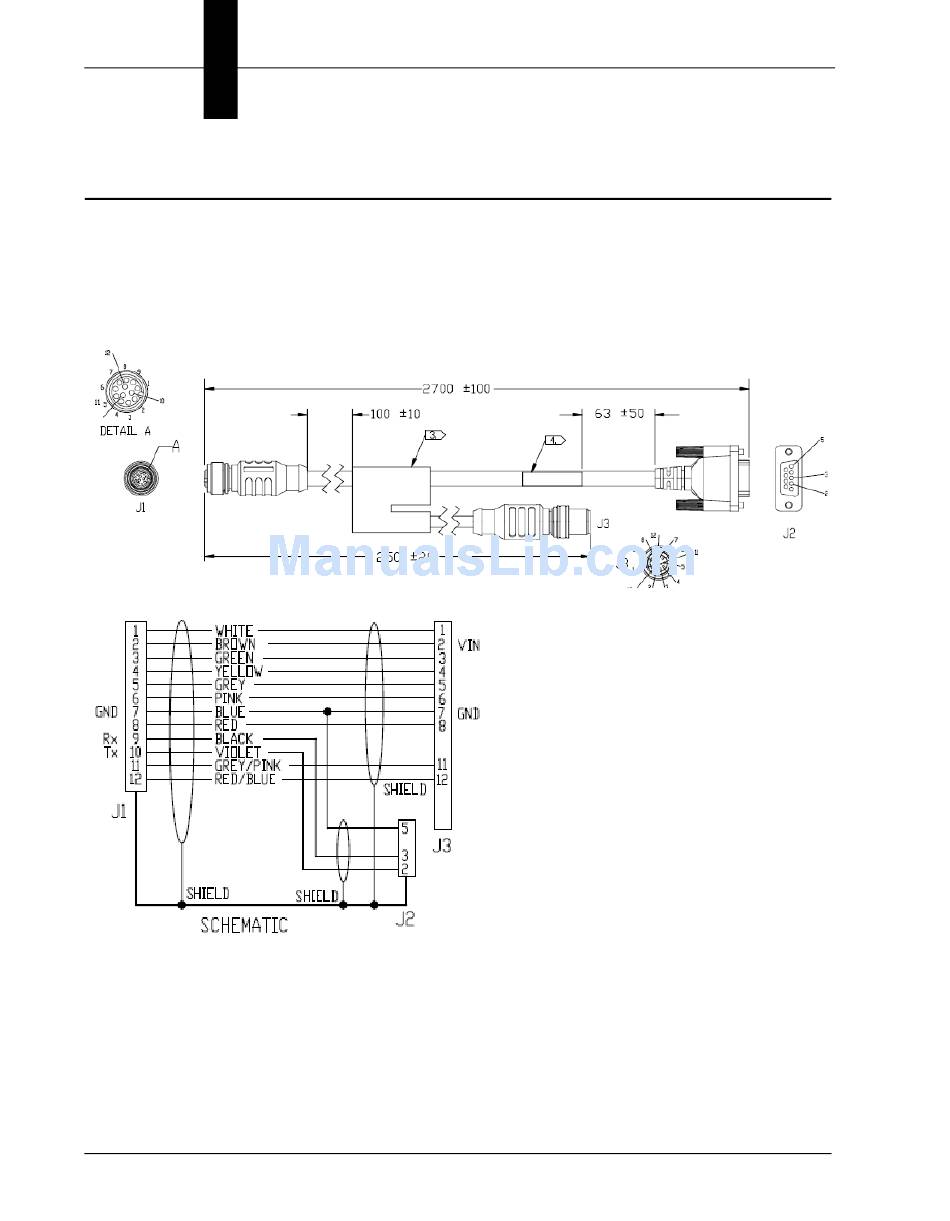

61-9000054-01 M12 12-Pin Socket to 9-Pin Socket and M12 Plug
The 61-9000054-01 M12 12-pin socket to 9-pin socket and M12 plug cable is a cable with
one end a 12-pin socket connector (J1) and the other end a 9-pin socket (J2) and an M12
plug (J3). This cable replaces common cord set, QX-1 and RS-232 cable with a single
cable option. It is used for both RS-232 and WebLink simultaneously.
B-8
MicroHAWK MV-20 / MV-30 / MV-40 Smart Camera Guide
