MicroHAWK MV-40 External Illumination Control and Wiring

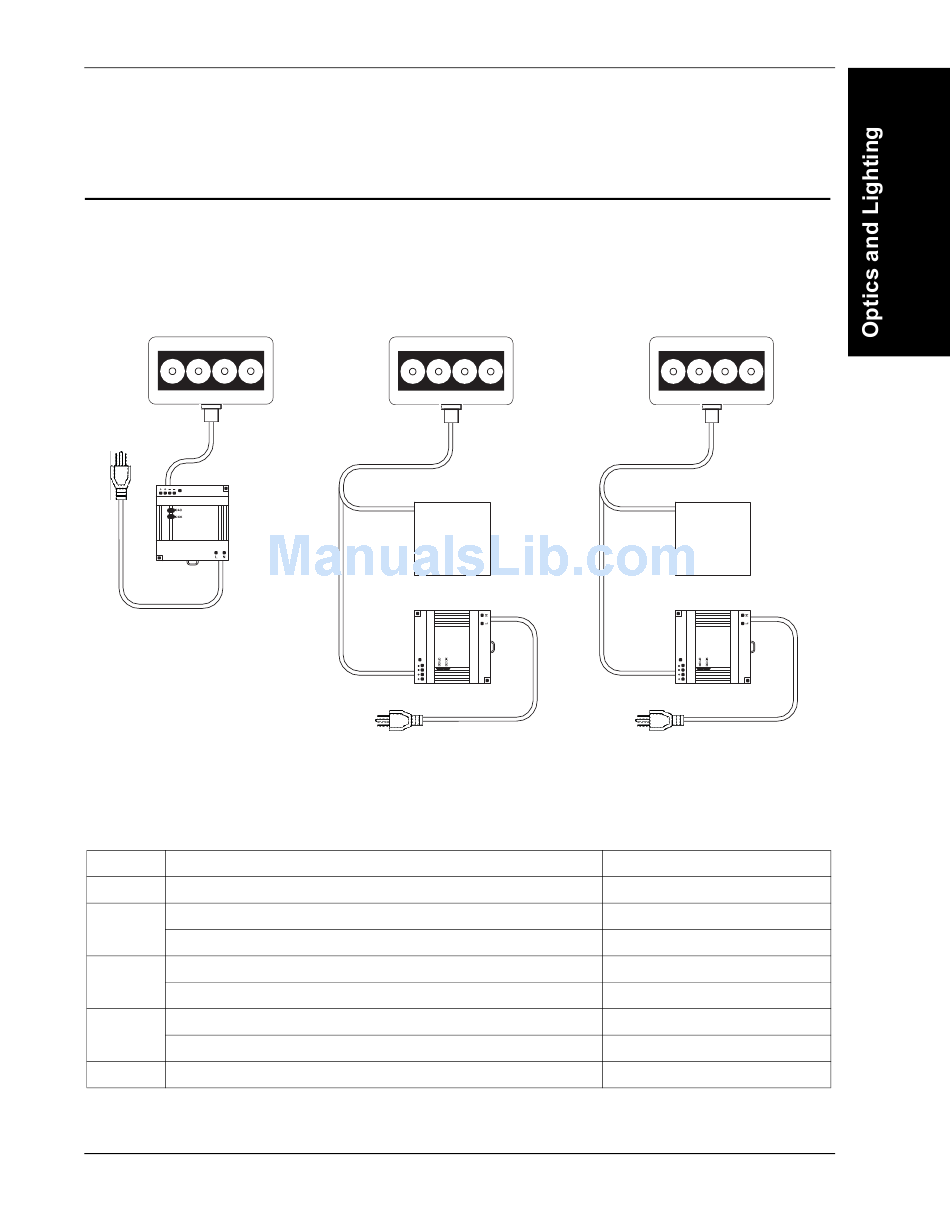

The MicroHAWK MV-40 Smart Camera supports external lighting with Microscan's
NERLITE Smart Series lights. The diagrams below demonstrates how the camera and
light can be configured. The light is controlled using the Lighting control in the Camera
configuration settings of AutoVISION software.
1
3
2
Figure A
MAX Series Illuminator
with power supply
Item Description
1 MAX Series Lights
Power Supply DSP100 24VDC 4.2A DIN Mount
2
Power Supply DSP60 24VDC 2.5A DIN Mount
Cable, 5P M12 Socket To Flying Leads, 3M
3
Cable, 5P M12 Socket To Flying Leads, 5M
Cable, 5P M12 Plug To 5P M12 Socket, 1M
4
Cable, 5P M12 Plug To 5P M12 Socket, 3M
5 Cable, Power Smart Series to QX-1
MicroHAWK MV-20 / MV-30 / MV-40 Smart Camera Guide
MicroHAWK MV-40 External Illumination Control and Wiring
1
3
Customer
supplied
signal source
2
Figure B
MAX Series Illuminator with
customer supplied dimming
or on-off signal source
1
3
Customer
supplied
signal source
Figure C
MAX Series Illuminator
with customer supplied
strobe trigger
signal source
Part Number
NER-011660XXXG
97-000006-01
NER-011504100
61-000186-01
61-000187-01
61-000184-01
61-000185-01
61-000204-01
4
4-7
