Microscan MicroHAWK MV-20 Manual page 29

MV-30
Note: The numbers in the diagram correspond to the numbers in the
and Accessories table.
• Mount the camera securely in its camera stand (not supplied).
• Mount the camera as required by the application.
• Connect the integrated corner-exit cable to the MicroHAWK MV-30.
• Connect the accessory USB cable to the integrated corner-exit cable.
• Connect the USB Type A side of the USB cable to the host.
• Connect the power cable into the power source.

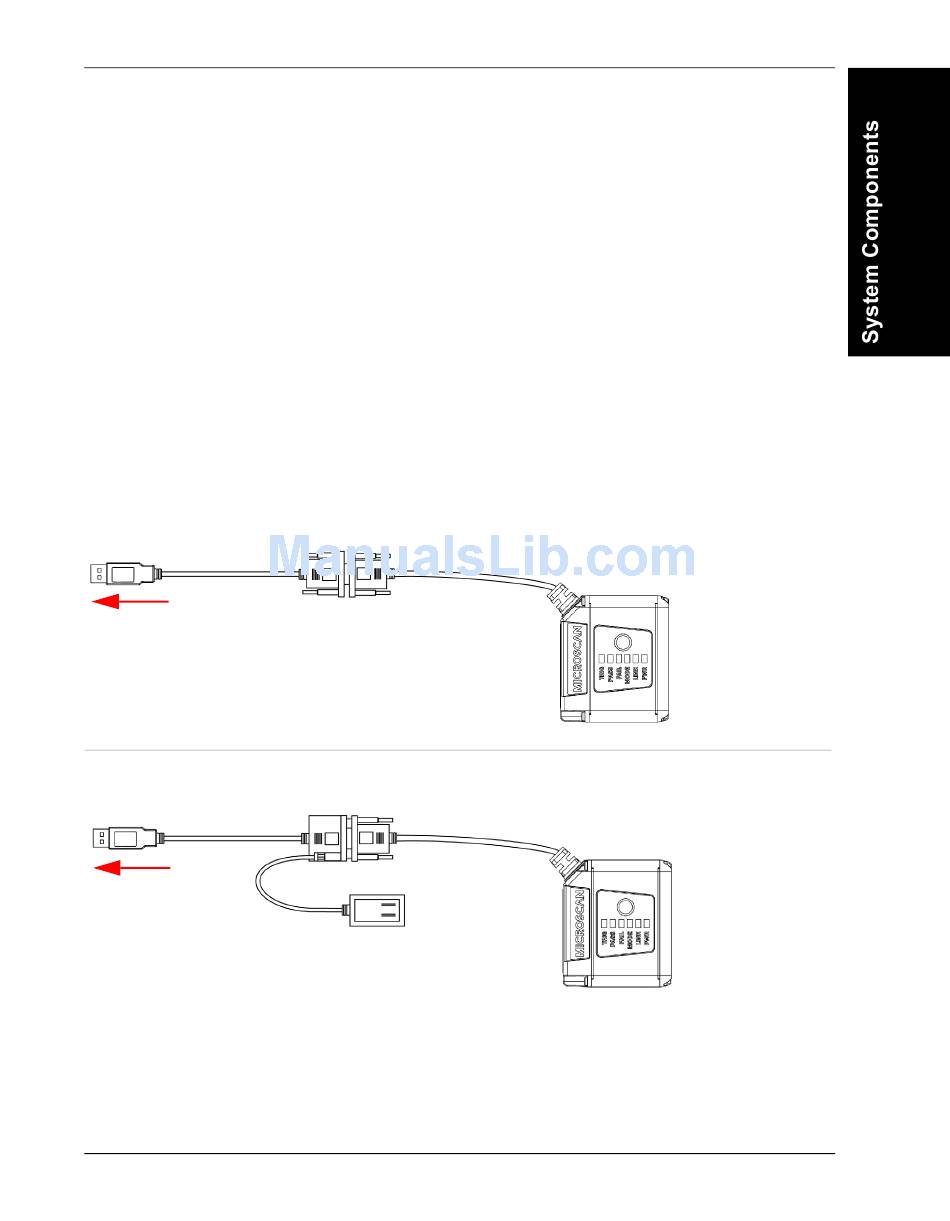

MicroHAWK MV-30 with DB15 to BUS Power USB Type A
Accessory USB
Cable to Host
4
To Host
Note: BUS-powered cable delivers reduced illumination –
approximately 30% less brightness.
MicroHAWK MV-30 with DB15 to Ext. Power/USB Type A
Accessory USB
Cable to Host
9
To Host
MicroHAWK MV-20 / MV-30 / MV-40 Smart Camera Guide
Integrated
Corner-Exit
Cable
Integrated
Corner-Exit
Cable
6
Power Supply
Cabling Configurations
Hardware Components
1
1
2
2-13
