Chapter 2
System Components

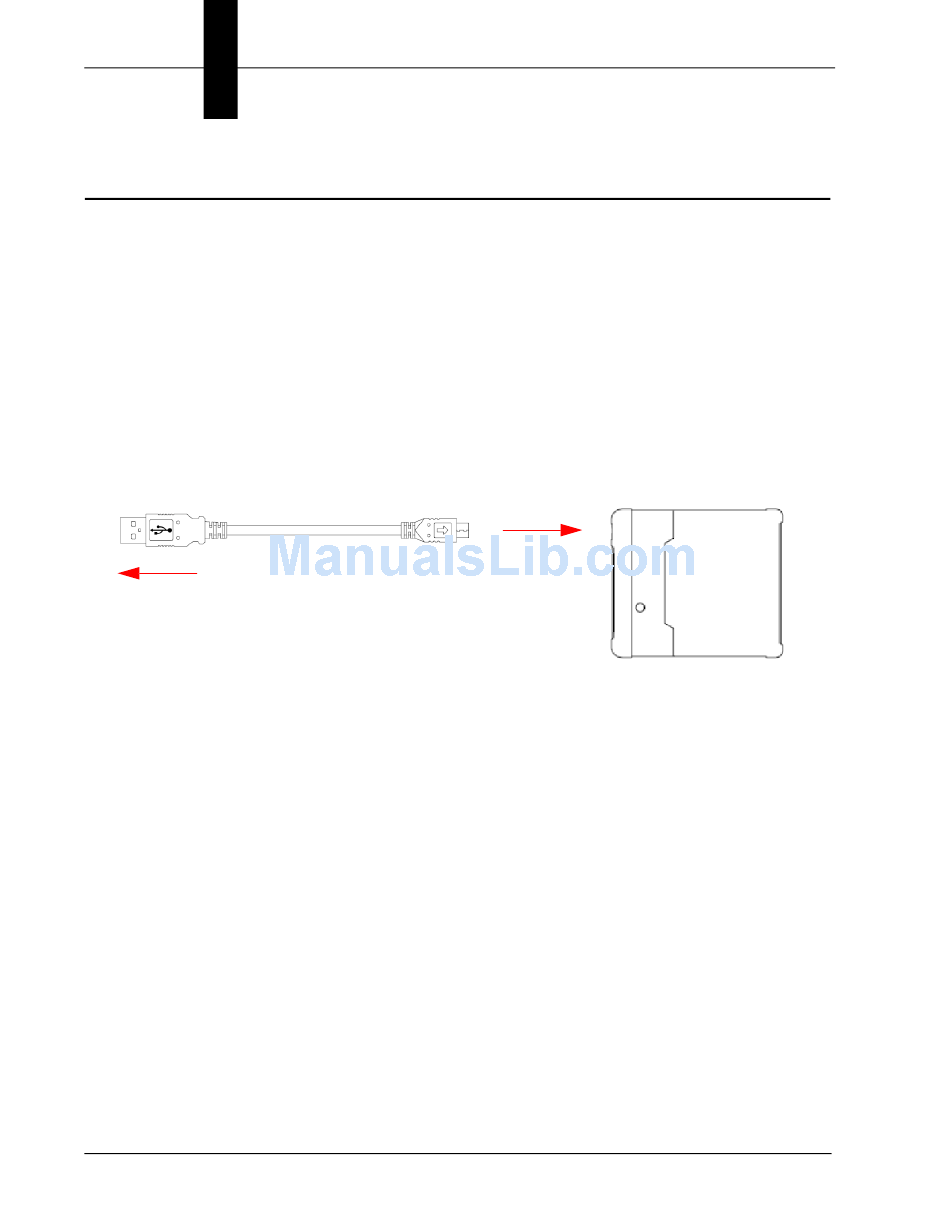

Cabling Configurations

MV-20
Note: The numbers in the diagram correspond to the numbers in the
and Accessories table.
• Mount the camera securely in its camera stand (not supplied).
• Mount the camera (as required by the application.
• Connect the Micro-USB Type B side of the USB cable to the MicroHAWK MV-20.
• Connect the USB Type A side of the USB cable to the host.
USB Type A Plug
To Host
MV-20 Power Requirements
The MicroHAWK MV-20 Smart Camera is a USB 2.0 bus-powered device. The camera
is a high-powered device, and the host must be capable of supplying up to five unit loads
(500 mA).
2-12
Micro-USB
Type B Plug
2
MicroHAWK MV-20 / MV-30 / MV-40 Smart Camera Guide
Hardware Components
