Appendix A
Connector Pinouts
MV-40 Connector

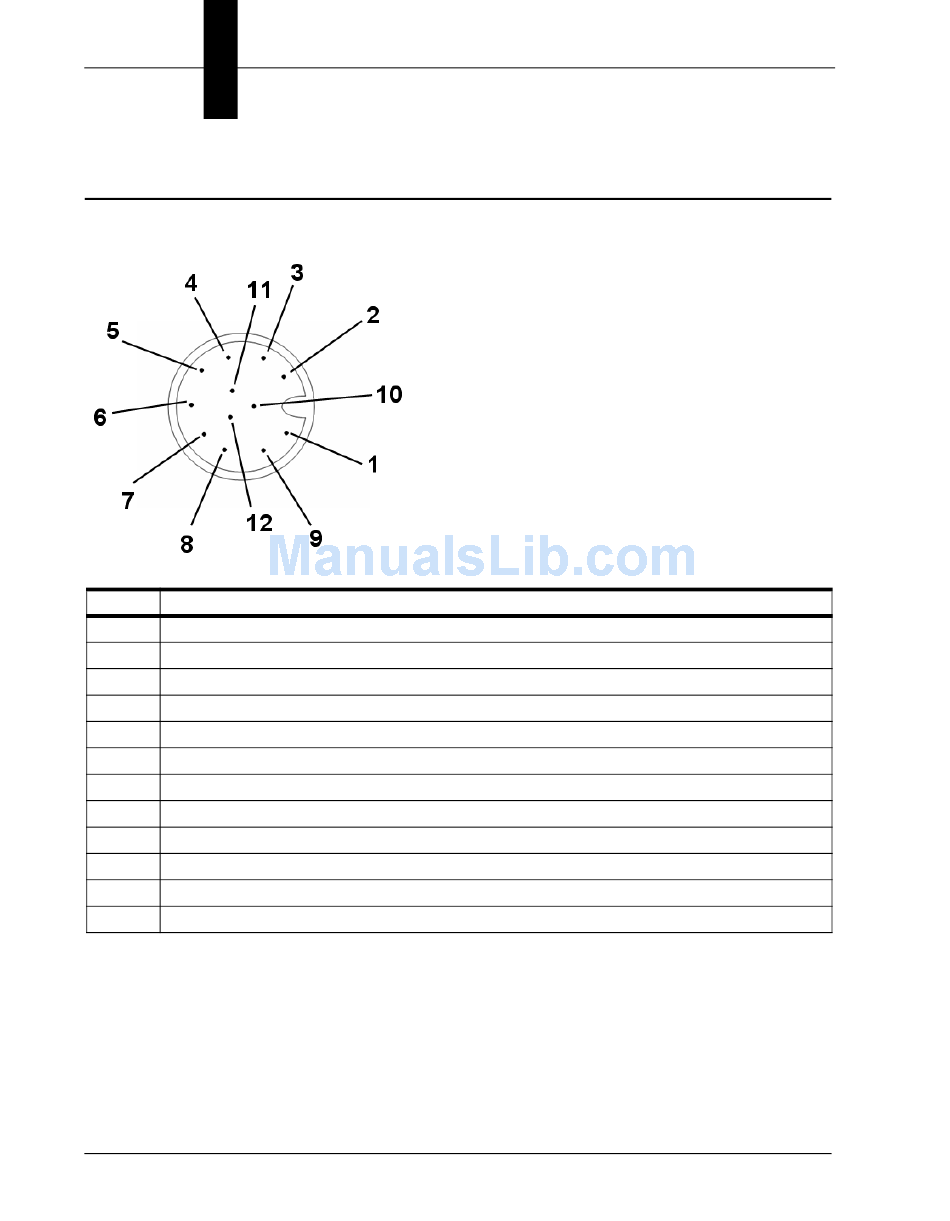

Connector A – M12 12-Pin Plug – Power, I/O, and Serial
Pin Function
1 Trigger
2 Power
3 Default
4 Input 1, New Master
5 Output 1
6 Output 3
7 Ground
8 Input Common
9 RS-232 (Host RxD)
10 RS-232 (Host TxD)
11 Output 2
12 Output Common
A-4 MicroHAWK MV-20 / MV-30 / MV-40 Smart Camera Guide
