Setting Up a Job in AutoVISION
3. Edit the Job in AutoVISION

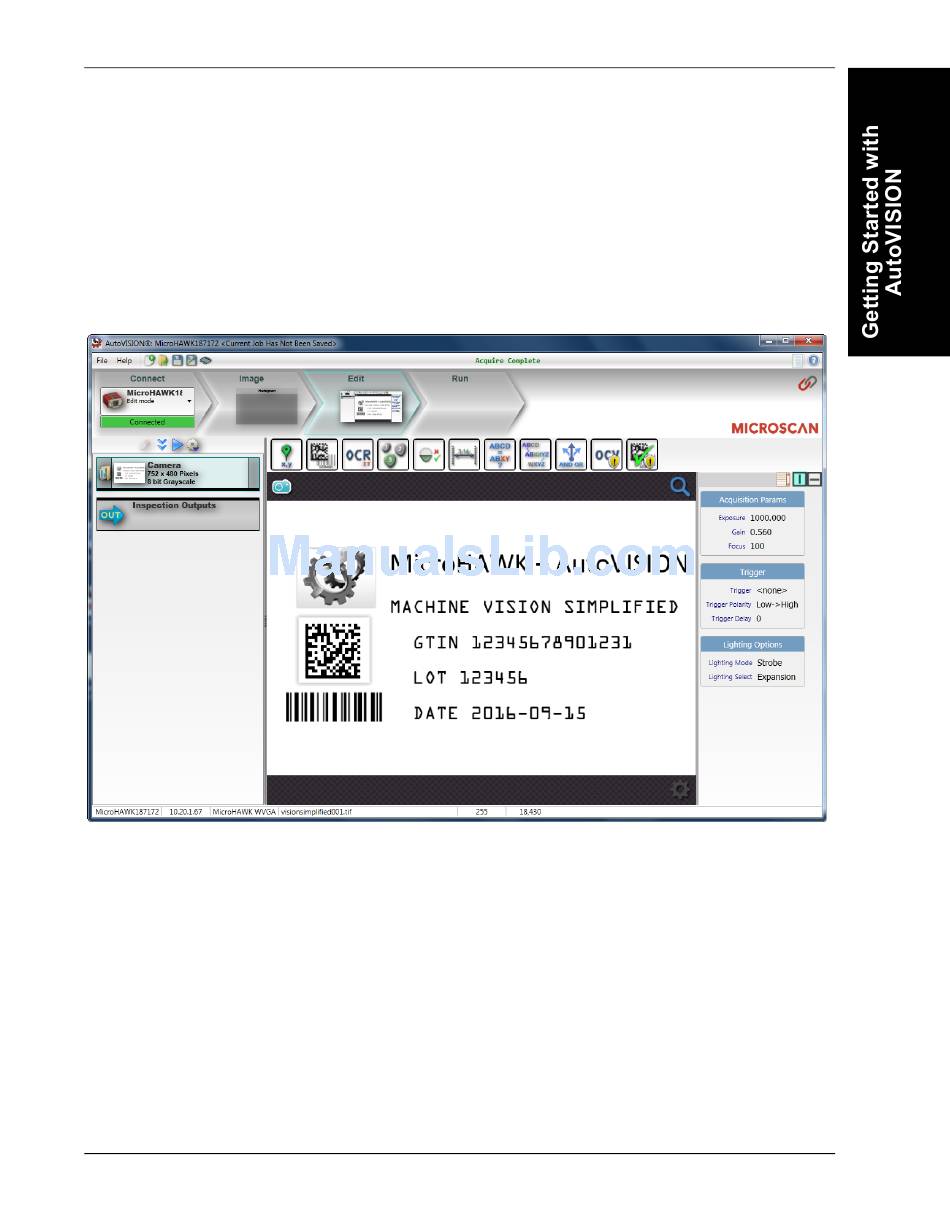

After you have created a new job, loaded a job from your PC, or uploaded a job from the
camera, you will proceed to the Edit view to refine your machine vision job. The Camera
parameters below the captured image allow you to set Gain, Exposure, Focus, Trigger,
and Lighting. Inspection Outputs options allow you to connect your job to the outside
world. This is also the view where you can add multiple tools to the job. The tool icons are
located above the main view area.
