Microscan MicroHAWK MV-20 Manual page 55

Smart camera
Hide thumbs Also See for MicroHAWK MV-20:
Table of Contents

Advertisement

MicroHAWK MV-40 with QX-1 Interface Device
1
4
Common
(12-Pin
Plug to
12-Pin
Socket)
2
5 or 6
To
To
Power
Trigger
Supply

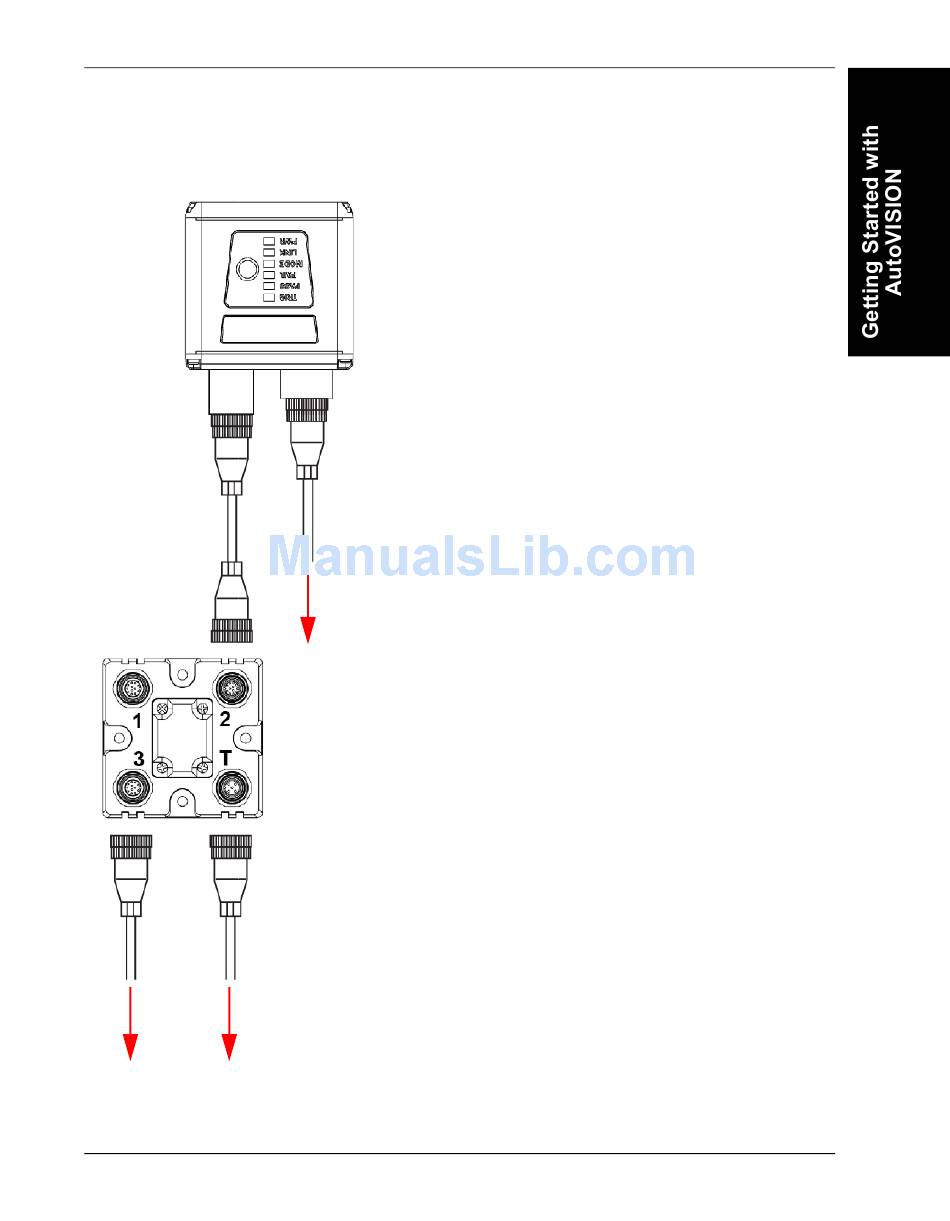

MicroHAWK MV-20 / MV-30 / MV-40 Smart Camera Guide
5
To Host
(Ethernet
8-Pin Plug
to RJ45)
3
See Appendix A,
for MicroHAWK pin assignments.
Setting Up a Job in AutoVISION
Connector
Pinouts,
3
3-3
