Chapter
4
Optics and Lighting

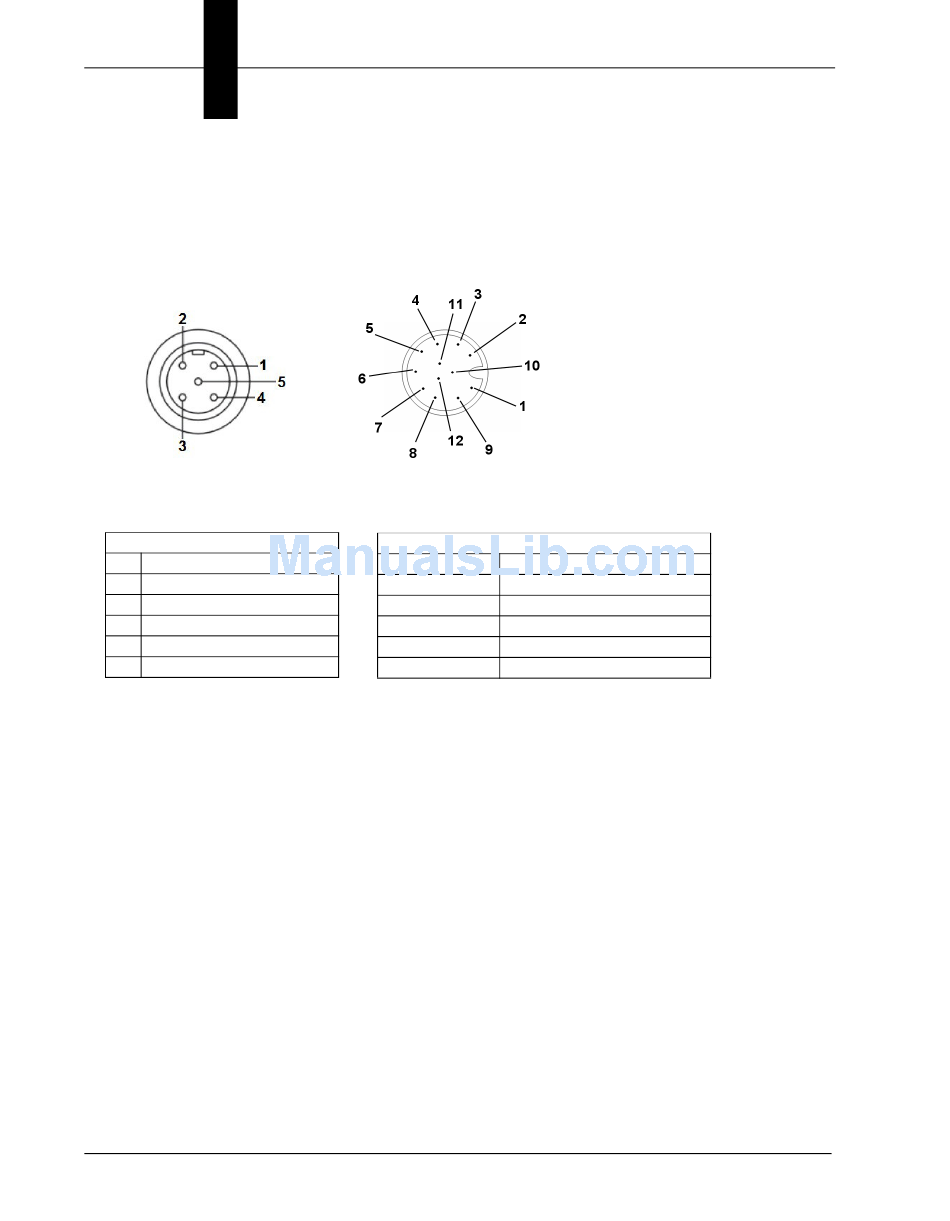

Wiring for Strobe Illumination (PNP)
Warning: Contact between Pin 5 (gray wire) and any ground or voltage source less than
or equal to 3.5VDC may cause erratic operation in this configuration. Contact between Pin
5 (gray wire) and any voltage source greater than 3.5VDC will damage the illuminator.
Smart Series Illuminator
Connector
Smart Series Illuminator
Pin
Signal Name
1
+24VDC
2
Trigger –
3
DC Ground
4
Trigger +
5
Dim
* Insulate Pin 5 (gray wire)
4-10
MicroHAWK MV-40
Connector A
MicroHAWK (Connector A)
Pin
to
2 and 12
Power and Output Common
to
7
to
7
to
6
to
No Connection*
MicroHAWK MV-20 / MV-30 / MV-40 Smart Camera Guide
Signal Name
Ground
Ground
Output 3
N/A
