IO-Link Master (6ES7148-6JD00-0AB0)

Article number
6ES7148-6JD00-0AB0
Properties
The IO-Link Master 4 IO-L 4×M12 has the following technical specifications:
● IO-Link Master according to IO-Link specification V1.1
● Dimensions 30 x 200 mm
● 4 IO-Link ports (Port Class B)
● IO-Link ports can be used optionally as:
– 4 IO-Link devices (Port Class A oder Class B) with variable address area up to 32 byte
– 4 standard actuators/encoders (SIO mode)
● Data transfer rates COM1 (4.8 kBaud), COM2 (38.4 kBaud), COM3 (230.4 kBaud)
● Configurable diagnostics can be set per port (in IO-Link mode)
● Parameterization of IO-Link parameters per S7-PCT V3.4 and higher or
● Autostart (without S7-PCT)
● Hardware interrupts (in IO-Link mode)
The module supports the following functions:
● Master backup
● Firmware update
● Media redundancy
● Identification and maintenance data I&M0 to I&M3
General pin assignment

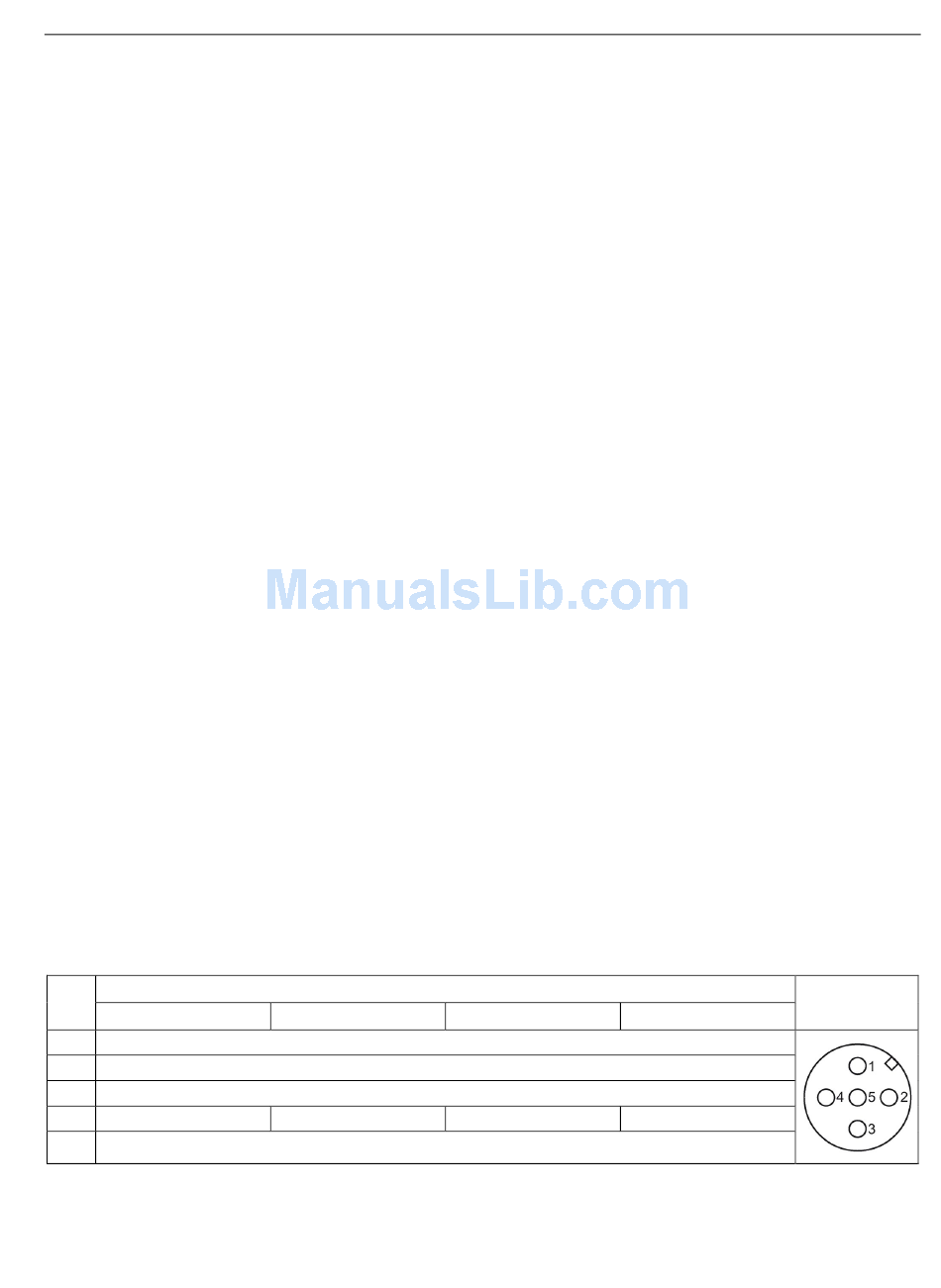

Table 11- 4 Pin assignment of sockets X1 to X4 for IO-Link master
Pin
Socket X1
1
2
3
4 IO-Link port 1
5
ET 200eco PN
Operating Instructions, 08/2016, A5E01250250-AJ
inputs/32 byte outputs per port
Assignment
Socket X2
24 V sensor supply 1U (derived from 1L+ non-switched)
S
24 V actuator supply 2U
Sensor supply ground 1M
IO-Link port 2
Actuator supply ground 2M
11.2 IO-Link Master (6ES7148-6JD00-0AB0)
Socket X3
(derived from 2L+ switched)
A
IO-Link port 3
IO-Link Master
View of socket
(front view)
Socket X4
IO-Link port 4
