  • Page 2 CM 8x IO-Link + DIQ 8x24VDC M12-L 8xM12 (6ES7148-6JJ00-0BB0) communications Preface module Guide to ET 200eco PN M12-L SIMATIC Product overview Wiring ET 200eco PN CM 8x IO-Link + DIQ 8x24VDC M12-L 8xM12 PROFINET IO (6ES7148-6JJ00-0BB0) communications module EtherNet/IP Equipment Manual Modbus TCP Technical specifications Dimension drawing...
  • Page 3 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.

  • Page 4: Table Of Contents

    Table of contents Preface ..............................5 Preface ET 200eco PN Master ....................5 Security information ......................6 Guide to ET 200eco PN M12-L ........................ 7 Information classes ET 200eco PN M12-L................7 Basic tools ........................... 8 S7 Port Configuration Tool (S7-PCT) ................... 11 MultiFieldbus Configuration Tool (MFCT) ................
  • Page 5 Table of contents EtherNet/IP ............................48 Functions/parameters/address space .................. 48 6.1.1 Supported EtherNet/IP functions ..................48 6.1.2 Parameters ........................50 6.1.3 Explanation of the parameters ................... 52 6.1.4 Update time of the I/O data ....................55 6.1.5 Example address space ...................... 56 Diagnostics ........................

  • Page 6: Preface

    Preface ET 200eco PN Master Purpose of the documentation This equipment manual supplements the ET 200eco PN M12-L Distributed I/O System (https://support.industry.siemens.com/cs/ww/en/view/109778292) system manual. Functions that relate in general to the distributed I/O devices ET 200eco PN M12-L are described in this system manual.

  • Page 7: Security Information

    Siemens' products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customers' exposure to cyber threats.

  • Page 8: Guide To Et 200Eco Pn M12-L

    Guide to ET 200eco PN M12-L Information classes ET 200eco PN M12-L The documentation for the SIMATIC ET 200eco PN M12-L distributed I/O system is arranged into three areas. This arrangement enables you to access the specific content you require.

  • Page 9: Basic Tools

    Guide to ET 200eco PN M12-L 2.2 Basic tools General information The function manuals contain detailed descriptions on general topics relating to the SIMATIC ET 200eco PN M12-L distributed I/O system. Examples: • Function Manual Diagnostics • Function Manual Communication •...
  • Page 10 • Reset to factory settings • Firmware update of the CPU and connected modules You can find the SIMATIC Automation Tool on the Internet. (https://support.industry.siemens.com/cs/ww/en/view/98161300) CM 8x IO-Link + DIQ 8x24VDC M12-L 8xM12 (6ES7148-6JJ00-0BB0) communications module Equipment Manual, 12/2022, A5E51718265-AB...
  • Page 11 You can find SIEMENS PRONETA Basic on the Internet: (https://support.industry.siemens.com/cs/ww/en/view/67460624) SIEMENS PRONETA Professional is a licensed product that offers you additional functions. It offers you simple asset management in PROFINET networks and supports operators of automation systems in automatic data collection/acquisition of the components used through various functions: •...

  • Page 12: S7 Port Configuration Tool (S7-Pct)

    SIMATIC S7-PCT The Port Configuration Tool (PCT) is a PC-based software for the parameter assignment of Siemens IO-Link Master modules and IO-Link devices from any manufacturer. You integrate IO-Link-devices using the standardized device description "IODD", which you get from the respective device manufacturer. S7-PCT supports version 1.0 and V1.1 of the IODD.

  • Page 13: Multifieldbus Configuration Tool (Mfct)

    MultiFieldbus- and DALI-devices. In addition, the MFCT offers convenient options for mass firmware updates of ET 200 devices with MultiFieldbus- support and reading service data for many other Siemens devices. Functional scope of the MFCT • MultiFieldbus configuration:...

  • Page 14: Simatic Technical Documentation

    Industry Online Support International (https://support.industry.siemens.com/cs/ww/en/view/109742705) Watch this short video to find out where you can find the overview directly in Siemens Indus- try Online Support and how to use Siemens Industry Online Support on your mobile device: Quick introduction to the technical documentation of automation products per video (https://support.industry.siemens.com/cs/us/en/view/109780491)
  • Page 15 Manuals, characteristics, operating manuals, certificates • Product master data You can find "mySupport" on the Internet. (https://support.industry.siemens.com/My/ww/en) Application examples The application examples support you with various tools and examples for solving your automation tasks. Solutions are shown in interplay with multiple components in the system - separated from the focus on individual products.

  • Page 16: Product Overview

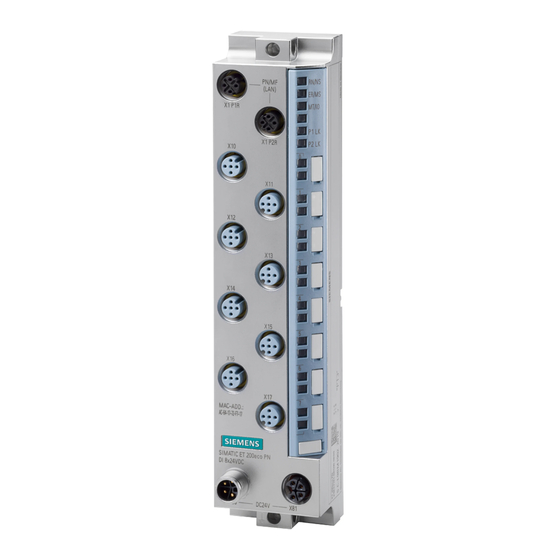

    Product overview Properties Article number 6ES7 148-6JJ00-0BB0 View of the module Figure 3-1 View of the CM 8xIO-Link + DIQ 8x24VDC M12-L communications module CM 8x IO-Link + DIQ 8x24VDC M12-L 8xM12 (6ES7148-6JJ00-0BB0) communications module Equipment Manual, 12/2022, A5E51718265-AB...
  • Page 17 Product overview 3.1 Properties Properties The module has the following technical properties: • IO-Link master according to IO-Link specification V1.1 • 8 IO-Link ports class A • 8 digital inputs / digital outputs, depending on parameter assignment • SIO mode (standard IO mode) •...
  • Page 18 • M12 sealing cap See also You can find more information on the accessories in the ET 200eco PN M12-L distributed I/O system (http://support.automation.siemens.com/WW/view/en/109774008) system manual. CM 8x IO-Link + DIQ 8x24VDC M12-L 8xM12 (6ES7148-6JJ00-0BB0) communications module Equipment Manual, 12/2022, A5E51718265-AB...

  • Page 19: Operator Controls And Display Elements

    Product overview 3.2 Operator controls and display elements Operator controls and display elements The following figure shows the operator controls and display elements of the CM 8xIO-Link + DIQ 8x24VDC M12-L communications module. ① PN/MF (LAN): Sockets for connecting PROFINET ②...

  • Page 20: Functions

    Product overview 3.3 Functions Functions IO-Link is a point-to-point connection between an IO-Link master and an IO-Link device. On the IO-Link master, you can use IO-Link devices as well as conventional sensors/actuators with unshielded standard cables using proven 3-wire technology. IO-Link is downward- compatible to conventional digital sensors and actuators.
  • Page 21 You configure the IO-Link master with the Port Configuration Tool S7-PCT (PDCT) V3.5 SP3 or higher. Reference For more information on the IO-Link system, please see the IO-Link system (http://support.automation.siemens.com/WW/view/en/65949252) function manual. CM 8x IO-Link + DIQ 8x24VDC M12-L 8xM12 (6ES7148-6JJ00-0BB0) communications module Equipment Manual, 12/2022, A5E51718265-AB...

  • Page 22: Reset Communication Module To Factory Settings

    • SIMATIC S7-PCT Factory Reset PROFINET factory reset You can find additional information on the PROFINET factory reset in the ET 200eco PN M12-L distributed I/O system (http://support.automation.siemens.com/WW/view/en/109774008) system manual. SIMATIC S7-PCT Factory Reset You trigger the reset to the factory settings in SIMATIC S7-PCT tool.

  • Page 23: Wiring

    Wiring Terminal and block diagram The following figure shows an example of the pin assignment for port class A and DIQ ports. ① Bus interface with integrated 2-port switch Ground 1M (non-switched) ② IO-Link circuit (1L+, 1M) Load voltage 2L+ (switched) ③...

  • Page 24: Pin Assignment

    Wiring 4.2 Pin assignment Pin assignment Terminal assignment PROFINET connector The following table shows the pin assignment of the PROFINET connector. Table 4- 1 Pin assignment of the PROFINET connectors, port 1 and 2 Assignment of the core Assignment Front view of the connect- color of the PROFINET cable Assignment X1 P1 R Yellow...
  • Page 25 Wiring 4.2 Pin assignment Pin assignment of the IO-Link sockets and digital inputs / digital outputs The table below shows the pin assignments of the 8 sockets for the connection of IO-Link and digital inputs/digital outputs. Table 4- 2 Pin assignment of the IO-Link sockets and digital inputs / digital outputs Assignment Front view of the sockets X10 to X17 - sockets for IO-Link and digital...
  • Page 26 Wiring 4.2 Pin assignment Pin assignment of the connector for infeed of the supply voltage (M12 L-coded) The table below shows the pin assignment of the M12 L-coded connector for infeed of the supply voltage. Table 4- 3 Pin assignment of the supply voltage connector Assignment of the core Assignment Front view of the connector...

  • Page 27: Profinet Io

    PROFINET IO Parameters/address space 5.1.1 Parameters Parameters The following table shows the parameters that you can set for each port (each submodule) of the IO-Link master CM 8xIO-Link + DIQ 8x24VDC M12-L. Table 5- 1 Diagnostics and port parameter IO-Link port Parameters Value range Default...
  • Page 28 PROFINET IO 5.1 Parameters/address space Parameters Value range Default Effective range with configuration soft- ware, for example, MFCT Inspection Level/Data Type-compatible Channel • Same type (V1.0) Storage* (V1.1) with without Back- Backup&Restore up&Restore • Type compatible (V1.1) without Backup&Restore • Type compatible (V1.1) with Backup&Restore...
  • Page 29 PROFINET IO 5.1 Parameters/address space Parameters Value range Default Effective range with configura- tion software, for example, MFCT Hardware interrupt on rising Disable Channel • Disable edge (Digital inputs) • Enable Hardware interrupt on falling Disable Channel • Disable edge (Digital inputs) •...

  • Page 30: Explanation Of The Parameters

    PROFINET IO 5.1 Parameters/address space 5.1.2 Explanation of the parameters Diagnostics: Undervoltage 1L+ Enabling of the diagnostics for insufficient supply voltage 1L+. Diagnostics port This parameter enables the diagnostics for the selected IO-Link port. In the diagnostics A distinction is made between error and maintenance interrupts. The possible diagnostics are dependent on the IO-Link device used.
  • Page 31 PROFINET IO 5.1 Parameters/address space Input delay This parameter can be used to suppress signal interference. Changes to the signal are only detected if they are present consistently for longer than the set input delay time. For input channels with longer input delays, the read-in time is moved accordingly. This means individual channels can be assigned input delays, if necessary, without having a negative impact on the possible cycle time.
  • Page 32 • ET 200AL DQ 8x24VDC/2A 8xM12 (6ES7142-5AF00-0BL0) See also You can find out more about the vendor ID and the device ID of an IO-Link device on the Internet (https://support.industry.siemens.com/cs/ww/en/view/109748852). CM 8x IO-Link + DIQ 8x24VDC M12-L 8xM12 (6ES7148-6JJ00-0BB0) communications module Equipment Manual, 12/2022, A5E51718265-AB...

  • Page 33: Address Space

    PROFINET IO 5.1 Parameters/address space 5.1.3 Address space Introduction The IO-Link master CM 8xIO-Link + DIQ 8x24VDC M12-L has eight ports. Each port is represented by a submodule. IO-Link master and DIQ slot have their own process data areas: • IO-Link on the first PROFINET slot •...
  • Page 34 PROFINET IO 5.1 Parameters/address space Port Qualifier Information (PQI) Note Port Qualifier Information (PQI) The Port Qualifier Information (PQI) with the size 1 byte is always transmitted together with the input data of the IO-Link device. The PQI cannot be deactivated. Description Value Meaning...
  • Page 35 PROFINET IO 5.1 Parameters/address space Address space for configuration as 1 x 8-channel DIQ 8x24VDC The figure below shows the address space assignment for configuration as an 8-channel I/O device with digital inputs/digital outputs without value status. The addresses of the channels are derived from the start address.
  • Page 36 PROFINET IO 5.1 Parameters/address space Address space for configuration as 1 x 8-channel DIQ 8x24VDC QI The following figure shows the address space allocation for the configuration as 8-channel I/O device digital inputs / digital outputs with value status. The addresses of the channels are derived from the start address.
  • Page 37 PROFINET IO 5.1 Parameters/address space Value status (Quality Information, QI) The meaning of the value status depends on the submodule on which it occurs. For the 1st submodule (basic submodule) • Configuration mode DI: The value status 0 indicates that the value is incorrect. •...
  • Page 38 Address space for configuration as 1 x 8-channel DIQ 8x24VDC MSI/MSO with value status (MSI/MSO submodule) Reference For more information, please refer to the IO-Link system (http://support.automation.siemens.com/WW/view/en/65949252) function manual. CM 8x IO-Link + DIQ 8x24VDC M12-L 8xM12 (6ES7148-6JJ00-0BB0) communications module Equipment Manual, 12/2022, A5E51718265-AB...

  • Page 39: Interrupts/Diagnostics Alarms

    PROFINET IO 5.2 Interrupts/diagnostics alarms Interrupts/diagnostics alarms 5.2.1 Status and error displays LED displays The following figure shows the LED display of the CM 8x IO-Link + DIQ 8x24VDC M12-L communications module. ① RN/NS (RUN/network status) ② ER/MS (ERROR/module status) ③...
  • Page 40 PROFINET IO 5.2 Interrupts/diagnostics alarms Meaning of the LEDs The following tables set out the meaning of the status and error displays. Behavior of the LEDs RN/NS (RUN/network status), ER/MS (ERROR/module status) and MT/IO (MAINT/IO status) Table 5- 3 Error display of the LED Meaning Remedy RN/NS...
  • Page 41 PROFINET IO 5.2 Interrupts/diagnostics alarms Meaning Remedy RN/NS ERR/MS MT/IO (green) (red) (yellow) Not rele- Not rele- Maintenance Evaluate the maintenance vant vant events. On (yellow) The "Node flash test" is run- ning (the P1 LK and P2 LK flashes flashes flash LEDs of the PROFINET inter-...
  • Page 42 PROFINET IO 5.2 Interrupts/diagnostics alarms Channel status LEDs DIQ Table 5- 5 Status displays of the LEDs DIQ ... DIQ LEDs Meaning Channel status/channel error Process value = 0 Process value = 1 On (green) Channel fault On (red) Channel status/channel error LEDs IO-Link LEDs Meaning Channel status/error...

  • Page 43: Interrupts

    PROFINET IO 5.2 Interrupts/diagnostics alarms 5.2.2 Interrupts Interrupts The IO-Link Master CM 8xIO-Link + DIQ 8x24VDC M12-L supports the following interrupts: • Diagnostics interrupts • Hardware interrupts • Pull/plug interrupt (at submodule port) In case of an alarm, the CPU of the IO controller automatically calls the interrupt OBs. Information on the cause and class of the error is available, based on the OB number and start information.

  • Page 44: Alarms

    PROFINET IO 5.2 Interrupts/diagnostics alarms 5.2.3 Alarms The IO-Link master can generate diagnostic alarms of the type (severity) "Diagnostics" or "Maintenance" on behalf of the IO-Link device or the IO-Link port. • Alarms of the "Diagnostics" type indicate a malfunction of the IO-Link device / port and should be corrected immediately.
  • Page 45 PROFINET IO 5.2 Interrupts/diagnostics alarms The following table gives you an overview of the possible diagnostic events and their meaning. Table 5- 7 Overview of error types IO-Link port diagnostics Error Extended Error text Meaning type error type (CET) (ECET) 0x9502 0x17FF Process data mis-...
  • Page 46 Short-circuit Short-circuit to L+ • Correct the process wiring. Short-circuit to ground. • Replace the defective encod- er/actuator. See also Diagnostics function manual (https://support.industry.siemens.com/cs/ww/en/view/59192926) CM 8x IO-Link + DIQ 8x24VDC M12-L 8xM12 (6ES7148-6JJ00-0BB0) communications module Equipment Manual, 12/2022, A5E51718265-AB...

  • Page 47: Maintenance Events

    PROFINET IO 5.2 Interrupts/diagnostics alarms 5.2.3.2 Maintenance events Maintenance event for IO-Link master All IO-Link events of the type Warning generated by the IO-Link device or port are mapped to the PROFINET diagnostics alarm of the type "Maintenance" of the assigned submodule. The aim is the early detection and elimination of potential faults.

  • Page 48: Process Alarm Events

    PROFINET IO 5.2 Interrupts/diagnostics alarms 5.2.3.3 Process alarm events Hardware interrupt events for IO-Link master All IO-Link events (event codes) of the Notification type that are generated by the IO-Link device are mapped to the PROFINET hardware interrupt of the assigned submodule. The additional alarm information read out using RALRM contains the relevant IO-Link event code.

  • Page 49: Ethernet/Ip

    EtherNet/IP Functions/parameters/address space 6.1.1 Supported EtherNet/IP functions Supported functions The table below shows the functions that the I/O device supports with EtherNet/IP. Supported functions Remarks I/O communication with scanner FW 5.1.x or higher Parameter assignment FW 5.1.x or higher Reading diagnostics FW 5.1.x or higher Normative CIP objects FW 5.1.x or higher...
  • Page 50 EtherNet/IP 6.1 Functions/parameters/address space Supported CIP objects for EtherNet/IP The table below shows the CIP objects that the I/O device supports with EtherNet/IP. Supported CIP objects Remarks Identity object FW 5.1.x or higher Assembly object FW 5.1.x or higher Connection Manager object FW 5.1.x or higher TCP/IP Interface object FW 5.1.x or higher...

  • Page 51: Parameters

    EtherNet/IP 6.1 Functions/parameters/address space 6.1.2 Parameters Parameters The following table shows the parameters that you can set for each port (each submodule) of the IO-Link master CM 8xIO-Link + DIQ 8x24VDC M12-L. Table 6- 1 Diagnostics and port parameter IO-Link port Parameters Value range Default...
  • Page 52 EtherNet/IP 6.1 Functions/parameters/address space Table 6- 2 Configurable parameters digital input and outputs and their defaults (GSD file) Parameters Value range Default Effective range with configura- tion software, for example, MFCT Diagnostics: Undervoltage 1L+ Disable Channel • Disable • Enable Diagnostics: Short-circuit Disable Channel...

  • Page 53: Explanation Of The Parameters

    EtherNet/IP 6.1 Functions/parameters/address space 6.1.3 Explanation of the parameters Diagnostics: Undervoltage 1L+ Enabling of the diagnostics for insufficient supply voltage 1L+. Diagnostics port This parameter enables the diagnostics for the selected IO-Link port. In the diagnostics A distinction is made between error and maintenance interrupts. The possible diagnostics are dependent on the IO-Link device used.
  • Page 54 EtherNet/IP 6.1 Functions/parameters/address space Input delay This parameter can be used to suppress signal interference. Changes to the signal are only detected if they are present consistently for longer than the set input delay time. For input channels with longer input delays, the read-in time is moved accordingly. This means individual channels can be assigned input delays, if necessary, without having a negative impact on the possible cycle time.
  • Page 55 • ET 200AL DQ 8x24VDC/2A 8xM12 (6ES7142-5AF00-0BL0) See also You can find out more about the vendor ID and the device ID of an IO-Link device on the Internet (https://support.industry.siemens.com/cs/ww/en/view/109748852). CM 8x IO-Link + DIQ 8x24VDC M12-L 8xM12 (6ES7148-6JJ00-0BB0) communications module Equipment Manual, 12/2022, A5E51718265-AB...

  • Page 56: Update Time Of The I/O Data

    EtherNet/IP 6.1 Functions/parameters/address space 6.1.4 Update time of the I/O data You can estimate the typical update time for an I/O cycle as follows: RPI timer (settable from 2 to 20 ms ± 10 %) default 10 ms + I/O processing (typically 1.4 ms, ± 1 ms jitter due to free-running cycles) + EM conversion (dependent on cycle time and parameter assignment of the module) If necessary, you must take into account other influences caused by the EIP scanner and network components by adding them.

  • Page 57: Example Address Space

    EtherNet/IP 6.1 Functions/parameters/address space 6.1.5 Example address space Configuration example The following figure shows the configuration for this example in MFCT: Figure 6-1 MFCT IO-Link master CM 8x IO-Link + DIQ 8x24VDC M12-L 8xM12 (6ES7148-6JJ00-0BB0) communications module Equipment Manual, 12/2022, A5E51718265-AB...
  • Page 58 EtherNet/IP 6.1 Functions/parameters/address space Input range The following table shows the input range for the example configuration: Slot Subslot DataItem Description CM 8x IO-Link + DIQ 8x24VDC M12-L 8xM12 V5.1 / input data status IO-Link master proxy / input data status Input_data_1_Byte IO-Link 1 I/ 1 O + PQI Port_status...

  • Page 59: Diagnostics

    EtherNet/IP 6.2 Diagnostics Diagnostics 6.2.1 Status and fault displays LED displays The figure below shows the LED displays (status and error displays) of the I/O device CM 8x IO-Link + DIQ 8x24VDC M12-L. ① RN/NS (RUN/network status) ② ER/MS (ERROR/module status) ③...
  • Page 60 EtherNet/IP 6.2 Diagnostics Behavior of the LEDs RN/NS (RUN/network status), ER/MS (ERROR/module status) and MT/IO (MAINT/IO status) on EtherNet/IP The LEDs display the status with the highest priority if there are different LED states due to overlaid events. (0 = off, 1 = green flashing, 2 = green, 3 = yellow, 4 = red flashing, 5 = red) The following table shows the meaning of the RN/NS, ER/MS LEDs and MT/IO LEDs for EtherNet/IP: Table 6- 3...
  • Page 61 EtherNet/IP 6.2 Diagnostics LEDs Meaning Solution IO diagnostics or missing IO device of rele- rele- slots used by EtherNet/IP Flash- vant vant Test of LEDs during startup: The three LEDs light up simultaneously for ap- Flash- Flash- Flash- proximately 0.25 s in red. Then for approximately 0.25 s in green.

  • Page 62: Modbus Tcp

    Modbus TCP Functions/parameters/address space 7.1.1 Supported Modbus TCP functions Supported functions The table below shows the functions that the I/O device supports with Modbus TCP. Supported functions RegLayoutVersion Remarks I/O communication with Modbus client V1.0 FW 5.1.x or higher Free user registers (e.g. for coordination of the V1.0 FW 5.1.x or higher redundancy)

  • Page 63: Parameters

    Modbus TCP 7.1 Functions/parameters/address space 7.1.2 Parameters Parameters The following table shows the parameters that you can set for each port (each submodule) of the IO-Link master CM 8xIO-Link + DIQ 8x24VDC M12-L. Table 7- 1 Diagnostics and port parameter IO-Link port Parameters Value range Default...
  • Page 64 Modbus TCP 7.1 Functions/parameters/address space Parameters Value range Default Effective range with configuration soft- ware, for example, MFCT Inspection Level/Data Stor- Type-compatible Channel • Same type (V1.0) age* (V1.1) with Back- without Back- up&Restore up&Restore • Type compatible (V1.1) without Backup&Restore •...
  • Page 65 Modbus TCP 7.1 Functions/parameters/address space Parameters Value range Default Effective range with configura- tion software, for example, MFCT Hardware interrupt on rising Disable Channel • Disable edge (Digital inputs) • Enable Hardware interrupt on falling Disable Channel • Disable edge (Digital inputs) •...

  • Page 66: Explanation Of The Parameters

    Modbus TCP 7.1 Functions/parameters/address space 7.1.3 Explanation of the parameters Diagnostics: Undervoltage 1L+ Enabling of the diagnostics for insufficient supply voltage 1L+. Diagnostics port This parameter enables the diagnostics for the selected IO-Link port. In the diagnostics A distinction is made between error and maintenance interrupts. The possible diagnostics are dependent on the IO-Link device used.
  • Page 67 Modbus TCP 7.1 Functions/parameters/address space Input delay This parameter can be used to suppress signal interference. Changes to the signal are only detected if they are present consistently for longer than the set input delay time. For input channels with longer input delays, the read-in time is moved accordingly. This means individual channels can be assigned input delays, if necessary, without having a negative impact on the possible cycle time.
  • Page 68 • ET 200AL DQ 8x24VDC/2A 8xM12 (6ES7142-5AF00-0BL0) See also You can find out more about the vendor ID and the device ID of an IO-Link device on the Internet (https://support.industry.siemens.com/cs/ww/en/view/109748852). CM 8x IO-Link + DIQ 8x24VDC M12-L 8xM12 (6ES7148-6JJ00-0BB0) communications module Equipment Manual, 12/2022, A5E51718265-AB...

  • Page 69: Update Time Of The I/O Data

    Modbus TCP 7.1 Functions/parameters/address space 7.1.4 Update time of the I/O data You can estimate the typical update time for an I/O cycle as follows: Update time (can be set starting at 2 ms) + I/O processing (typically 1.4 ms, +/- 1 ms jitter due to free-running cycles) + EM conversion (dependent on cycle time and parameter assignment of the module) If necessary, you must take into account other influences caused by the MTCP client and network components by adding them.

  • Page 70: Example Address Space

    Modbus TCP 7.1 Functions/parameters/address space 7.1.5 Example address space Configuration example The following figure shows the configuration for this example in MFCT: Figure 7-1 MFCT IO-Link master CM 8x IO-Link + DIQ 8x24VDC M12-L 8xM12 (6ES7148-6JJ00-0BB0) communications module Equipment Manual, 12/2022, A5E51718265-AB...
  • Page 71 Modbus TCP 7.1 Functions/parameters/address space Input range The following table shows the input range for the example configuration: Slot Subslot DataItem Description CM 8x IO-Link + DIQ 8x24VDC M12-L 8xM12 V5.1 / input data status IO-Link master proxy / input data status Input_data_1_Byte IO-Link 1 I/ 1 O + PQI Port_status...

  • Page 72: Diagnostics

    Modbus TCP 7.2 Diagnostics Diagnostics 7.2.1 Status and fault displays LED displays The figure below shows the LED displays (status and error displays) of the I/O device CM 8x IO-Link + DIQ 8x24VDC M12-L ① RN/NS (RUN/network status) ② ER/MS (ERROR/module status) ③...
  • Page 73 Modbus TCP 7.2 Diagnostics Behavior of the LEDs RN/NS (RUN/network status), ER/MS (ERROR/module status) and MT/IO (MAINT/IO status) The LEDs display the status with the highest priority if there are different LED states due to overlaid events. (0 = off, 1 = green flashing, 2 = green, 3 = yellow, 4 = red flashing, 5 = red) The following table shows the meaning of the RN/NS, ER/MS and MT/IO LEDs: Table 7- 3 Error display of the LEDs...
  • Page 74 Modbus TCP 7.2 Diagnostics P1 LK and P2 LK LEDs Table 7- 4 Error display of the P1 LK and P2 LK LEDs LEDs Meaning Solution P1 LK P2 LK There is no Ethernet connection between Check whether the bus cable to the the communications interface of your switch/communication partner is inter- IO device and a communication partner...

  • Page 75: Technical Specifications

    Technical specifications of the CM 8xIO-Link + DIQ 8x24VDC M12-L communications module The following table shows the technical specifications as of the issue date. You can find a data sheet including daily updated technical specifications on the Internet (https://support.industry.siemens.com/cs/de/en/pv/6ES7148-6JJ00-0BB0/td?dl=de). Article number 6ES7148-6JJ00-0BB0...
  • Page 76 Technical specifications Article number 6ES7148-6JJ00-0BB0 28.8 V • permissible range, upper limit (DC) Yes; Against destruction; encoder power supply • Reverse polarity protection outputs applied with reversed polarity Load voltage 2L+ 24 V • Rated value (DC) 20.4 V • permissible range, lower limit (DC) 28.8 V •...
  • Page 77 Technical specifications Article number 6ES7148-6JJ00-0BB0 Input current 2.5 mA • for signal "1", typ. Input delay (for rated value of input voltage) for standard inputs Yes; 0.05 / 0.1 / 0.4 / 0.8 / 1.6 / 3.2 / 12.8 / 20 ms –...
  • Page 78 Technical specifications Article number 6ES7148-6JJ00-0BB0 Encoder Connectable encoders • 2-wire sensor 1.5 mA – permissible quiescent current (2-wire sen- sor), max. IO-Link Number of ports • of which simultaneously controllable IO-Link protocol 1.0 IO-Link protocol 1.1 Transmission rate 4.8 kBaud (COM1); 38.4 kBaud (COM2), 230 kBaud (COM3) Cycle time, min.
  • Page 79 Technical specifications Article number 6ES7148-6JJ00-0BB0 Interface types M12 port • Autonegotiation • Autocrossing 100 Mbit/s • Transmission rate, max. Protocols Supports protocol for PROFINET IO PROFINET CBA PROFIsafe EtherNet/IP Modbus TCP PROFINET IO Device Services Yes; 250 µs to 4 ms in 125 µs frame –...
  • Page 80 Technical specifications Article number 6ES7148-6JJ00-0BB0 – LargeForwardOpen (Class3) Modbus TCP Services – read coils (code=1) – read discrete inputs (code=2) – Read Holding Registers (Code=3) – write single coil (code=5) – write multiple coils (code=15) – Write Multiple Registers (Code=16) –...
  • Page 81 Technical specifications Article number 6ES7148-6JJ00-0BB0 Yes; red LED • ERROR LED Yes; Yellow LED • MAINT LED • Monitoring of the supply voltage (PWR-LED) Yes; green/red LED • NS LED Yes; green/red LED • MS LED Yes; red-green-yellow LED • IO LED Yes;...
  • Page 82 Technical specifications Article number 6ES7148-6JJ00-0BB0 Connection method / header Design of electrical connection 4/5-pin M12 circular connectors Design of electrical connection for the inputs and M12, 5-pin, A-coded outputs Design of electrical connection for supply voltage M12, 4-pin, L-coded Dimensions Width 45 mm Height...
  • Page 83 Technical specifications The following table shows the possibilities for total current, ports X10 to X17. IO-Link Port Total current U / channel * Option 1 X10 to X17 (IO-Link+ 1xDIQ) 1.5 A Option 2 X10 + X11 (IO-Link+ 1xDIQ) X12 + X13 (IO-Link+ 1xDIQ) X14 + X15 (IO-Link+ 1xDIQ) X16 + X17 (IO-Link+ 1xDIQ) * The total current of all outputs (including DIQ) must not exceed the limit value specified in...

  • Page 84: Dimension Drawing

    Dimension drawing The following figure shows the dimension drawing of the CM 8x IO-Link + DIQ 8x24VDC M12-L communications module in front and side view. Figure A-1 Dimension drawing CM 8x IO-Link + DIQ 8x24VDC M12-L 8xM12 (6ES7148-6JJ00-0BB0) communications module Equipment Manual, 12/2022, A5E51718265-AB...

  • Page 85: Parameter Data Record

    Parameter data record Dependencies for the configuration The parameter settings are dependent on each other when configuring the I/O device. These dependencies must be considered when configuring with the latest HSP in STEP 7 TIA. When configuring with the GSD file or with data record 128, these dependencies must be observed. Dependencies of the parameter settings This table lists the parameters and their dependencies.

  • Page 86: Structure Of Data Record 128 For I/O Device Parameter Assignment (Diq)

    Parameter data record B.2 Structure of data record 128 for I/O device parameter assignment (DIQ) Structure of data record 128 for I/O device parameter assignment (DIQ) With data record 128, you can reconfigure the I/O device in your user program, regardless of your programming.
  • Page 87 Parameter data record B.2 Structure of data record 128 for I/O device parameter assignment (DIQ) Header information The figure below shows the structure of the header information. Figure B-2 Header information Device header information The figure below shows the structure of the device header information. Figure B-3 Device header information Device parameter block...
  • Page 88 Parameter data record B.2 Structure of data record 128 for I/O device parameter assignment (DIQ) Parameters The following figure shows the structure of the parameters for a channel. Activate a parameter by setting the corresponding bit to "1". The channel number depends on the parameter assignment of the I/O device. •...

  • Page 89: Error Transferring The Data Record

    Parameter data record B.3 Error transferring the data record Error transferring the data record Error transferring the data record The I/O device checks the values of the transferred data record. Only if the values were transferred without errors does the I/O device apply the values from the data record. The "WRREC"...
