10. Appendix

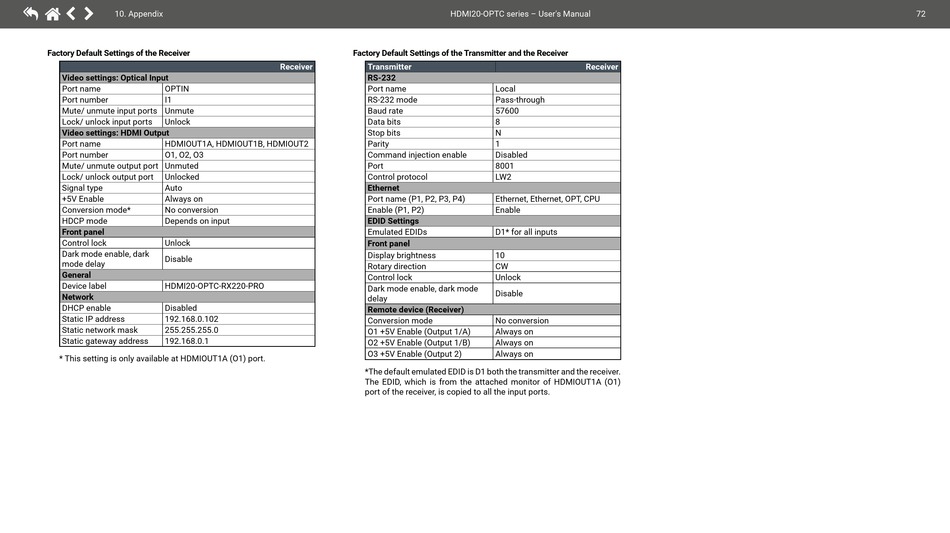

Factory Default Settings of the Receiver
Video settings: Optical Input
Port name OPTIN
Port number I1
Mute/ unmute input ports Unmute
Lock/ unlock input ports Unlock
Video settings: HDMI Output
Port name HDMIOUT1A, HDMIOUT1B, HDMIOUT2
Port number O1, O2, O3
Mute/ unmute output port Unmuted
Lock/ unlock output port Unlocked
Signal type Auto
+5V Enable Always on
Conversion mode* No conversion
HDCP mode Depends on input
Front panel
Control lock Unlock
Dark mode enable, dark
Disable
mode delay
General
Device label HDMI20-OPTC-RX220-PRO
Network
DHCP enable Disabled
Static IP address 192.168.0.102
Static network mask 255.255.255.0
Static gateway address 192.168.0.1
* This setting is only available at HDMIOUT1A (O1) port.
HDMI20-OPTC series – User's Manual
Factory Default Settings of the Transmitter and the Receiver
Receiver Transmitter
RS-232
Port name
RS-232 mode
Baud rate
Data bits
Stop bits
Parity
Command injection enable
Port
Control protocol
Ethernet
Port name (P1, P2, P3, P4)
Enable (P1, P2)
EDID Settings
Emulated EDIDs
Front panel
Display brightness
Rotary direction
Control lock
Dark mode enable, dark mode
delay
Remote device (Receiver)
Conversion mode
O1 +5V Enable (Output 1/A)
O2 +5V Enable (Output 1/B)
O3 +5V Enable (Output 2)
*The default emulated EDID is D1 both the transmitter and the receiver.
The EDID, which is from the attached monitor of HDMIOUT1A (O1)
port of the receiver, is copied to all the input ports.
Receiver
Local
Pass-through
57600
8
N
1
Disabled
8001
LW2
Ethernet, Ethernet, OPT, CPU
Enable
D1* for all inputs
10
CW
Unlock
Disable
No conversion
Always on
Always on
Always on
72
