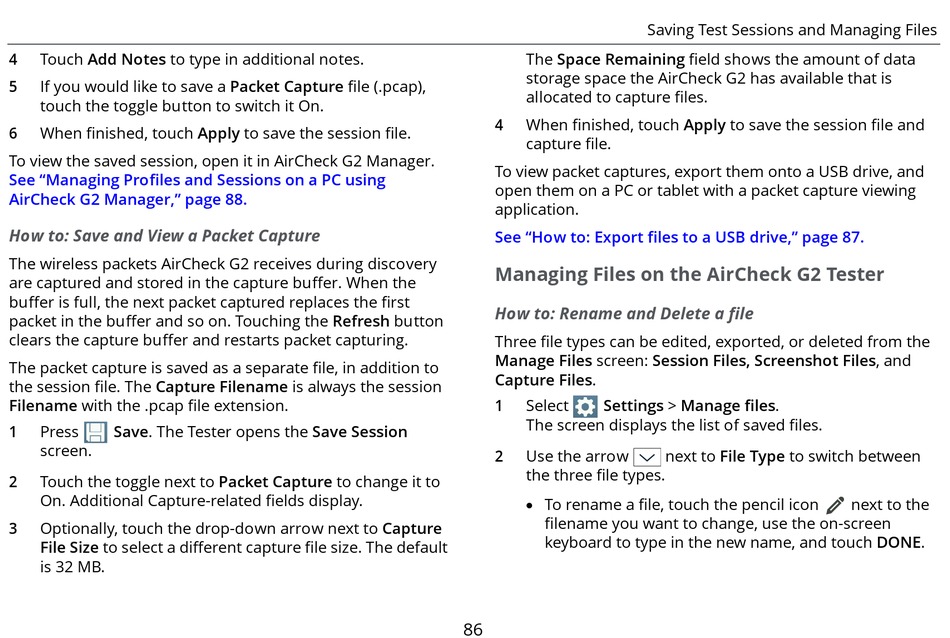

4 Touch Add Notes to type in additional notes.
5 If you would like to save a Packet Capture file (.pcap),
touch the toggle button to switch it On.
6 When finished, touch Apply to save the session file.
To view the saved session, open it in AirCheck G2 Manager.
See "Managing Profiles and Sessions on a PC using
AirCheck G2 Manager," page 88.

How to: Save and View a Packet Capture

The wireless packets AirCheck G2 receives during discovery
are captured and stored in the capture buffer. When the
buffer is full, the next packet captured replaces the first
packet in the buffer and so on. Touching the Refresh button
clears the capture buffer and restarts packet capturing.
The packet capture is saved as a separate file, in addition to
the session file. The Capture Filename is always the session
Filename with the .pcap file extension.
1 Press Save. The Tester opens the Save Session
screen.
2 Touch the toggle next to Packet Capture to change it to
On. Additional Capture-related fields display.
3 Optionally, touch the drop-down arrow next to Capture
File Size to select a different capture file size. The default
is 32 MB.
The Space Remaining field shows the amount of data
storage space the AirCheck G2 has available that is
allocated to capture files.
4 When finished, touch Apply to save the session file and
capture file.
To view packet captures, export them onto a USB drive, and
open them on a PC or tablet with a packet capture viewing
application.
See "How to: Export files to a USB drive," page 87.

Managing Files on the AirCheck G2 Tester

How to: Rename and Delete a file

Three file types can be edited, exported, or deleted from the
Manage Files screen: Session Files, Screenshot Files, and
Capture Files.
1 Select Settings > Manage files.
The screen displays the list of saved files.
2 Use the arrow
the three file types.
 To rename a file, touch the pencil icon
filename you want to change, use the on-screen
keyboard to type in the new name, and touch DONE.
86
Saving Test Sessions and Managing Files
next to File Type to switch between
next to the
