Running a Connect to Network or Connect to
AP Test
1 From the Home Screen, touch Networks or Access
Points.
2 Touch the row of the relevant network or AP to open its
Details screen.
3 From the Network or AP details screen, touch the
Connect button at the bottom of the screen to open the
Connect to Network or Connect to AP screen, 
see Figure 41.
When you press Connect,
 If an AP supports more than one network, a screen
appears with a list of SSIDs, allowing you to select the
SSID to which you want to connect.
 If the network or AP is secured and you have not
configured its credentials in the current Profile, the
configuration screen will open. Configure the
appropriate security settings, and touch Apply to
connect.
 If the network or AP's credentials are already saved in
the Profile, the connection test starts.
The results are displayed as they become available.

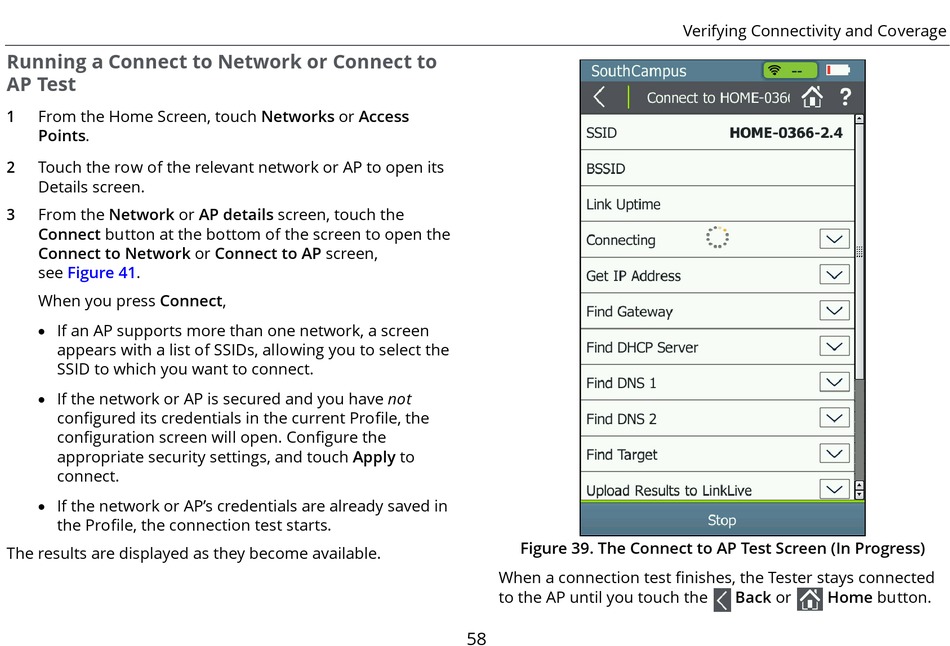

Figure 39. The Connect to AP Test Screen (In Progress)
When a connection test finishes, the Tester stays connected
to the AP until you touch the
58
Verifying Connectivity and Coverage
Back or Home button.
