3 Select Profile Setup from the left side navigation menu.
4 Edit a Profile:
 If necessary, transfer the "Default" Profile (or a profile
created on AirCheck G2) from AirCheck Profiles, in the
left pane, to Local Profiles in the right pane by
dragging and dropping the Profile name.
 Then, double-click the Profile name, or click the pencil
icon to edit the Profile's configuration.
 You can also click the icon
5 In the Create Profile or Edit Profile dialog box, select
Networks from the left-side headings.
6 Click the Add button.
7 Enter the required network configuration information,
and click Save.
8 Transfer the new or updated Profile from the Local
Profiles pane to the AirCheck G2 Profiles pane by
dragging and dropping the Profile name.
Once added, the network or AP name will appear in the
AirCheck G2 unit's Settings menu on the Networks
screen as shown in Figure
to "Create a new Profile."
32.

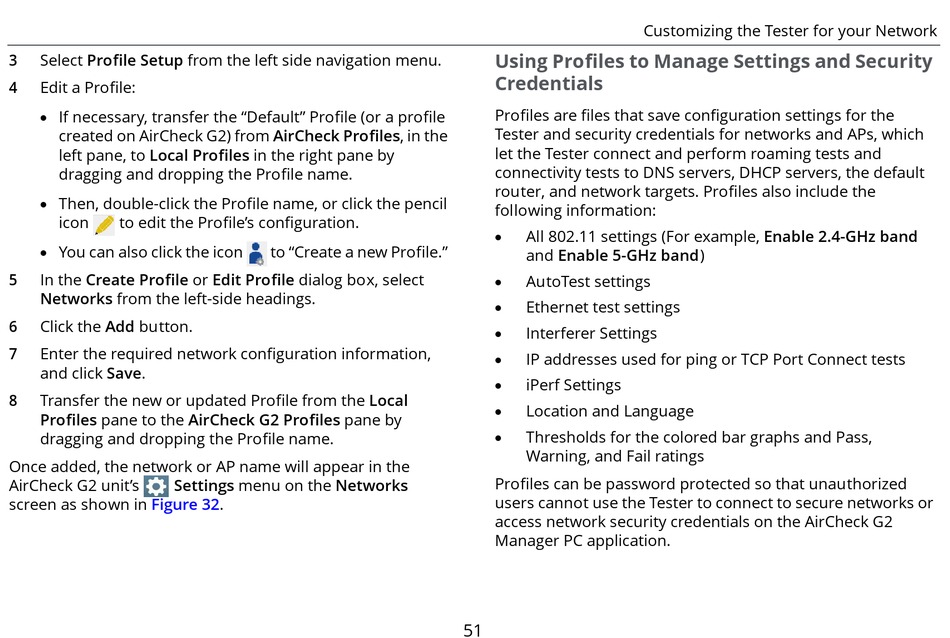

Using Profiles to Manage Settings and Security
Credentials
Profiles are files that save configuration settings for the
Tester and security credentials for networks and APs, which
let the Tester connect and perform roaming tests and
connectivity tests to DNS servers, DHCP servers, the default
router, and network targets. Profiles also include the
following information:
All 802.11 settings (For example, Enable 2.4-GHz band

and Enable 5-GHz band)
AutoTest settings

Ethernet test settings

Interferer Settings

IP addresses used for ping or TCP Port Connect tests

iPerf Settings

Location and Language

Thresholds for the colored bar graphs and Pass,

Warning, and Fail ratings
Profiles can be password protected so that unauthorized
users cannot use the Tester to connect to secure networks or
access network security credentials on the AirCheck G2
Manager PC application.
51
Customizing the Tester for your Network
