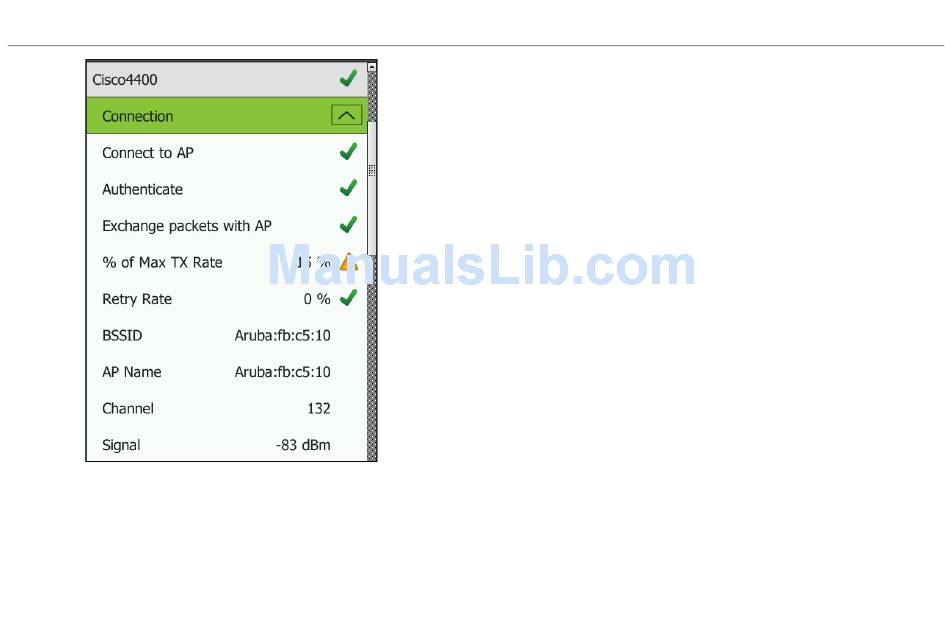

Figure 25. AutoTest Network Connection Test Results
% of Max TX Rate: The physical transmission rate as a
percentage of the maximum rate possible.
Retry Rate: The percentage of transmitted frames that are
retry frames.
Using AutoTest to Diagnose Your Network Health
BSSID: The MAC address of the access point.
AP Name: The name of the AP to which the Tester is
connected. The address starts with a vendor abbreviation
prefix, if the prefix is available.
Channel: The channel the AP uses.
Other Connection Results: The rest of the results under
Connection provide exact values for the average, minimum,
and maximum Signal, Noise, SNR, and TX Rate.

IP Address Result

IP Address: Indicates whether or not an IP was successfully
obtained via DHCP or if a static IP is configured.

Captive Portal Result

See "Captive Portal" on page
42
59.
