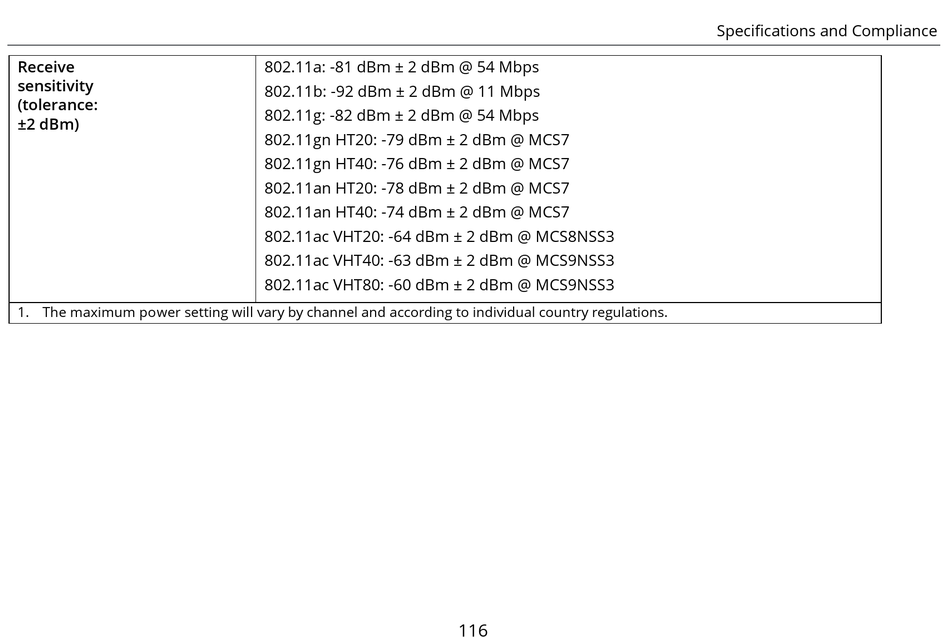

Receive 
sensitivity
(tolerance: 
±2 dBm)
1. The maximum power setting will vary by channel and according to individual country regulations.
802.11a: -81 dBm ± 2 dBm @ 54 Mbps
802.11b: -92 dBm ± 2 dBm @ 11 Mbps
802.11g: -82 dBm ± 2 dBm @ 54 Mbps
802.11gn HT20: -79 dBm ± 2 dBm @ MCS7
802.11gn HT40: -76 dBm ± 2 dBm @ MCS7
802.11an HT20: -78 dBm ± 2 dBm @ MCS7
802.11an HT40: -74 dBm ± 2 dBm @ MCS7
802.11ac VHT20: -64 dBm ± 2 dBm @ MCS8NSS3
802.11ac VHT40: -63 dBm ± 2 dBm @ MCS9NSS3
802.11ac VHT80: -60 dBm ± 2 dBm @ MCS9NSS3
116
Specifications and Compliance
