Netscout AirCheck G2 User Manual page 53

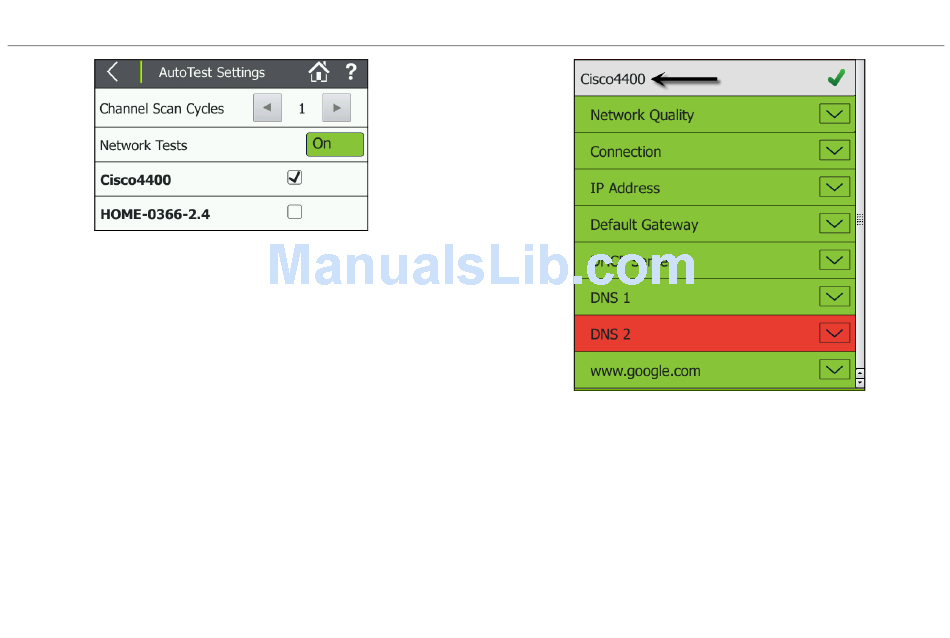

Figure 22. AutoTest Settings Screen
3 Touch AutoTest from the Home Screen.
Once the SSID and security credentials have been entered,
AutoTest runs Network Tests for each network selected.
In the example shown in
"Cisco4400," has been configured and added to the Profile,
and the network is selected in AutoTest Settings.
Network Test results are reported on the AutoTest results
screen below the Air Quality test results. In
Network test for "Cisco4400" has run and passed.
Figure 22, security for the SSID,
Figure 23, the
NOTE: When you connect to a network, the Tester usually
connects through the access point that has the highest
Signal-to-Noise Ratio. If the network includes secure and
unsecured access points and security credentials are
available, the Tester tries to connect to the secure access
point that has the highest Signal-to-Noise Ratio. Some
networks use a controller that connects you to the access
point that has the least amount of traffic.
40
Using AutoTest to Diagnose Your Network Health
Figure 23. AutoTest Network Tests
