Operation

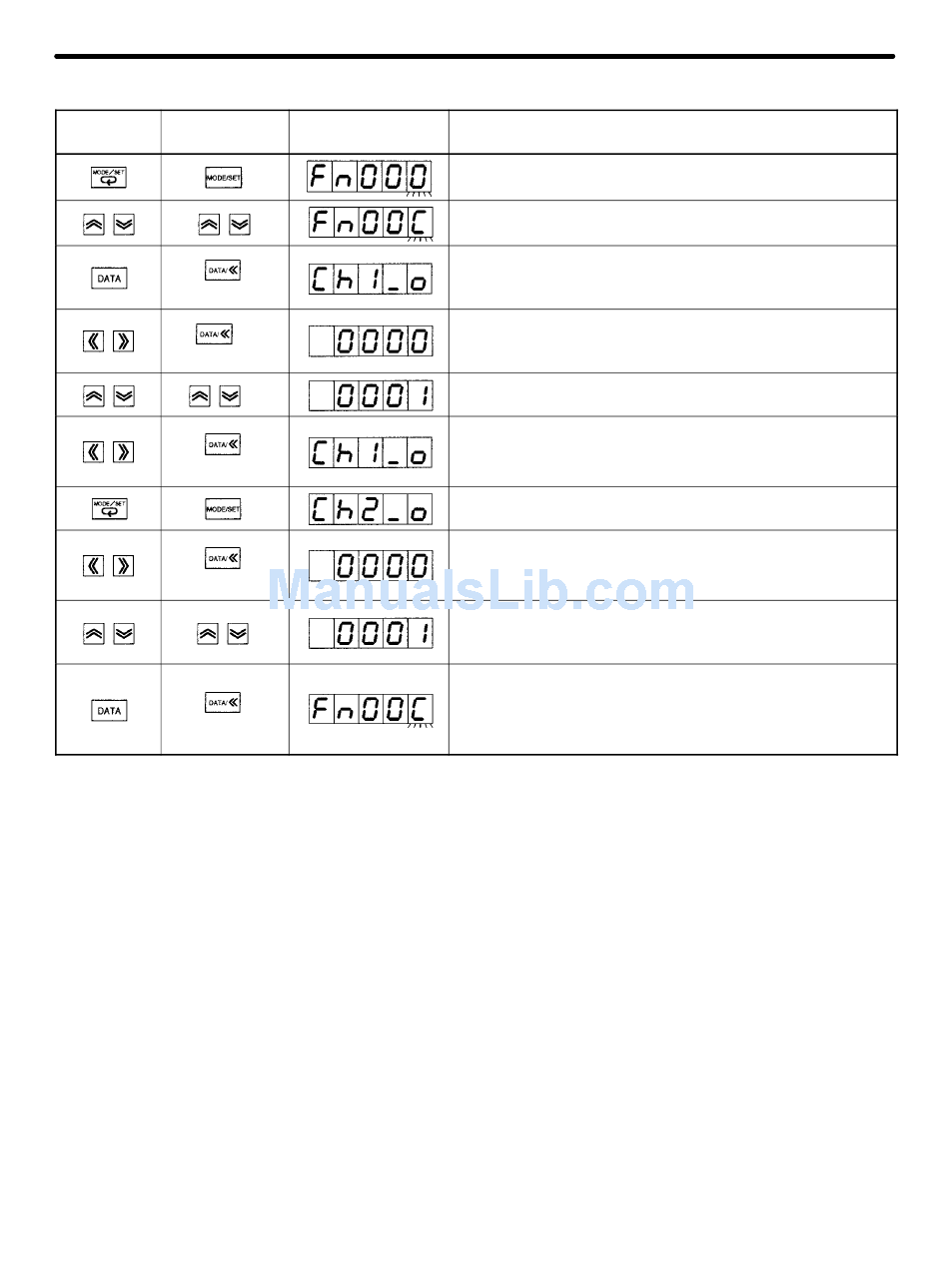

Operation Procedure
PR02W Front panel
operation key operation
(1 s min.)
(1 s max.)
(1 s max.)
(1 s max.)
(1 s min.)
Note 1. The digits you can manipulate will flash.
Note 2. Press the MODE SET Key in this mode to display "Ch2_o," then select analog monitor output
2 (NM). Press the same Key again to return to "Ch1_o" display.
Note 3. The offset amount unit is x 17 mV.
Display
Press the MODE/SET Key to change to System Check
Mode.
Press the Up or Down Key to set function code Fn00C.
(See note 1.)
Press the DATA Key (front panel: DATA Key for 1 s min.)
to display "Ch1_o" (for analog monitor output 1 (AM)).
(See note 2.)
Press the Left Key (front panel: DATA Key for less than
1 s) or Right Key to display the analog monitor output 1
(AM) offset amount. (See note 3.)
Press the Up or Down Key to change the offset amount.
Adjust the measuring device measurement value to 0 V.
After completing adjustments for analog monitor 1, press
the Left Key (front panel: DATA Key for less than 1 s) or
Right Key to return to the "Ch1_o" display.
Press the MODE/SET Key to display "Ch2_o."
Press the Left Key (front panel: DATA Key for less than
1 s) or Right Key to display the analog monitor output 2
(NM) offset amount. (See note 3.)
Press the Up or Down Key to change the offset amount.
Adjust the measuring device measurement value to 0 V,
the same as for analog output monitor 1.
After completing adjustments for analog monitor 2, press
the DATA Key (front panel: DATA Key for 1 s min.). The
display will return to the System Check Mode function
code.
Chapter 4
Explanation
4-143
