Upgrade Manager; Dual Image; Figure 4.117 Tools > Upgrade Manager - Advantech EKI-7710E-2C User Manual

The following table describes the items in the previous figure.
Item
Backup Method
Server IP
Backup Type
Backup
4.11.3

Upgrade Manager

The Upgrade Manager page allows you to configure a remote TFTP sever or host file
system in order to upload firmware upgrade images or configuration files.
To access this page, click Tools > Upgrade Manager.
The following table describes the items in the previous figure.
Item
Upgrade Method
Server IP
File Name
Upgrade Type
Upgrade
4.11.4

Dual Image

The Dual Image page allows you to setup an active and backup partitions for firm-
ware image redundancy.
EKI-7710 Series User Manual
Description
Click the drop-down menu to select the backup method: TFTP or
HTTP.
Enter the IP address of the backup server.
Click a type to define the backup method: image: running configura-
tion, startup configuration, flash log, or buffered log.
Click the format for the image type: 7710E_2C_1_00_13.bix (Active)
or vmlinux.bix (backup).
Click Backup to backup the settings.

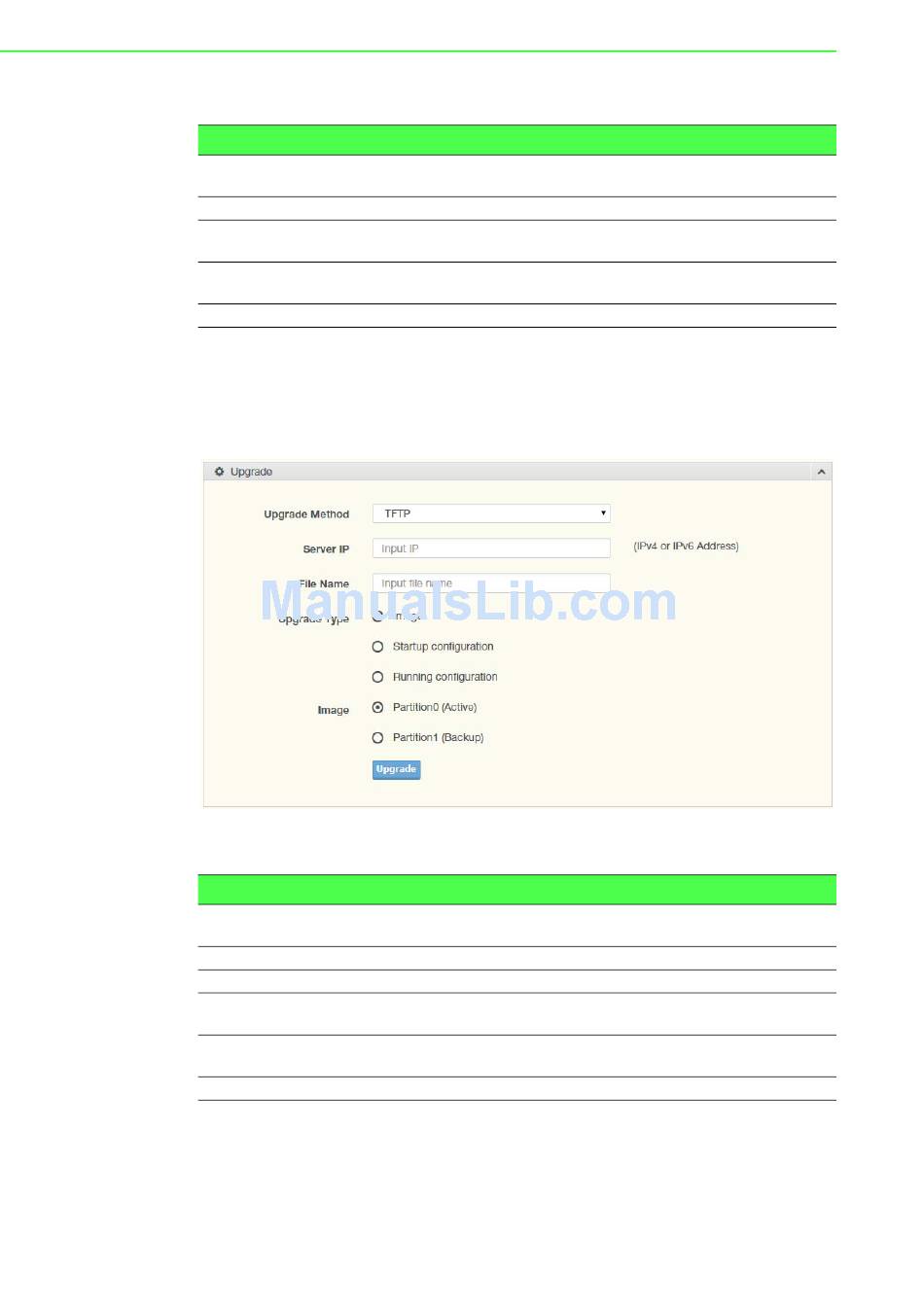

Figure 4.117 Tools > Upgrade Manager
Description
Click the drop-down menu to select the upgrade method: TFTP or
HTTP.
Enter the IP address of the upgrade server.
Enter the file name of the new firmware version.
Click a type to define the upgrade method: image, startup configura-
tion, or running configuration.
Click the format for the image type: 7710E_2C_1_00_13.bix (Active)
or vmlinux.bix (backup).
Click Upgrade to upgrade to the current version.
