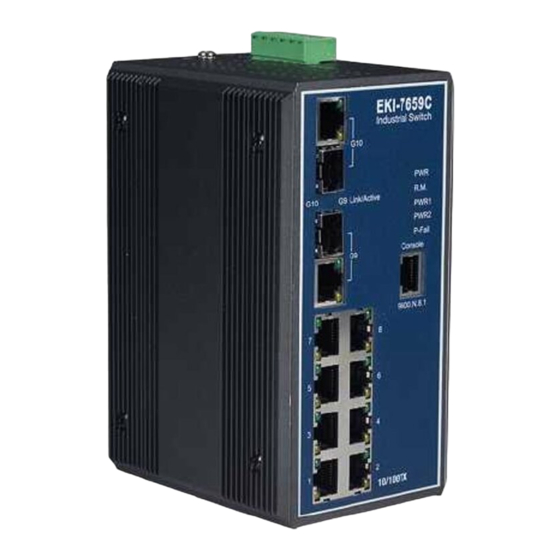

Industrial 8+2g combo ports managed redundant gigabit ethernet switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EKI-7659C/7659CI
Industrial 8+2G Combo Ports
Managed Redundant Gigabit
Ethernet Switch
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EKI-7659CI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Advantech EKI-7659CI

Summary of Contents for Advantech EKI-7659CI

  • Page 1 EKI-7659C/7659CI Industrial 8+2G Combo Ports Managed Redundant Gigabit Ethernet Switch User Manual...
  • Page 2 The documentation and the software included with this product are copyrighted 2010 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements in the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd.
  • Page 3 Because of Advantech′s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defective, it will be repaired or replaced at no charge during the warranty period. For out-of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.
  • Page 4 Step 2. Contact your distributor, sales representative, or Advantech’s customer service center for technical support if you need additional assistance. Please have the following information ready before you call: - Product name and serial number...
  • Page 5 Safety Instructions 1. Read these safety instructions carefully. 2. Keep this User's Manual for later reference. 3. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning. 4. For plug-in equipment, the power outlet socket must be located near the equipment and must be easily accessible.
  • Page 6 Safety Precaution - Static Electricity Follow these simple precautions to protect yourself from harm and the products from damage. 1. To avoid electrical shock, always disconnect the power from your equipment chassis before you work on it. 2. Disconnect power before making any configuration changes. EKI-7659C_7659CI_Manual...

  • Page 7: Table Of Contents

    Contents Chapter 1 Overview........... 2 1.1 Introduction ............2 1.1.1 The SFP Advantage ........2 1.1.2 High-Speed Transmissions ....... 2 1.1.3 Dual Power Inputs ........2 1.1.4 Flexible Mounting ........2 1.1.5 Wide Operating Temperature ....3 1.1.6 Easy Troubleshooting........ 3 1.2 Features ..............
  • Page 8 Figure 3.1-4 Login Screen: RS-232 Configuration ....27 Figure 3.1-5 Command Line Interface ........28 3.2 Commands Set ........... 29 3.2.1 Commands Level........29 Table 3.1: Command Level............29 3.2.2 Commands Set List ......... 29 Table 3.2: Commands Set List............29 3.2.3 System Commands Set......30 Table 3.3: System Commands Set ..........30 3.2.4 Port Commands Set ........
  • Page 9 Figure 3.3-9 TFTP – Update Firmware ........48 Figure 3.3-10 TFTP – Restore Configuration......49 Figure 3.3-11 TFTP – Backup Configuration......50 Figure 3.3-12 Syslog Configuration ..........51 Figure 3.3-13 SMTP Configuration...........52 Figure 3.3-14 Event Configuration..........53 Figure 3.3-15 Fault Relay Alarm..........54 Table 3.18: UTC Timezone ............55 Figure 3.3-16 SNTP Configuration ...........56 Figure 3.3-17 IP Security............57 Figure 3.3-18 User Authentication ..........58...
  • Page 10 Figure A.3: EIA/TIA-568A ............94 Figure A.4: DB 9-pin female connector ........95 Appendix B Compatible SFP Transceivers ... 98 EKI-7659C_7659CI_Manual...
  • Page 11 Overview Sections include: Introduction Features Specifications Packing List Safety Precaution Chapter1...

  • Page 12: Introduction

    1.1 Introduction To create reliability in your network, the EKI-7659C comes equipped with a proprietary redundant network protocol—X-Ring that was developed by Advantech, which provides users with an easy way to establish a redundant Ethernet network with ultra high-speed recovery time less than 10 ms.

  • Page 13: Wide Operating Temperature

    1.1.5 Wide Operating Temperature The operating temperature of the EKI-7659C is between -10 ~ 60 ℃. With such a wide range, you can use the EKI-7659C in some of the harshest industrial environments that exist. 1.1.6 Easy Troubleshooting LED indicators make troubleshooting quick and easy. Each 10/100 Base-TX port has 2 LED indicators that display the link status, transmission speed and collision status.

  • Page 14: Features

    1.2 Features 2 Gigabit Copper/SFP combo ports, plus 8 Fast Ethernet ports SFP socket for Easy and Flexible Fiber Expansion Redundancy: Gigabit X-Ring (ultra high-speed recovery time<10ms), RSTP/STP (802.1w/1D) Management: Web, Telnet, Serial Console, Windows Utility and SNMP Control: VLAN/GVRP, QOS, IGMP Snooping, LACP, and Rate Limit Security: IP/MAC and port binding, DHCP Server, IP access list, 802.1x, SNMPv3 Diagnostic: Port Statistic, Port Mirroring, RMON, Trap, SNMP Alert, and Syslog Dual 12 ~ 48 V...

  • Page 15: Specification

    79 x 152 x 105 mm Dimensions (WxHxD) IP30, metal shell with solid mounting kits Enclosure DIN-rail, wall Mounting Environment -10 ~ 60 ℃ (14 ~ 140 ℉) Operating Temperature EKI-7659CI (Wide temp.): -40~75 ℃ (-40~167 ℉) 5 ~ 95% (non-condensing) Operating Humidity Chapter1...
  • Page 16 -40 ~ 85 ℃ (-40~185 ℉) Storage Temperature 0 ~ 95% (non-condensing) Storage Humidity 284,409 hours MTBF Certifications UL, 60950-1, CAN/CSA-C22.2 No.60950 Safety EU: EN55011, EN61000-6-4 EN55022, Class A, EN61000-3-2/3 EN55024 IEC61000-4-2/3/4/5/6/8 EN61000-6-2 IEC60068-2-32 Freefall IEC60068-2-27 Shock IEC60068-2-6 Vibration EKI-7659C_7659CI_Manual...

  • Page 17: Packing List

    1.4 Packing List 1 x EKI-7659C Industrial Managed Gigabit Ethernet Switch 1 x eAutomation Industrial Communication CD-ROM with software, and User manual 2 x Wall Mounting Bracket and Screws 1 x DIN-rail Mounting Bracket and Screws 1 x 8-pin RJ-45 to RS-232 serial cable 1 x DC Jack Cable φ2.0/150mm 1 x EKI-7659C Startup Manual 1.5 Safety Precaution...
  • Page 18 EKI-7659C_7659CI_Manual...

  • Page 19: Chapter 2 Installation

    Installation Sections include: LED Indicators Dimensions Mounting Network Connection Connection to a Fiber Optic Network Power Connection X-Ring Application Coupling Ring Application Dual Homing Application Chapter2...

  • Page 20: Led Indicators

    Chapter 2 Installation In this chapter, you will be given an overview of the EKI-7659C hardware installation procedures. 2.1 LED Indicators There are few LEDs display the power status and network status located on the front panel of EKI-7659C, each of them has its own specific meaning shown as below. Table 2.1: EKI-7659C LED Definition Color Description...

  • Page 21: Dimensions (Unit: Mm)

    2.2 Dimensions (unit: mm) Figure 2.1: Front View of EKI-7659C Chapter2...
  • Page 22 Figure 2.2: Side View of EKI-7659C EKI-7659C_7659CI_Manual...
  • Page 23 Figure 2.3: Rear View of EKI-7659C Chapter2...
  • Page 24 Figure 2.4: Top View of EKI-7659C EKI-7659C_7659CI_Manual...

  • Page 25: Mounting

    2.3 Mounting The EKI-7659C supports two mounting methods: DIN-rail & Wall. 2.3.1 Wall mounting EKI-7659C can be wall-mounted by using the included mounting kit. Then, hang on the EKI-7659C to the nails on the wall. First, use the screws included in the package to combine the EKI-7659C and metal mounting kit.

  • Page 26: Din-Rail Mounting

    2.3.2 DIN-rail Mounting You can also mount EKI-7659C on a standard DIN-rail by steps below. The DIN-rail kit is screwed on the industrial switch when out of factory. If the DIN-rail kit is not screwed on the industrial switch, please screw the DIN-rail kit on the switch first. First, hang the EKI-7659C to the DIN-rail with angle of inclination.
  • Page 27 Then, let the device down straight to slide over the rail smoothly. See Figure 2.7. Figure 2.7: Installation to DIN-rail Step 2 Chapter2...

  • Page 28: Network Connection

    2.4 Network Connection The EKI-7659C has 8 x RJ-45 ports that support connection to 10 Mbps Ethernet, or 100 Mbps Fast Ethernet, and half or full duplex operation. EKI-7659C can be connected to other hubs or switches via a twisted-pair straight-through or crossover cable up to 100m long.
  • Page 29 Figure 2.9: Transceiver Inserted Second, insert the fiber cable of LC connector into the transceiver. Figure 2.10: LC connector to the transceiver Chapter2...
  • Page 30 To remove the LC connector from the transceiver, please follow the steps shown below: First, press the upper side of the LC connector to release from the transceiver and pull it out. Figure 2.11: Remove LC connector Second, push down the metal loop and pull the transceiver out by the plastic handle. Figure 2.12: Pull out from the transceiver EKI-7659C_7659CI_Manual...

  • Page 31: Power Connection

    2.6 Power Connection The EKI-7659C supports dual +12 ~ 48 V power inputs and power-fail relay output. Figure 2.13: Pin Assignments of the Power Connector You can connect an alarm indicator, buzzer or other signaling equipment through the relay output. The relay opens if power input 1, 2 fails or port link down/break (″Open″ means if you connect relay output with an LED, the light would be off).

  • Page 32: X-Ring Application

    2.7 X-Ring Application The industrial switch supports the X-Ring protocol that can help the network system recover from network connection failure within 10ms or less and make the network system more reliable. The X-Ring algorithm is similar to Spanning Tree Protocol (STP) and Rapid STP (RSTP) algorithm but its recovery time is less than STP/RSTP.

  • Page 33: Coupling Ring Application

    2.8 Coupling Ring Application As the illustration shown below, users can use the X-Ring groups to form a coupling ring for redundant backup. It can ensure the transmissions between X-Ring groups not to fail. The following figure is a sample of coupling ring application. Note The Ethernet switches with firmware version before v3.0 use the X-Ring function that has the limitations as follows.

  • Page 34: Dual Homing Application

    2.9 Dual Homing Application The Dual Homing function is to prevent the connection loss between the particular X- Ring group and the upper level/core switch. Assign one port, and only one, to be the Dual Homing port that is the backup port in each single X-Ring group. The Dual Homing function only works when the X-Ring function is active.
  • Page 35 Configuration Sections include: RS-232 Console Commands Set Web Browser Chapter3...

  • Page 36: Chapter 3 Configuration

    Chapter 3 Configuration The EKI-7659C can be configured via RS-232 Console or the web browser. 3.1 RS-232 Console EKI-7659C’s RS-232 console is designed for rapidly configuring which provides the console management – CLI command. Attach the supplied cable, which one end is RJ-45 and the other end is female DB9, to connect EKI- 7659C and your host PC or terminal.
  • Page 37 Select the appropriate COM port, and set the parameter as the figure shown below (9600 for Baud Rate, 8 for Data Bits, None for Parity, 1 for Stop Bits, and None for Flow Control). Figure 3.1-3 COM Port Properties Setting Press Enter for login screen (If you can not find the login screen, press Enter one more time).
  • Page 38 After you have logged in to the system, you will see a command prompt. To enter CLI management interface, type in “enable” command. Figure 3.1-5 Command Line Interface EKI-7659C_7659CI_Manual...

  • Page 39: Commands Set

    3.2 Commands Set The following table lists the CLI commands and description. 3.2.1 Commands Level Table 3.1: Command Level Modes Access Method Prompt Exit Method About This Model Begin a session with Enter logout or quit. The user commands available your switch.

  • Page 40: System Commands Set

    3.2.3 System Commands Set Table 3.3: System Commands Set Commands Level Description Example Show switch configuration switch>show config show config Show console information switch#show terminal show terminal Save user configuration into switch#write memory write memory permanent memory (flash rom) Configure system name switch(config)#system name xxx system name [System Name]...

  • Page 41: Port Commands Set

    Show the information of IP security switch#show security show security Disable IP security function switch(config)#no security no security Disable IP security of HTTP server switch(config)#no security http no security http Disable IP security of telnet server switch(config)#no security telnet no security telnet 3.2.4 Port Commands Set Table 3.4: Port Commands Set...

  • Page 42: Trunk Commands Set

    form of this command to disable the port. show interface configuration status switch(config)#interface fastEthernet 2 show interface configuration switch(config-if)#show interface configuration show interface actual status switch(config)#interface fastEthernet 2 show interface status switch(config-if)#show interface status show interface statistic counter switch(config)#interface fastEthernet 2 show interface accounting switch(config-if)#show interface accounting Clear interface accounting...

  • Page 43: Spanning Tree Commands Set

    [portbase| 802.1q | gvrp] switch(vlan)#vlanmode 802.1q switch(vlan)#vlanmode gvrp No VLAN Switch(vlan)#no vlan no vlan Ported based VLAN configuration Add new port based VALN switch(vlan)#vlan port-based grpname test grpid vlan port-based grpname [Group Name] 2 port 2-4 grpid [GroupID] switch(vlan)#vlan port-based grpname test grpid port 2 port 2,3,4 [PortNumbers]...

  • Page 44: Qos Commands Set

    [0~61440] Configure spanning tree priority switch(config)#spanning-tree priority 32767 spanning-tree priority parameter [seconds] Use the spanning-tree max-age switch(config)#spanning-tree max-age 15 spanning-tree max-age global configuration command to change the interval between messages the spanning tree receives from the root switch. If a switch does not receive a bridge protocol data unit (BPDU) message from the root switch...

  • Page 45: Igmp Commands Set

    Displays the information of QoS Switch#show qos show qos configuration Disable QoS function switch(config)#no qos no qos 3.2.9 IGMP Commands Set Table 3.9: QOS Commands Set Commands Level Description Example Enable IGMP snooping function switch(config)#igmp enable igmp enable Set IGMP query to auto mode switch(config)#Igmp-query auto Igmp-query auto Set IGMP query to force mode...

  • Page 46: Port Mirroring Commands Set

    Set SNMP agent system location switch(config)#snmp system-location lab snmp system-location [System Location] Set SNMP agent system contact switch(config)#snmp system-contact where snmp system-contact [System Contact] Select the agent mode of SNMP switch(config)#snmp agent-mode v1v2cv3 snmp agent-mode [v1v2c|v3|v1v2cv3] [Community] Add SNMP community string. switch(config)#snmp community-strings public snmp community-strings right...

  • Page 47: Commands Set

    Commands Level Description Example Set RX destination port of monitor switch(config)#monitor rx monitor rx function Set TX destination port of monitor switch(config)#monitor tx monitor tx function Show port monitor information switch#show monitor show monitor Configure source port of monitor switch(config)#interface fastEthernet 2 monitor [RX|TX|Both] function...

  • Page 48: Tftp Commands Set

    Disable 802.1x function switch(config)#no 8021x no 8021x 3.2.14 TFTP Commands Set Table 3.14: TFTP Commands Set Commands Level Description Defaults Example Save configuration to TFTP and need switch(config)#backup flash:backup_cfg backup flash:backup_cfg to specify the IP of TFTP server and the file name of image. Get configuration from TFTP server switch(config)#restore flash:restore_cfg restore flash:restore_cfg...

  • Page 49: Sntp Commands Set

    switch(config-if)#no event systemlog Disable port event for SMTP switch(config)#interface fastethernet 3 no event smpt switch(config-if)#no event smtp Show system log client & server switch#show systemlog show systemlog information 3.2.16 SNTP Commands Set Table 3.16: SNTP Commands Set Commands Level Description Example Enable SNTP function switch(config)#sntp enable...
  • Page 50 Disable ring master switch(config)# no ring master no ring master Disable couple ring switch(config)# no ring couplering no ring couplering Disable dual homing switch(config)# no ring dualhoming no ring dualhoming EKI-7659C_7659CI_Manual...

  • Page 51: Web Browser

    3.3 Web Browser EKI-7659C provides a convenient configuring way via web browser. You can follow the steps below to access EKI-7659C. EKI-7659C’s default IP is 192.168.1.1. Make sure your host PC and EKI-7659 are on the same logical sub-network. Warning Your host PC should be in the same VLAN setting with EKI-7659C, or the management will not be configured.
  • Page 52 In the main page, you can find the tree menu structure of the EKI-7659C in the left side. Click the “+” symbol to unroll the hiding hyperlink, and click the hyperlink to open the function page you want to configure. Figure 3.3-3 Main page EKI-7659C_7659CI_Manual...

  • Page 53: System

    3.3.1 System System Information Here you can view the system information and assign the system name and location to make this switch more easily to be identified on your network. System Name: Assign the name of the switch. The maximum length is 64 bytes. System Description: Displays the description of switch.
  • Page 54 IP Configuration This interface allows users to configure the switch to receive an IP address from DHCP server or manually fill in IP Address, Subnet Mask, Gateway, IP addresses of the primary and the secondary DNS servers. • DHCP Client: Enable or disable the DHCP client function. When DHCP client function is enabled, the industrial switch will be assigned an IP address from the network DHCP server.
  • Page 55 DHCP Server – System configuration DHCP is the abbreviation of Dynamic Host Configuration Protocol that is a protocol for assigning dynamic IP addresses to devices on a network. With dynamic addressing, a device can have a different IP address every time it connects to the network. In some systems, the device's IP address can even change while it is still connected.
  • Page 56 DHCP Client – Client Entries When the DHCP server function is active, the system will collect the DHCP client information and displays them here. Figure 3.3-7 DHCP Server – Client Entries EKI-7659C_7659CI_Manual...
  • Page 57 DHCP Server - Port and IP Bindings You can assign a specific IP address, which is the IP in dynamic IP assign range, to the specific port. When a device is connecting to the port and asks for dynamic IP assigning, the system will assign the IP address to the connected device.
  • Page 58 TFTP - Update Firmware Trivial File Transfer Protocol (TFTP) is a very simple file transfer protocol, with the functionality of a very basic form of FTP. It provides the functions to allow the user to update the switch firmware. Before updating, make sure you have your TFTP server ready and the firmware image is on the TFTP server.
  • Page 59 TFTP – Restore Configuration You can restore Flash ROM value from TFTP server, but you must put the image file on TFTP server first, switch will download back flash image. TFTP Server IP Address: fill in the TFTP server IP. Restore File Name: fill in the correct restore file name.
  • Page 60 TFTP - Backup Configuration You can save current Flash ROM value from the switch to TFTP server, then go to the TFTP restore configuration page to restore the Flash ROM value. TFTP Server IP Address: fill in the TFTP server IP Backup File Name: fill the file name Click Apply .
  • Page 61 System Event Log – Syslog Configuration Configure the system event mode and system log server IP which you want to collect. Syslog Client Mode: select the system log mode – client only, server only, or both S/C. System Log Server IP Address: assign the system log server IP. Click Reload to refresh the events log.
  • Page 62 System Event Log - SMTP Configuration You can set up the mail server IP, mail account, account password, and forwarded email account for receiving the event alert. Email Alert: enable or disable the email alert function. SMTP Server IP: set up the mail server IP address (when Email Alert enabled, this function will then be available).
  • Page 63 System Event Log - Event Configuration You can select the ‘Syslog’ and ‘SMTP’ events for each port. When selected events occur, the system will send out the log information to the system log server. After configuring, Click Apply . System event selection: 4 selections – Device cold start, Device warm start, SNMP Authentication Failure, and X-ring topology change.
  • Page 64 Fault Relay Alarm Power Failure: Mark the check box to enable the function of lighting up FAULT LED on the panel when power fails. Port Link Down/Broken: Mark the check box to enable the function of lighting up FAULT LED on the panel when ports’...
  • Page 65 SNTP Configuration You can configure the SNTP (Simple Network Time Protocol) settings. The SNTP allows you to synchronize switch clocks on the Internet. SNTP Client: enable or disable SNTP function to get the time from the SNTP server. Daylight Saving Time: enable or disable daylight saving time function. When daylight saving time is enabled, you need to configure the daylight saving time period.
  • Page 66 ZP5 - USSR Zone 4 +5 hours 5 pm ZP6 - USSR Zone 5 +6 hours 6 pm WAST - West Australian Standard +7 hours 7 pm CCT - China Coast, USSR Zone 7 +8 hours 8 pm JST - Japan Standard, USSR Zone 8 +9 hours 9 pm EAST - East Australian Standard GST...
  • Page 67 IP Security IP security function allows the user to assign 10 specific IP addresses that have permission to access the switch through the web browser for the securing switch management. IP Security Mode: when this option is in Enable mode, the Enable HTTP Server and Enable Telnet Server check boxes will then be available.
  • Page 68 User Authentication You can change login user name and password for the management security issue. User name: Key in the new user name (The default is “admin”) Password: Key in the new password (The default is “admin”) Confirm password: Re-type the new password And then, click Apply to apply the configuration.
  • Page 69 3.3.2 Port Port setting includes Port Statistics, Port Control, Port Trunk, Port Mirroring, and Rate Limiting. User can use this interface to set the parameters and control the packet flow among the ports. Port Statistics The following information provides the current port statistic information. Port: The port number.
  • Page 70 Port Control In Port Control, you can pull down the selection items to set the parameters of each port to control the transmitting/receiving packets. Port: select the port that you want to configure. State: current port status. The port can be set to disable or enable mode. If the port setting is disable then will not receive or transmit any packet.
  • Page 71 Port Trunk The Link Aggregation Control Protocol (LACP) provides a standardized means for exchanging information between Partner Systems on a link to allow their Link Aggregation Control instances to reach agreement on the identity of the Link Aggregation Group to which the link belongs, move the link to that Link Aggregation Group, and enable its transmission and reception functions in an orderly manner.
  • Page 72 Aggregator Information When you have set up the aggregator setting with LACP disabled, you will see the local static trunk group information here. Figure 3.3-22 Aggregator Information EKI-7659C_7659CI_Manual...
  • Page 73 State Activity When you had set up the LACP aggregator, you can configure port state activity. You can mark or un- mark the port. When you mark the port and click Apply the port state activity will change to Active. Opposite is Passive.
  • Page 74 Port Mirroring The Port mirroring is a method for monitoring traffic in switched networks. Traffic through ports can be monitored by one specific port. That means traffic which goes in or out the monitored (source) ports will be duplicated into the mirror (destination) port. Destination Port: There is only one port can be selected to be destination (mirror) port for monitoring both RX and TX traffic which come from source port.
  • Page 75 Rate Limiting You can set up the bandwidth rate and frame limitation type for each port. Ingress Limit Frame type: select the frame type that wants to filter. The frame types have 4 options for selecting: All, Broadcast/Multicast/Flooded Unicast, Broadcast/Multicast and Broadcast only. Broadcast/Multicast/Flooded Unicast, Broadcast/Multicast and Bbroadcast only types are only for ingress frames.
  • Page 76 3.3.3 Protocol User can set the layer 2 protocol setting via this interface. VLAN configuration A Virtual LAN (VLAN) is a logical network grouping that limits the broadcast domain, which would allow you to isolate network traffic, so only the members of the VLAN will receive traffic from the same members of VLAN.
  • Page 77 VLAN configuration - Port-based VLAN Packets can go among only members of the same VLAN group. Note all unselected ports are treated as belonging to another single VLAN. If the port-based VLAN enabled, the VLAN-tagging is ignored. In order for an end station to send packets to different VLAN groups, it itself has to be either capable of tagging packets it sends with VLAN tags or attached to a VLAN-aware bridge that is capable of classifying and tagging the packet with different VLAN ID based on not only default PVID but also other information about the packet, such as the protocol.
  • Page 78 Figure 3.3-28 Port based mode-Add interface You will see the VLAN displays. Use Delete to delete unwanted VLAN. to modify existing VLAN group. Edit Note Remember to execute the “Save Configuration” action, otherwise the new configuration will lose when switch power off. EKI-7659C_7659CI_Manual...
  • Page 79 802.1Q VLAN Tagged-based VLAN is an IEEE 802.1Q specification standard. Therefore, it is possible to create a VLAN across devices from different switch venders. IEEE 802.1Q VLAN uses a technique to insert a “tag” into the Ethernet frames. Tag contains a VLAN Identifier (VID) that indicates the VLAN numbers. You can create Tag-based VLAN, and enable or disable GVRP protocol.
  • Page 80 802.1Q Configuration Pull down the select item menu of VLAN Operation Mode, and select Port Based mode. Enable GVRP Protocol: mark the check box to enable GVRP protocol that allows network devices to dynamically exchange VLAN configuration information with other devices. If GVRP protocol is not enabled, user has to set the tagging information manually.
  • Page 81 Group Configuration Edit the existing VLAN Group. Select the VLAN group in the table list. Click Apply Figure 3.3-30 802.1Q Group Configuration You can Change the VLAN group name and VLAN ID. Click Apply . Figure 3.3-31 802.1Q Group Configuration-Edit Chapter3...
  • Page 82 Rapid Spanning Tree The Rapid Spanning Tree Protocol (RSTP) is an evolution of the Spanning Tree Protocol and provides for faster spanning tree convergence after a topology change. The system also supports STP and the system will auto detect the connected device that is running STP or RSTP protocol. RSTP - System Configuration User can view spanning tree information about the Root Bridge User can modify RSTP state.
  • Page 83 RSTP - Port Configuration You can configure the path cost and priority of each port. Select the port in Port column. Path Cost: The cost of the path to the other bridge from this transmitting bridge at the specified port. Enter a number 1 through 200000000.
  • Page 84 SNMP Configuration Simple Network Management Protocol (SNMP) is the protocol developed to manage nodes (servers, workstations, routers, switches and hubs etc.) on an IP network. SNMP enables network administrators to manage network performance, find and solve network problems, and plan for network growth. Network management systems learn of problems by receiving traps or change notices from network devices implementing SNMP.
  • Page 85 Trap Configuration A trap manager is a management station that receives traps, the system alerts generated by the switch. If no trap manager is defined, no traps will issue. Create a trap manager by entering the IP address of the station and a community string.
  • Page 86 SNMPV3 Configuration Configure the SNMP V3 function. Context Table Configure SNMP v3 context table. Assign the context name of the context table. Click Apply to add context name. User Table Configure SNMP v3 user table.. User ID: set up the user name. Authentication Password: set up the authentication password.
  • Page 87 Figure 3.3-36 SNMP V3 configuration interface Chapter3...
  • Page 88 QoS Configuration Here you can configure Qos policy and priority setting, per port priority setting, COS and TOS setting. QoS Policy and Priority Type • Qos Policy: Select the QoS policy rule. Use an 8,4,2,1 weighted fair queuing scheme: The switch will follow 8:4:2:1 rate to process priority queue from High to lowest queue.
  • Page 89 Figure 3.3-37 QoS Configuration interface Chapter3...
  • Page 90 IGMP Configuration The Internet Group Management Protocol (IGMP) is a communications protocol used to manage the membership of Internet Protocol multicast groups. IGMP is used by IP hosts and adjacent multicast routers to establish multicast group memberships. It is an integral part of the IP multicast specification, like ICMP for unicast connections.
  • Page 91 X-Ring X-Ring provides a faster redundant recovery than Spanning Tree topology. The action is similar to STP or RSTP, but the algorithms between them are not the same. In the X-Ring topology, each switch should be enabled with the X-Ring function and two ports of each switch should be configured as the member ports in the ring.
  • Page 92 Figure 3.3-39 X-ring Interface Note To enable the X-Ring function, users must disable the RSTP first. The X-Ring function and RSTP function cannot both be activated on a single switch. Remember to execute the “Save Configuration” action, otherwise the new configuration will lose when switch powers off.
  • Page 93 3.3.4 Security In this section, you can configure 802.1x and MAC address table. 802.1X/Radius Configuration 802.1x is an IEEE authentication specification that allows a client to connect to a wireless access point or wired switch but prevents the client from gaining access to the Internet until it provides authority, like a user name and password that are verified by a separate server.
  • Page 94 802.1x/Radius - Port Configuration You can configure 802.1x authentication state for each port. The State provides Disable, Accept, Reject and Authorize. Use “Space” key change the state value. Reject: the specified port is required to be held in the unauthorized state. Accept: the specified port is required to be held in the Authorized state.
  • Page 95 802.1X/Radius - Misc Configuration Quiet Period: set the period during which the port doesn’t try to acquire a supplicant. TX Period: set the period the port wait for retransmit next EAPOL PDU during an authentication session. Supplicant Timeout: set the period of time the switch waits for a supplicant response to an EAP request.
  • Page 96 MAC Address Table Use the MAC address table to ensure the port security. You can add a static MAC address; it remains in the switch's address table, regardless of whether the device is physically connected to the switch. This saves the switch from having to re-learn a device's MAC address when the disconnected or powered-off device is active on the network again.
  • Page 97 MAC Address Table - MAC Filtering By filtering MAC address, the switch can easily filter pre-configure MAC address and reduce the un- safety. You can add and delete filtering MAC address. Figure 3.3-44 MAC Filtering interface MAC Address: Enter the MAC address that you want to filter. Click If you want to delete the MAC address from filtering table, select the MAC address and click Delete .
  • Page 98 MAC Address Table - All MAC Addresses You can view the port of the connected device’s MAC address and related devices’ MAC address. Select the port. The selected port of static MAC address information will be displayed here. Click Clear MAC Table to clear the current port static MAC address information on screen.
  • Page 99 Factory Default Reset switch to default configuration. Click Reset to reset all configurations to the default value. Figure 3.3-46 Factory Default interface Save Configuration Save all configurations that you have made in the system. To ensure the all configuration will be saved, click Save to save the all configuration to the flash memory.
  • Page 100 EKI-7659C_7659CI_Manual...
  • Page 101 Troubleshooting...
  • Page 102 Chapter 4 Troubleshooting Verify that is using the included or appropriate power cord/adapter. Don’t use the power adaptor with DC output voltage higher than the power rating of the device. Otherwise, the device will burn down. Select the proper UTP cable to construct the network. Please check that is using the right cable.
  • Page 103 Pin Assignments & Wiring...
  • Page 104 Appendix A Pin Assignments & Wiring It is suggested to adopt ELA/TIA as the wiring of the RJ-45. Figure A.1: RJ-45 Pin Assignments Figure A.2: EIA/TIA-568B Figure A.3: EIA/TIA-568A EKI-7659C_7659CI_Manual...
  • Page 105 Figure A.4: DB 9-pin female connector DB9 Connector RJ-45 Connector 1 Orange/White 2 Orange 3 Green/White 4 Blue 5 Blue/White 6 Green 7 Brown/White 8 Brown...
  • Page 106 EKI-7659C_7659CI_Manual...
  • Page 107 Compatible SFP Transceivers...
  • Page 108 Appendix B Compatible SFP Transceivers The table below shows compatible SFP transceivers for EKI-7659C. Transmission Item Brand Part Number Mode Distance AVAGO AFBR-5710PZ 550m APAC LM28-C3S-TC-N 550m Multi-mode HOATECH HTI8512-X5ATO 550m SPACE SHUTTLE S56L-S85-6L-N 550m SP-GB-LX 10km LuminentOIC SP-GB-ELX 20km SP-GB-XD 50km Single-mode...
  • Page 109 Ethernet Modules Click to view products by manufacturer: Advantech Other Similar products are found below : TDKEZW3 V23993-USB1029A 100-POE4 I210T1BLK X520QDA1 BCM84794A1KFSBG X520DA2OCP 808-38157 7506GX2 TC EXTENDER 2001 ETH-2S 105FX-SC-MDR 110FX2-SC BCM54291B0IQLEG 7000-P3201-P050150 750-1415 750-494 750-495 750-612 750-613 750-627 750-643 750-940 753-440 753-540 753-650/003-000 852-1322 852-1328 852-1812 852-1813 852-1816 LANTICK PE- 0-16 LANTICK PE-16-0 RBMTXLITE-L4X2.X.X.X.X.

This manual is also suitable for:

Eki-7659cEki-7659c-ae
