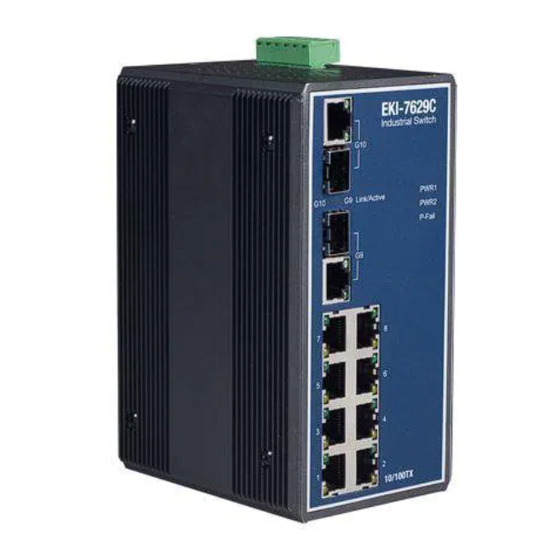

- Page 1 EKI-7629C/CI 8+2G Combo Port Gigabit Unmanaged Industrial Ethernet Switch User Manual...
- Page 2 The documentation and the software included with this product are copyrighted 2007 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements in the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd.
- Page 3 Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defective, it will be repaired or replaced at no charge during the warranty period. For out-of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.
- Page 4 Step 2. Contact your distributor, sales representative, or Advantech’s customer service center for technical support if you need additional assistance. Please have the following information ready before you call: - Product name and serial number...
- Page 5 Safety Instructions 1. Read these safety instructions carefully. 2. Keep this User's Manual for later reference. 3. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning. 4. For plug-in equipment, the power outlet socket must be located near the equipment and must be easily accessible.
- Page 6 Safety Precaution - Static Electricity Follow these simple precautions to protect yourself from harm and the products from damage. 1. To avoid electrical shock, always disconnect the power from your PC chassis before you work on it. Don't touch any components on the CPU card or other cards while the PC is 2.
-
Page 7: Table Of Contents
2.1 LED Indicators ............ 9 Table 2.1: EKI-2525PA LED Definition.......9 2.2 Dimensions (units: mm) ........10 Figure 2.1: Front View of EKI-7629C/CI ....10 Figure 2.2: Side View of EKI-7629C/CI.....11 Figure 2.3: Rear View of EKI-7629C/CI ....12 Figure 2.4: Top View of EKI-7629C/CI .....12 2.3 Mounting ............ - Page 8 EKI-7629C_7629CI_Manual_ed2.doc viii...
-
Page 9: Overview
Overview Sections include: Introduction Features Specifications Packing List Safety Precaution Chapter1... -
Page 10: High-Speed Transmissions
P-Fail LED will turn on and send an alarm through a relay output for notifying user. 1.1.4 Flexible Mounting EKI-7629C/CI is extremely compact (79 x 152 x 105 mm) and can be mounted on a DIN-rail or a panel, so it is suitable for any space-constrained environment. 1.1.5... -
Page 11: Wide Operating Temperature
Wide Operating Temperature The operating temperature of the EKI-7629C is between -10 ~ 60℃ and EKI-7629CI is between -40 ~ 75 ℃. With such a wide range, you can use the EKI-7629C/CI in some of the harshest industrial environments that exist. -
Page 12: Features
ESD protection for Ethernet • Supports +12 ~ 48 V power input • Provides flexible mounting: DIN-rail, Wall Mounting • Supports operating temperature from -10 ~ 60 ℃ (EKI-7629C) and Wide range operating temperature from -40 ~ 75 ℃ (EKI-7629CI) EKI-7629C_7629CI_Manual_ed2.doc... -
Page 13: Specification
1.3 Specification Communications IEEE 802.3, 802.3ab, 802.3u, 802.3x, 802.3z Compatibility 10/100/1000Base-TX, 100Base-FX, 1000Base-SX/LX Ethernet : Up to 100 m (Cat.5e, Cat.6 RJ-45 Transmission Distance cable suggested for Gigabit port) Gigabit Fiber : Up to 110km (depends on the SFP module) Ethernet : Up to 100 Mbps Transmission Speed Gigabit Copper : Up to 10000 Mbps... - Page 14 Environment EKI-7629C : -10 ~ 60 ℃ Operating Temperature EKI-7629CI : -40 ~ 75 ℃ 5% ~ 95% (non-condensing) Operating Humidity -40 ~ 85 ℃ Storage Temperature Certifications UL 60950-1, CAN/CSA-C22.2 No.60950 Safety U.S.A.: FCC Part 15 CISPR 22 EU: EN55011...
-
Page 15: Packing List
1.4 Packing List • 1 x EKI-7629C/CI 8+2G Combo Port Gigabit Unmanaged Industrial Ethernet Switch • 1 x eAutomation Industrial Communication CD-ROM with software, and User manual • 2 x Wall Mounting Bracket and Screws • 1 x DIN-rail Mounting Bracket and Screws •... -
Page 16: Installation
Installation Sections include: LED Indicators Dimensions Mounting Network Connection Fiber Optic Network Connection Power Connection EKI-7629C_7629CI_Manual_ed2.doc... - Page 17 2.1 LED Indicators There are few LEDs display the power status and network status located on the front panel of EKI-7629C/CI, each of them has its own specific meaning as the table below. Table 2.1: EKI-2525PA LED Definition Color...
-
Page 18: Dimensions (Units: Mm)
2.2 Dimensions (units: mm) Figure 2.1: Front View of EKI-7629C/CI EKI-7629C_7629CI_Manual_ed2.doc... - Page 19 Figure 2.2: Side View of EKI-7629C/CI Chapter2...
- Page 20 Figure 2.3: Rear View of EKI-7629C/CI Please refer to page 16 for pin assignment. Figure 2.4: Top View of EKI-7629C/CI EKI-7629C_7629CI_Manual_ed2.doc...
-
Page 21: Mounting
EKI-7629C/CI can be wall-mounted by using the included mounting kit. Then, hang on the EKI-7629C/CI to the nails on the wall. First, use the screws included in the package to combine the EKI-7629C/CI and metal mounting kit. And then you can install the device firmly via the components, please see Figure 2.5 as below. -
Page 22: Din-Rail Mounting
The DIN-rail kit is screwed on the industrial switch when out of factory. If the DIN-rail kit is not screwed on the industrial switch, please screw the DIN-rail kit on the switch first. First, hang the EKI-7629C/CI to the DIN-rail with angle of inclination. See figure 2.6. Figure 2.6: Installation to DIN-rail Step 1... - Page 23 Then, let the device down straight to slide over the rail smoothly. See Figure 2.7 Figure 2.7: Installation to DIN-rail Step 2 Chapter2...
-
Page 24: Network Connection
2.4 Network Connection The EKI-7629C/CI has 8 x RJ-45 ports that support connection to 10 Mbps Ethernet, or 100 Mbps Fast Ethernet, and half or full duplex operation. EKI-7629C/CI can be connected to other hubs or switches through a twisted-pair straight through the cable or a crossover cable up to 100m long. -
Page 25: Troubleshooting
Troubleshooting Chapter2... - Page 26 Chapter 3 Troubleshooting Power Input Verify that is using the right power cord/adapter 48 V , please don’t use the power adaptor with DC output voltage higher than 48V, or it will burn this converter down. Cable Select the proper UTP cable to construct user network. Please check that is using the right cable.
-
Page 27: Appendix A Pin Assignment & Wiring
Pin Assignment & Wiring Chapter2... - Page 28 Appendix A Pin Assignment & Wiring It is suggested to adopt ELA/TIA as the wiring of the RJ-45. Figure A.1: RJ-45 Pin Assignment Figure A.2: EIA/TIA-568B Figure A.2: EIA/TIA-568A EKI-7629C_7629CI_Manual_ed2.doc...
- Page 29 Compatible SFP Modules Chapter2...
-
Page 30: Appendix B Compatible Sfp Module
Appendix B Compatible SFP Module The table below shows compatible SFP modules for EKI-7629C/CI Table B.1: Compatible SFP Module List Transmission Item Brand Part Number Mode Distance AVAGO AFBR-5710PZ 550m APAC LM28-C3S-TC-N 550m Multi-Mode HOATECH HTI8512-X5ATO 550m SPACE SHUTTLE S56L-S85-6L-N...
