- Page 1 EKI-2728 8-port Industrial Unmanaged Gigabit Ethernet Switch User Manual...
- Page 2 The documentation and the software included with this product are copyrighted 2007 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements in the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd.
- Page 3 Because of Advantech′s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defective, it will be repaired or replaced at no charge during the warranty period. For out-of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.
- Page 4 Step 2. Contact your distributor, sales representative, or Advantech’s customer service center for technical support if you need additional assistance. Please have the following information ready before you call: - Product name and serial number...
- Page 5 Safety Instructions 1. Read these safety instructions carefully. 2. Keep this User's Manual for later reference. 3. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning. 4. For plug-in equipment, the power outlet socket must be located near the equipment and must be easily accessible.
- Page 6 Safety Precaution - Static Electricity Follow these simple precautions to protect yourself from harm and the products from damage. 1. To avoid electrical shock, always disconnect the power from your PC chassis before you work on it. Don't touch any components on the CPU card or other cards while the PC is 2.
-
Page 7: Table Of Contents
Contents Chapter 1 Overview........... 2 1.1 Introduction ............2 1.1.1 High-Speed Transmissions ....... 2 1.1.2 Dual Power Input ........2 1.1.3 Flexible Mounting ........2 1.1.4 Advanced Protection ......... 2 1.1.5 Wide Operating Temperature ....2 1.1.6 Easy Troubleshooting........ 2 1.2 Features.............. - Page 8 EKI-2728 User Manual.doc viii...
- Page 9 Overview Sections include: Introduction Features Specifications Packing List Safety Precaution Chapter1...
-
Page 10: Overview

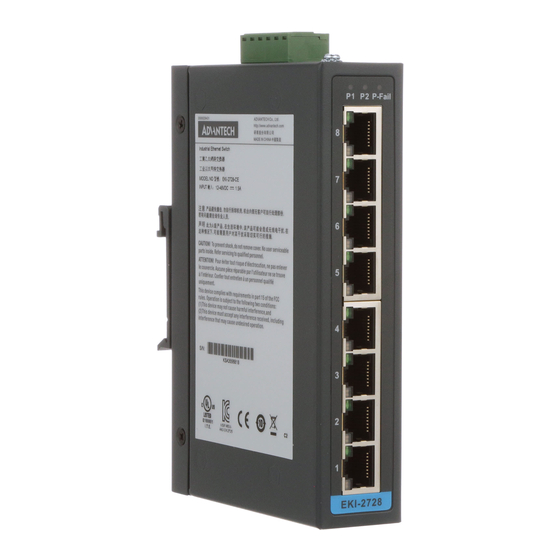

Chapter 1 Overview 1.1 Introduction The EKI-2728 is a full industrial Gigabit Ethernet switch. Featuring 8 x 10/100/1000Base-TX ports, the EKI-2728 is designed not only to handle data intensive applications, but by also featuring the "Jumbo Frames" function with an MTU (Maximum Transmission Unit) up to 9Kbytes in one frame, the EKI-2728 can handle voice, video, and even large multimedia transmissions at Gigabit high speeds. -
Page 11: Features
1.2 Features • Provides 8 Gigabit Ethernet ports with Auto Negotiation • Supports 10/100/1000Mbps Auto Negotiation • Supports jumbo frame transmission up to 9Kbytes • Provides surge (EFT) protection 3,000 V for power line • Supports 4,000 V Ethernet ESD protection •... -
Page 12: Specification
1.3 Specification Communications IEEE 802.3, 802.3u, 802.3x, 802.3ab Standard 10/100/1000Base-TX Up to 100m (4-wire Cat.5e, Cat 6 RJ-45 cable) Transmission Distance Up to 1000Mbps Transmission Speed Interface 8 x RJ-45 Connectors 6-pin removable screw terminal (power & relay) Unit: P1, P2, P-Fail LED Indicators 10/100/1000TX: Link/Active, 1000M Power... - Page 13 Certifications UL, 60950-1, CAN/CSA-C22.2 No.60950 Safety U.S.A.: FCC Part 15 CISPR 22 EU: EN55011, EN61000-6-4 EN55022, Class A, EN61000-3-2/3 EN55024 IEC61000-4-2/3/4/5/6/8/11/12 EN61000-6-2 IEC60068-2-32 Freefall IEC60068-2-27 Shock IEC60068-2-6 Vibration Chapter1...
-
Page 14: Packing List
1.4 Packing List • 1 x EKI-2728 Industrial Ethernet Switch • 1 x eAutomation Industrial Communication CD-ROM with software, and User manual • 2 x Wall Mounting Bracket and Screws • 1 x DIN-rail Mounting Bracket and Screws • 1 x EKI-2728 Startup Manual •... - Page 15 Installation Sections include: LED Indicators Dimensions Mounting Network Connection Power Connection Chapter2...
-
Page 16: Installation
Chapter 2 Installation In this chapter, you will be given an overview of the EKI-2728 hardware installation procedures. 2.1 LED Indicators There are few LEDs display the power status and network status located on the front panel of EKI-2728, each of them has their own specific meaning as below table. Table 2.1: EKI-2728 LED Definition Color Description... -
Page 17: Dimensions (Units: Mm)
2.2 Dimensions (units: mm) Figure 2.1: Front View of EKI-2728 Chapter2... - Page 18 Figure 2.2: Side View of EKI-2728 EKI-2728 User Manual.doc...
- Page 19 Figure 2.3: Rear View of EKI-2728 Chapter2...
- Page 20 The power & relay terminal block is located on the top. Please refer to page 16 for pin assignment. Figure 2.4: Top View of EKI-2728 EKI-2728 User Manual.doc...
-
Page 21: Mounting
2.3 Mounting The EKI-2728 supports two mounting methods: DIN-rail & Wall. 2.3.1 Wall mounting EKI-2728 can be wall-mounted by using the included mounting kit. Then, hang on the EKI-2728 to the nails on the wall. First, use the screws included in the package to combine the EKI-2728 and metal mounting kit. -
Page 22: Din-Rail Mounting
2.3.2 DIN-rail Mounting You can also mount EKI-2728 on a standard DIN-rail by the steps below. The DIN-rail kit is screwed on the industrial switch when out of factory. If the DIN-rail kit is not screwed on the industrial switch, please screw the DIN-rail kit on the switch first. First, hang the EKI-2728 to the DIN-rail with angle of inclination. - Page 23 Then, let the device down straight to slide over the rail smoothly. See Figure 2.7 Figure 2.7: Installation to DIN-rail Step 2 Chapter2...
-
Page 24: Network Connection
2.4 Network Connection The EKI-2728 has 8 x RJ-45 ports that support connection to 10 Mbps Ethernet, 100 Mbps Fast Ethernet, or 1000 Mbps Gigabit Ethernet, and half or full duplex operation. EKI-2728 can be connected to other hubs/switches through a twisted-pair straight- through cable or a crossover cable up to 100m long. - Page 25 Troubleshooting Chapter2...
-
Page 26: Troubleshooting
Chapter 3 Troubleshooting Power Input Verify that is using the right power cord/adapter (+12~48 V ), please don’t use the power adapter with DC output voltage higher than 48V, or it will burn this converter down. Cable Select the proper UTP/STP cable to construct your network. Please check that you are using the right cable. - Page 27 Pin Assignment & Wiring Chapter2...
-
Page 28: Appendix A Pin Assignment & Wiring
Appendix A Pin Assignment & Wiring It is suggested to adopt ELA/TIA as the wiring of the RJ-45. Figure A.1: RJ-45 Pin Assignment Figure A.2: EIA/TIA-568B Figure A.2: EIA/TIA-568A EKI-2728 User Manual.doc...
