On screen appears the duration of the recorded sequence, the size that occupies
in the internal memory and the transport stream rate. In order to stop the recording press
the UTILITIES [22] and select the option Stop recording.
In order to play the previously recorded sequence, press the UTILITIES
and select the PVR Playback option using the rotary selector [1]. In the image it will
appear an icon indicating that the video is being played
the sequence selecting Pause Playing. When is completed, on screen appears the
pause icon. Select the Stop Playing option to back to the tuned channel viewing.
5.22

Antenna Alignment Function

It allows executing the function Antenna Alignment to align antennas using a
faster sweep without display of numerical measures. The display appears divided in two
parts, the left one shows the spectrum of the signals detected in the band and on the
right two analogue bars represents the more high signal level found during the last
carried out sweeping. The left bar shows the peak value with a certain persistence. The
right bar shows a filtered average value.
09/2009
RECORDING
SIZE
VIDEO:
MPEG-2
MP@ML
VPID: 111
AUDIO:
MPEG-1 L-2
APID: 112
NETW.:
12.9 E
OSD: ON
VTV 1
NID: 12674

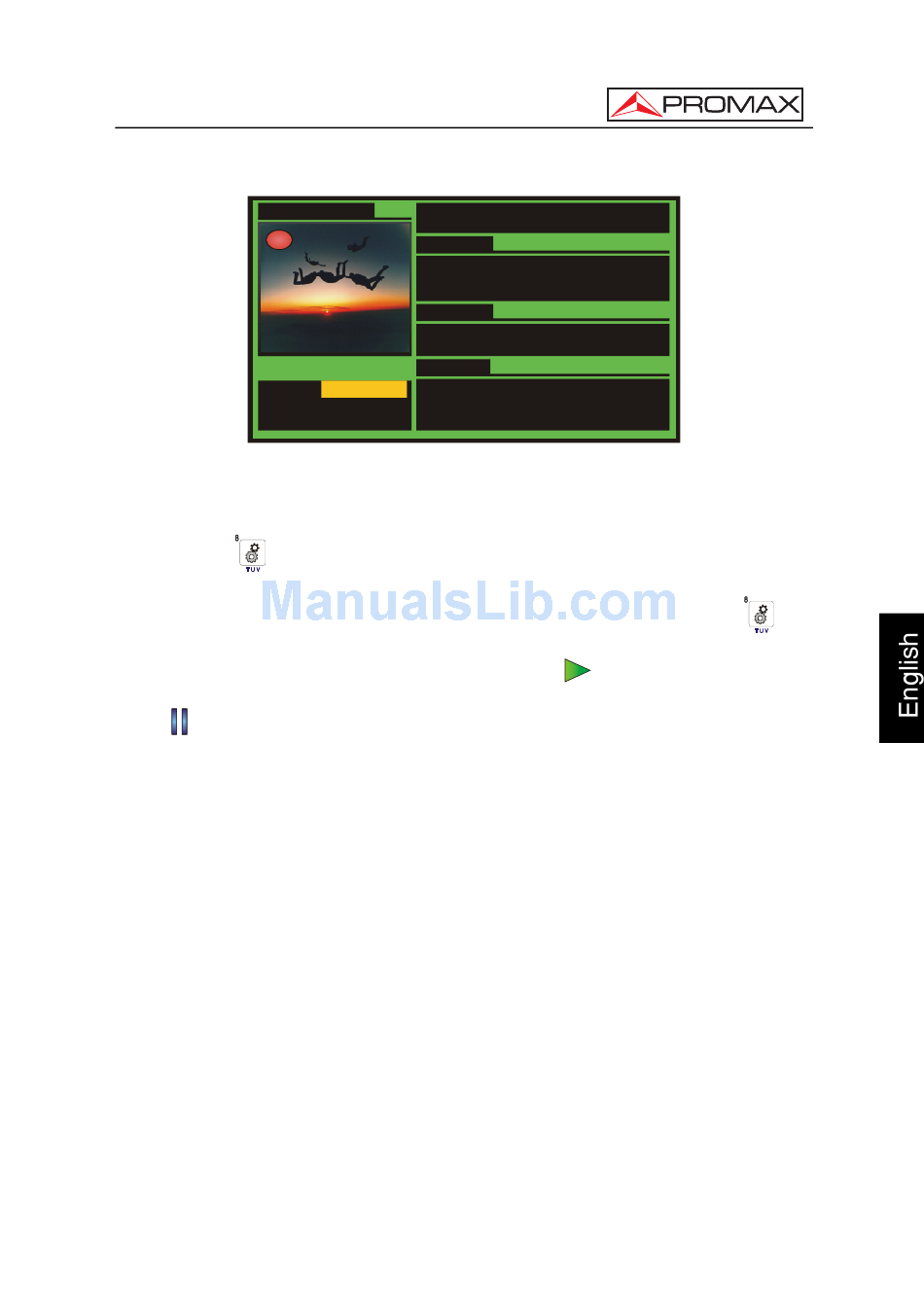

Figure 62.- Digital channel recording.
00:00:22
12.6 MB 4.0 Mb/s
2797 kb/s
720x576i 4:3
TSID: 97 25Hz
192 kb/s
LANGUAGE: es
SID: 801
, the option can be stopped
