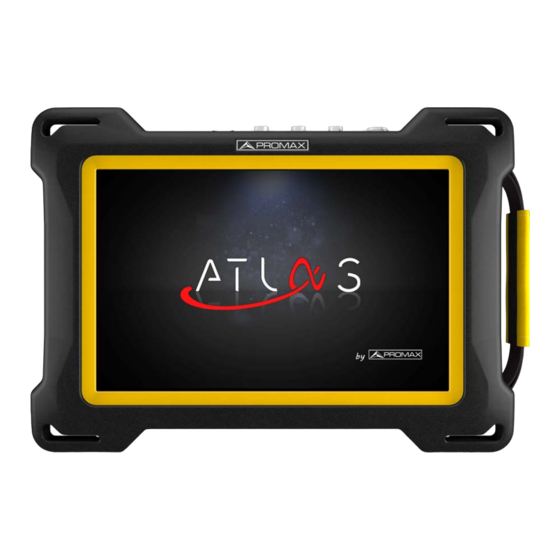

Promax ATLAS NG Manual

Universal broadcast analyzer
Hide thumbs Also See for ATLAS NG:
Table of Contents

Advertisement

Quick Links

Download this manual
NG
ATLAS
UNIVERSAL BROADCAST
ANALYZER
-0 MI2207-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATLAS NG and is the answer not in the manual?

Questions and answers

Rickey Luke
February 3, 2025

How do i build satellite channel plans

0
1 comments:
Mr. Anderson
February 10, 2025

To build satellite channel plans for the Promax ATLAS NG, follow these steps:

1. If a proper channel plan is not available, you can add or create a new one.
2. Channels in a channel plan have pre-set parameters, including supply voltage, polarization, and satellite band.
3. These parameters cannot be changed from the Tuning menu.
4. Select a span (recommended value for satellite: 100 MHz).
5. Adjust the reference level.
6. Adjust your frequency or select a channel.
7. You can search for a frequency or channel by dragging left or right on the screen.
8. When the marker is on the carrier, it should automatically lock, turning the bottom toolbar green.
9. If not locked, the bottom toolbar turns red.
10. Once locked, the signal is automatically demodulated, showing video and signal parameters.

This process allows for the creation and adjustment of satellite channel plans on the ATLAS NG.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Promax ATLAS NG

Summary of Contents for Promax ATLAS NG

  • Page 1 ATLAS UNIVERSAL BROADCAST ANALYZER -0 MI2207-...
  • Page 2 NOTES ABOUT THE MANUAL Read the user’s manual before using the equipment, mainly SAFETY RULES paragraph. The symbol on the equipment means “SEE USER’S MANUAL”. In this manual may also appear as a Caution or Warning symbol. WARNING AND CAUTION statements may appear in this manual to avoid injury hazard or damage to this product or other property.
  • Page 3 (“WORKSPACES” on page 60). •Update: Description of input impedance option (“Top Menu” on page 13). •Update: More and better specifications (“SPECIFICATIONS ATLAS NG” on page 70). •Update: Change of side micro-USB connector to USB-C (“Equipment Details” on page •Update: Optical power meter (“Optical Power Measurement”...
  • Page 4 SAFETY RULES * The safety could not be assured if the instructions for use are not closely followed. * Use this equipment connected only to systems with their negative of measurement connected to ground potential. * The AL-103 external DC charger is a Class I equipment, for safety reasons plug it to a supply line with the corresponding ground terminal.
  • Page 5 SAFETY SYMBOLS DESCRIPTIVE EXAMPLES OF OVER-VOLTAGE CATEGORIES * Cat I: Low voltage installations isolated from the mains. * Cat II: Portable domestic installations. * Cat III: Fixed domestic installations. * Cat IV: Industrial installations. CAUTION: The battery used can present danger of fire or chemical burn if it is severely mistreat.

  • Page 6: Table Of Contents

    TABLE OF CONTENTS 1. INTRODUCTION ..................1 1.1. Description .................... 1 2. SETTING UP ....................3 2.1. Package Content ..................3 2.2. Power ....................3 2.2.2.Charging the Battery ....................4 2.2.1.First Charge ......................4 2.2.3.Charge / Discharge Times ..................5 2.2.4.Energy Saving ......................
  • Page 7 5.4. Resources ....................64 6. WEBCONTROL ..................66 6.1. Introduction ..................66 6.2. Settings and Remote Access ..............66 6.3. Remote Console ..................68 7. SPECIFICATIONS ATLAS NG ..............70 7.1. General....................70 7.2. TV Analyzer Mode..................75 7.2.1.Supported Standards ....................75 7.2.2.TV Analyzer Tools .....................79 7.3. Spectrum Analyzer Mode ................82 7.4.

  • Page 8: Introduction

    The new ATLAS NG has been created with the aim to make easy the user experience. Everything has been designed so the equipment can be fully operated using the 10”...
  • Page 9 S and C bands, used by technologies like teleports or broadband wireless. The ATLAS NG has a variety of input-output connectors that allows the user to work with most of the broadcast signals: N-type universal, 1PPS, FC/APC, ASI- SDI, SFP+, Ethernet among others.

  • Page 10: Setting Up

    Power The ATLAS NG is powered by a 7.4 V built-in rechargeable Li-Po battery of high quality and long operation time. This equipment can operate on battery or connected to the mains using a DC adapter. An adapter is also supplied to use with the power connector car (cigarette lighter).

  • Page 11: Charging The Battery

    2.2.1 First Charge The equipment comes with the battery half charged. Depending on the time elapsed from first charge and environmental conditions may have lost some of the charge. You should check the battery level. It is advisable a first full charge. 2.2.2 Charging the Battery Connect the DC power adapter to the equipment through the power connector...

  • Page 12: Charge / Discharge Times

    2.2.3 Charge / Discharge Times Average charging time with the equipment off (fast charge): 3 hours to achieve an 80% charge.  5 hours to achieve a 100% charge.  With the equipment on (slow charge): 5 hours to achieve an 80% charge. ...

  • Page 13: Usage Tips

    Usage Tips The battery is losing storage capacity as you go through its life. Contact your PROMAX distributor when necessary to replace the battery. To extend battery life the user should follow these tips: In case of providing a long inactivity period of the equipment it is ...

  • Page 14: Equipment Details

    Equipment Details Inputs and Outputs (03:13s) Figure 4. Front View. Chapter 2: SETTING UP October 2023...
  • Page 15 Figure 5. Left Side View. Output with HDMI™ technology (supports HDMI 1.4b with 2.9 Gb/s and up to 3840x2160 @ 30 Hz). USB-C Host/Device connector (selectable). RJ45 connection for remote management. Analogue Video/Audio input/output. Power input connector. LED indicator for battery charge level. October 2023 Chapter 2: SETTING UP...
  • Page 16 Figure 6. Top View. ON/OFF. Press for an instant to switch on/off. USB 3.0 port for WiFi dongle, GPS receivers or USB drives. RJ45 connector for IPTV or OTT signal analysis. SFP+ transceiver compatible with GE and fiber optics. ASI/SDI output signal. ASI/SDI input signal.

  • Page 17: Reset

    Switching On/Off Switching On: ► Press the power on/off button located at the top of the device for a few moments. The SFP+ connector's LED lights will turn on, and the fans will start running to indicate that the device is booting up. The boot screen appears and also a progress bar that indicates the system is loading.

  • Page 18: Icons

    When to RESET: When it crashes and does not respond to any key.  When it does not switch on.  When it does not finish the boot process.  Icons Icons on screen provide useful information about the equipment: Icon Description Icon...

  • Page 19: Home Menu

    Home Menu To access the Home Menu from any screen press the PROMAX logo at the left bottom corner. From the Main Menu you can access the main tools as described below. Main Menu (05:23s) TV Analyzer: Tool to analyze and demodulate terrestrial, CATV or ...

  • Page 20: Top Menu

    50 Ω. If the input is 75 Ω, a 75/50 Ω adapter should be used at the meter’s input (see optional accessories in “SPECIFICATIONS ATLAS NG” on page 70) and then select the 75 Ω option.

  • Page 21: Screenshot

    The Screenshot function captures an image of what appears on the screen. The image is saved in PNG format. There are 2 capture methods: Press and hold the PROMAX icon located in the bottom-left corner (on  some screens) for one second.

  • Page 22: Tuning Practical Examples

    Tap on the "CH Plans" icon to list all the channel plans. Connect a USB memory to the USB 3.0 port. Tap on the channel plan you want to edit until the options menu appears. Select the "Export to USB" option to copy the channel plan to the USB memory.

  • Page 23: Rf Satellite Signal Tuning

    On the main panel, press and select the Spectrum tool. On the small panels, you can select other tools, like the video tool to watch the demodulated signal or the measurements tool to check power and MER. Swipe right from the left side or press on the bottom bar to display the tuning menu.
  • Page 24 If you tune by frequency, select the settings parameters: Supply voltage, polarization and satellite band. If you tune by channel, then previously you have to select a channel plan that contains the channels for the satellite. In case you do not find a proper channel plan, you can add or create a new one.

  • Page 25: Firmware Update

    In order to update your ATLaS follow these steps: Download the firmware from the ATLAS datasheet at the PROMAX website order to obtain the latest version of the update file. The downloaded file is in ZIP format. Unzip it and copy the UDPATE file to the root of a USB memory.

  • Page 26: Settings And Preferences

    3 SETTINGS AND PREFERENCES Settings Menu Press Settings on the Home Menu to access the Settings menu. Settings Menu (02:19s) Settings are classified according to these categories: General: Equipment information and customizing options.  TV Analyzer: TV analyzer settings.  IPTV: IPTV settings.
  • Page 27 Appearance ► Power Off: It allows the user to select the time to power off, which is the  time after which the equipment shuts down automatically unless an user press any key. Time options are: off, 1, 5, 10, 30 o 60 minutes. Language: Language used on menus, messages and screens.

  • Page 28: Tv Analyzer Settings

    Gateway: IP Address of the router into the local network (by default  10.0.1.1). DNS1: Option 1 of DNS (by default 8.8.8.8). DNS stands for Domain  Name System and translates domain names into IP addresses so that computers can communicate with each other over the Internet. DNS2: Select DNS2 (by default 8.8.4.4).
  • Page 29 Linked Reference Level: It allows the user to enable/disable the automatic  adjustment of the reference level. Min. Ter. Level: It sets the minimum level for a terrestrial analogue signal  to be identified when channel exploring or datalogger. Min. Ter. Power: It sets the minimum power for a terrestrial digital signal ...

  • Page 30: Spectrum Analyzer Settings

    3.1.3 IPTV Settings Network ► Network parameters to receive IPTV signal. DHCP: Enable this option to get the proper IP address when the unit is  first connected to a network. That feature contributes to make things easier to installers when debugging network access. Enable the DHCP protocol for proper IP configuration.

  • Page 31: Audio And Brightness Settings

    SP Measurements ► SP Units: It allows the user to select the power units (dBm, dBmV, dBuV).  Reference Level linked: It allows the user to enable/disable the reference  level to be adjusted to the received signal automatically. Audio and Brightness Settings From the Top menu, you can access audio and brightness settings among others management options (for more details refer to “Top Menu”...

  • Page 32: Tv Analyzer

    4 TV ANALYZER Introduction The TV Analyzer mode allows you to analyze RF signals: terrestrial, satellite, CATV or FM. It can demodulate and display services for terrestrial/CATV from 45 to 1000 MHz and satellite from 250 to 2350 MHz. TV Analyzer Introduction (02:58s) The TV Analyzer screen is divided into 3 panels: main panel ...

  • Page 33: Tv Analyzer Screen

     Optical Power Meter (through the Top menu)  The advanced tools available for the TV Analyzer are: Drive Test  TV Analyzer Screen Figure 7. Triangle (all panels): It displays a menu with all available tools. Select one tool to be displayed on the panel. The same tool cannot be in more than one panel (for more details about tools refer to “Tools”...

  • Page 34: Tuning Settings

    + / - sign (big panel): It shows the panel in full-screen mode. To return to the previous view press on the minus sign. Tuning bar: It shows tuning parameters like frequency/channel selected, signal info (standard, bandwidth...), network name and Transport Stream total bitrate.

  • Page 35: Tools

    Reference Level: It allows the user to edit the reference level. The  reference level is the power range represented on the vertical axis. The Reference Level can be changed directly swiping up or down. Attenuator: It can work in Manual mode or Automatic mode. In manual ...

  • Page 36: Spectrum

    4.4.1 Spectrum The spectrum tool shows the spectrum of the signal received from the RF input. Spectrum (02:26s) Touch gestures ► Tap: It places the cursor on the point. Zoom out: It amplifies signal, reducing the span. Zoom in: It reduces signal, amplifying the span. Horizontal drag (spectrum): It moves along the frequency band.
  • Page 37 Screen ► Figure 8. Spectrum: The red vertical line shows the frequency been tuned. At either side there are two dotted white lines that define the signal bandwidth over which the meter is trying to identify the tuned signal. When the signal is tuned, the meter auto identifies it.

  • Page 38: Measurement

    kHz, 30 kHz, 40 kHz, 100 kHz, 200 kHz and 1000 kHz. According to filter selected maximum and minimum span changes. Visible span: It disables or enables span.  Center marker: It centers the selected frequency on the screen.  4.4.2 Measurement The measurement tool displays all relevant measurements for the tuned signal.
  • Page 39 Screen ► Figure 9. Monitoring graph: It shows the selected measurement being plotted on a graph over time. The user can select any of the measurements available on the panel below. The selected measurement is inside a yellow frame. .Relevant Measurements: It shows the most relevant measurements for the tuned signal.

  • Page 40: Signal Parameters

    4.4.3 Signal Parameters The signal parameters tool displays the modulation parameters of the signal being tuned and demodulated. Signal Parameters (00:32s) Screen ► Figure 10. General Panel: It displays the most relevant information. Detail panel: It shows detailed data. Chapter 4: TV ANALYZER October 2023...

  • Page 41: Video

    4.4.4 Video The video tool displays one of the services carried by the signal being demodulated. Video (01:15s) Screen ► Figure 11. Video Panel: It displays the demodulated service. Service bar: It shows the name of the service and quality. If pressing, it opens a new window that shows all services available for the transport stream.

  • Page 42: Audio Levels

    Press on the gear to display settings: Audio: It allows the user to change language of the service in case there is  more than one available. 4.4.5 Audio levels The Audio level tool allows the user to visualize audio levels in a graphical way.. Audio levels (01:33s) Screen ►...

  • Page 43: Audio/Video Parameters

    4.4.6 Audio/Video Parameters It shows details about the service selected and its video and audio layers. Video Values (01:43s) Screen ► Figure 13. General Panel: It provides service information: name, provider and network name. Also Service ID, Logical Channel Number, transport stream ID, Network ID, original network ID, if the service is scrambled, audio language, subtitles language and some others.

  • Page 44: Constellation

    If you amplify this tool to full screen pressing on Plus it shows a new area on the left side with more details about the service layers and also about the MPD file if there is any. 4.4.7 Constellation The constellation tool is used to analyze terrestrial, satellite and CATV digital signals.
  • Page 45 Screen ► Figure 14. General Panel: It displays the signal demodulated. The constellation is a pattern that shows the symbols received by the demodulator. Symbols are colour coded according to the density of points falling the same area across time. The greater amount of impacts in an area, the warmer the colour of symbols.

  • Page 46: Echoes

    4.4.8 Echoes The echoes tool detects and displays the echoes that can occur due to multiple reception of the same digital terrestrial channel with different delays. Echoes (04:22s) Screen ► Figure 15. Graph Panel: It shows the echoes. The horizontal axis shows time (μs) and the vertical axis shows level (dB carriers).

  • Page 47: Shoulder Attenuation

    Touch gestures ► Tap: Tap on a table column in the measurement panel and its corresponding echo will be highlighted in blue color. Settings ► Press on the gear to display it: Zoom: To zoom out echoes graph (x1, x2, x4, x8). ...
  • Page 48 Screen ► Figura 16. The two blue bands on each side of the tuned channel are the areas where the shoulder attenuation measurement are taken. The top right box show two values corresponding to the attenuation shoulder. The lower attenuation corresponds to the left side and the upper attenuation corresponds to the right side.

  • Page 49: Mer By Carrier

    Center marker: It centers the selected frequency on the screen.  4.4.10 MER by Carrier The MER by carrier tool measures the MER for each carrier in the channel and shows it graphically. This tool is useful to analyse systems where signals of different type interfere between them.

  • Page 50: Recording

    Touch gestures ► Tap: Select a carrier. Settings ► Press on the gear to display settings: Line Mode: It defines the spectrum trace mode: Line, solid or gradient.  Line shows only the spectrum outline. Solid shows the spectrum with a yellow background.

  • Page 51: Transport Stream Analyzer

    Screen ► Figure 18. File information Panel: On the left you can see start time, duration and file size. On the right side there is the total memory and free memory available. On/Off button: It shows a red button to start/stop recording. If pressing when the button is a cercle it starts recording and when it is square it stops recording.

  • Page 52: 1.Transport Stream Tables

    signal being tuned. The transport stream can be received through any of the equipment inputs. Transport Stream Tools The TS Analyser has these tools: TS Tables  TS Bitrate  TS PIDs  TS Alarms  In the next sections each one of these tools are explained in detail. Transport Stream Tables 4 .

  • Page 53: 2.Transport Stream Bitrate

    Screen ► Figure 19. General Panel: It shows all metadata extracted from the transport stream. These are the PSI (Program Specific Information) and SI (Service Information) tables and all their related fields. They can be unfolded to see its subfields. 4 .
  • Page 54 Screen ► Figure 20. Services panel: It shows all services in the transport stream in real time. The “Others” service indicates the amount of bitrate used by the PSI/SI tables. The pie chart indicates the percentage contribution in bitrate per service in respect to the total TS bitrate, including null packets, which are displayed in black.

  • Page 55: 3.Transport Stream Pids

    Transport Stream PIDs 4 . 4 . 1 2 . 3 The TS PIDs tool lists all the PIDs in the Transport Stream. Video Screen ► Figure 21. PID Panel: It displays all the PIDs in the analyzed TS. For each PID describes its content and their minimum, average and maximum bitrates.

  • Page 56: 4.Transport Stream Alarms

    Reset: It resets and captures the PID list.  Transport Stream Alarms 4 . 4 . 1 2 . 4 The TS Alarms tool shows the list of alarms which are classified in three priority levels (according to TR 101 290 guidelines by DVB group). Screen ►...
  • Page 57 Settings ► Press on the gear to display settings: Reset: It initiates the alarm analysis from scratch.  Restart: It initiates the capture of PSI/SI table info again followed by the  alarm analysis. Icons ► Besides each alarm there is an icon which is explained in the following table. Icon Description No errors occurred for this alarm.
  • Page 58 Screen ► Figure 23. General Panel: The column on the left shows several RDS data fields. The column on the right shows alternative frequencies. Specific panel: The column on the left shows different operation modes of the decoder. The column on the right shows extra text information. RDS Data ►...

  • Page 59: Optical Power Measurement

    4.4.14 Optical Power Measurement The meter has an FP/APC input that allows connecting fiber optics to take different measurements. Optical Power Measurement (01:00s) To measure power in the whole optical band you must follow these steps: Connect the optical signal to the meter’s optical input (FC-APC connector). From the TV Analyzer mode, access the Top menu by swiping down from the top of the screen.

  • Page 60: Advanced Tools

    Screen ► Figura 24. The first bar shows the optical power in the full optical bandwidth. To take measurements by optical band or make RF conversions for optical LNB, it is necessary to install the optical fiber option. Advanced Tools In the next sections each advanced tool for the TV Analyzer is explained.

  • Page 61: Drive Test

    4.5.1 Drive Test The Drive Test tool allows you to carry out a drive test in order to map the coverage of a specific transmitter. Drive Test (07:06s) To perform a Drive Test the user must follow these stages: Create a Drive Test task ...
  • Page 62 Span Time (s): Defines the length of the time axis in the plot that is  displayed when the Drive Test starts. Sample Time (s): Time between samples when working in Auto mode.  When finish tap on “Save” to save the Drive Test task. Exit the Drive Test tool by swiping from the right side of the screen to the left and pressing on the cross next to “Drive Test”...
  • Page 63 It also shows SNR measurements and geoposition data. If all is correct the user can follow to the next stage. Screen ► Figure 26. GPS Status screen Running a Drive Test task ► From the TV Analyzer mode, access the Advanced Tools menu by swiping from the right side of the screen to the left and tap on “Drive Test”.
  • Page 64 When starting, it first tunes the channel saved in the task and then starts plotting measurements over time. All data measurement and geolocation data is saved in a file that can be recovered after the drive test task finishes. During the drive test task, if it is needed, the user can pause it pressing on “Pause”...
  • Page 65 Exporting Drive Test data ► Once the drive test task is done we can recover the measurements taken. From the TV Analyzer mode, access the Advanced Tools menu by swiping from the right side of the screen to the left and tap on “Drive Test”. In the dropdown menu, select the Drive Test task done to export its data.
  • Page 66 Press the Finish button at the Drive test screen.  Swipe from the right side of the screen to the left and tap on the cross  next to “Drive Test”. Chapter 4: TV ANALYZER October 2023...

  • Page 67: Workspaces

    5 WORKSPACES Introduction The tool Workspaces is a function that allows the user to easily create a folder to store and manage data independently from other folders. Measurements, channel plans, screenshots and any other data associated will be stored in its folder.
  • Page 68 Now, at the top toolbar, you can find all the type of data available for the selected mode. Depending on the selected working mode different data can appear. They are: Tools  CH Plans  Dataloggers  Drive Test  Recordings ...
  • Page 69 Figura 29. Side Bar: choose between wokspaces or resources. Dropdown menu: select the Working Mode. Top toolbar: select the type of data. File list: select a file to export, rename or remove. Case Example ► I have captured the spectrum in TV Analyzer mode and saved it with the name "test".

  • Page 70: Workspace Management

    The list of captured files should appear, and one of them should be a file named "test". Long-press on the file name "test," and from the popup menu, select "Export to USB" to copy the file to the USB memory. Safely eject the USB memory from your meter and connect it to your PC in order to view the image.

  • Page 71: Resources

    Resources The “Resources” folder is a repository of common data for all the workspaces. This folder stores a large number of files that can be exported to the currently selected workspace at any given time. For example, in the case of channel plans, we can keep in our workspace only the channel plans that we regularly use.
  • Page 72 Chapter 5: WORKSPACES October 2023...

  • Page 73: Webcontrol

    6 WEBCONTROL Introduction The webControl function allows you to connect remotely to the meter in order to visualize measurements and operate on it. The meter must be connected to a data network. To connect to meter from a remote access device use just a standard web browser.
  • Page 74 In the "Mask" box, enter the mask value, which should be the same as the one used by the local network (usually 255.255.255.0; if you do not know these data see “find out local network data” section). To connect the meter from an external network, fill in the “Gateway” with the info obtained from the local network.

  • Page 75: Remote Console

    NOTE: There are many ways to connect to the meter from an external network. If you have follow these instructions and you fail to connect the webControl, please contact PROMAX technical assistance and we will help you (promax@promax.es). Remote Console ►...
  • Page 76 ► Screen Description Figure 31. Selected function (Console). Start / Stop console emulation button. To start emulation press on “start webcontrol”. The meter will display the message “webserver in use” and it cannot be used while emulation is running. To end the emulation press on “stop webcontrol”...

  • Page 77: Specifications Atlas Ng

    SFP+ IPTV Connector RJ45 Type Ethernet 10 Mbps / 100 Mbps / 1 Gbps Analogue Video Input Input Connector Multipole Jack Zin=75 Ω Sensibility 1 Vpp 75 Ω; positive video Analogue Audio Input October 2023 Chapter 7: SPECIFICATIONS ATLAS NG...
  • Page 78 SNMP Protocol Connector DVB-CI compliant CAM module input WiFi Interface Type Wireless standard 802.11 abgn Dongle-Wifi connected to USB port Dongle must be validated by PROMAX Remote control Interfaces Interfaces RJ45 Ethernet; USB Virtual COM; WiFi Remote control JSON: sending and receiving remote...
  • Page 79 LBER equal o less than 1E-7. Timestamp Date and time at each measured channel ►Mechanical Features Parameter Value Additional Data 304x218x83 mm (W) x (H) x (D) Dimensions Weight 3.4 kg Without installed options October 2023 Chapter 7: SPECIFICATIONS ATLAS NG...
  • Page 80 1x AD-055 F/f-BNC/f adapter 1x AD-056 F/f-DIN/f adapter 1x AD-057 F/f-F/f adapter 1x CA-005 Mains cord 1x CB-096 Rechargeable Li-Po battery 7.4 V 18.3 Built-in 1x DC-300 Transport belt 1x DC-302 Carrying bag Chapter 7: SPECIFICATIONS ATLAS NG October 2023...
  • Page 81 It is recommended to keep all the packing material in order to return the equipment, if necessary, to the Technical Service. ►Optional Accessories Parameter Value Additional Data AD-061 Adapter 50/75 N/m - BNC/f October 2023 Chapter 7: SPECIFICATIONS ATLAS NG...

  • Page 82: Tv Analyzer Mode

    22 dBμV - 122 dBμV Power measurement accuracy ± 1,5 dB Sensibility Frequency resolution 1 kHz Measurement Power, CBER, VBER, MER, PER, C/N, PER and Link Margin Tuning Range 45 - 1000 MHz Chapter 7: SPECIFICATIONS ATLAS NG October 2023...
  • Page 83 Power measurement accuracy ± 1,5 dB Sensibility Frequency resolution 1 kHz Measurement Power, BER, MER, PER, C/N and Link Margin Tuning Range 45 - 1000 MHz Standard compliant International Telecommunication ITU-T J.83 v3.0 Union standard October 2023 Chapter 7: SPECIFICATIONS ATLAS NG...
  • Page 84 Sensibility -77 dBm @2340 MHz SR= 27,5 MS/s Frequency resolution 1 kHz Measurements Power, CBER, VBER, MER, C/N and Link Margin Symbol Rate 1,1 - 80 Msym/s Tuning Range 250 – 2350 MHz Chapter 7: SPECIFICATIONS ATLAS NG October 2023...
  • Page 85 Tuning range 45 - 1000 MHz Frequency resolution 1 kHz Accuracy of level measurement ± 1,5 dB Sensitivity 8 dBμV / -99 dBm S+N/N = 12 dB Measurement Level, C/N RDS information Available October 2023 Chapter 7: SPECIFICATIONS ATLAS NG...

  • Page 86: Tv Analyzer Tools

    250 - 2350 MHz Tuning mode Channel or frequency Tuning accuracy ± 2.5 kHz Tuning Resolution 10 kHz Resolution Bandwidth (RBW) 10, 20, 40, 100, 200, 1000 kHz Measurement range 20 dBμV - 130 dBμV Chapter 7: SPECIFICATIONS ATLAS NG October 2023...
  • Page 87 SI Tables NIT, BAT, SDT, EIT, TDT, TOT Árbol jerárquico de tablas Alarms Alarm log According to standard ETSI TR101 290 v1.2.1 Bitrate analyser Data info and pie chart PIDs Identied packet list October 2023 Chapter 7: SPECIFICATIONS ATLAS NG...
  • Page 88 Shoulder Attenuation Available MER by Carrier Available Service Recording Available Optical power measurement Available ► Advanced Tools Parámetro Valor Datos Adicionales Drive Test Available TS Recording Available ALP Recording Available FM audio Recording Available Chapter 7: SPECIFICATIONS ATLAS NG October 2023...

  • Page 89: Spectrum Analyzer Mode

    156 dBm/Hz for f < 3 GHz (DANL) 150 dBm/Hz between 3 - 4.425 GHz 149 dBm/Hz between 4.425 - 6 GHz Uncertainty in level measurement < ± 1.5 dB Measurement resolution 0.1 dB October 2023 Chapter 7: SPECIFICATIONS ATLAS NG...

  • Page 90: Iptv Mode

    1080p240 / 4Kp60) MPEG-2 (HD, MP, HL hasta 1080p6) Audio play MPEG-1, MPEG-2 AAC, HE-AAC Dolby Digital (DD), Dolby Digital + (DD+) Dolby AC-4 Charts Packet rate Jitter histogram Inter packet arrival time Chapter 7: SPECIFICATIONS ATLAS NG October 2023...
  • Page 91 6-7 < 1.0E-6 Signal Parameters Link speed 10 Mbit/s, 100 Mbit/s, 1Gbit/s Multicast group UDP Port Protocol: UDP, RTP IP source FEC (present, rows, columns) TTL (time to live) TS pacekts per frame October 2023 Chapter 7: SPECIFICATIONS ATLAS NG...

  • Page 92: Asi Mode

    Network Information Table Bouquet Association Table Service Description Table Event Information Table Time and Date Table Time and Date Table Max. Bitrate 200 Mbit/s Alarms Alarms log According to ETSI standard TR101 290 v1.2.1 Chapter 7: SPECIFICATIONS ATLAS NG October 2023...

  • Page 93: Sdi Mode

    SDI @ 270 Mbps: 4:3 4:2:2 525i/625i SDTV + embedded AES3 audio SDI @ 1.5 Gbps: 16:9 4:2:2 up to 720p60/1080p30/1080i60 HDTV + AES3 SDI level A @ 3 Gbps: 16:9 4:2:2 up to 1080p60 HDTV + AES3 October 2023 Chapter 7: SPECIFICATIONS ATLAS NG...

  • Page 94: Options

    Level: left (L), right (R), L+R, L-R, RDS information Available ► DAB/DAB+ Parámetro Valor Datos Adicionales Descriptive Code OP-006-DAB Tuning range 45 - 1000 MHz Frequency resolution 1 kHz Accuracy of level measurement ± 1,5 dB Chapter 7: SPECIFICATIONS ATLAS NG October 2023...
  • Page 95 Parámetro Valor Datos Adicionales Measurement Power, C/N, MER, CBER MSC CBER, FIC CBER Frequency offset, bandwidth FIB Ratio October 2023 Chapter 7: SPECIFICATIONS ATLAS NG...

  • Page 96: Maintenance

    8 MAINTENANCE Instructions for Returning by Mail Instruments returned for repair or calibration, either within or out of the warranty period, should be sent with the following information: Name of the Company, name of the contact person, address, telephone number, receipt (in the case of coverage under warranty) and a description of the problem or the service required.
  • Page 97 Cleaning the Plastic Case ► The equipment has to be disconnected before cleaning the case. The case must be cleaned with a solution of neutral soap and water, using a soft cloth dampened with this solution. Before use, the equipment has to be completely dry. Never clean with abrasive soaps, chlorinated solvents or aromatic hydrocarbons.

  • Page 98: Additional Information

    ADDITIONAL INFORMATION Additional Documents On the PROMAX website you can find additional information to go deeper in some aspects related to the field strength meter. Name Description Link PROMAX Download Area Documentation related to http://www.promaxelectronics.com/ing/ PROMAX equipment downloads/user-manuals ATLaS Datasheet of ATLaS at the https://www.promaxelectronics.com/ing/...

  • Page 99: Multimedia Content

    MULTIMEDIA CONTENT The following table shows all the links to video tutorials included in this manual: Chapter Title Link QR Code 1. Introduction Introducing the ATLAS NG https://youtu.be/KYArk4qbBgc 2. Setting Up Inputs and outputs https://youtu.be/nxaKZi93W-Q 2. Setting Up Main Menu https://youtu.be/VS-wk48tupI...
  • Page 100 Chapter Title Link QR Code 4. TV Analyzer Shoulders Attenuation https://youtu.be/HFEWls3zSeY 4. TV Analyzer Optical Power Measurement https://youtu.be/d9H9NAMvPxc 4. TV Analyzer Drive Test https://youtu.be/Fa2WQocZU-s 6. webControl webControl https://youtu.be/JtKQXymTRbg Chapter ii: MULTIMEDIA CONTENT October 2023...

  • Page 101: Index

    iii INDEX battery Battery Time battery, charge Battery, time charge Center Frequency Channel Plan Color System Datalogger PSI Equipment Information Icons Information, additional Input Impedance Language 20, Minimal FM Level Minimal Satellital Power Minimal Terrestrial Level Minimal Terrestrial Power Network Options Offset Power Off Reference Level...
  • Page 102 Terrestrial Units TFT Screen WebControl Remote Console WebControl Settings Webcontrol, password Webcontrol, Remote Access Annex iii: INDEX October 2023...
