RANGER

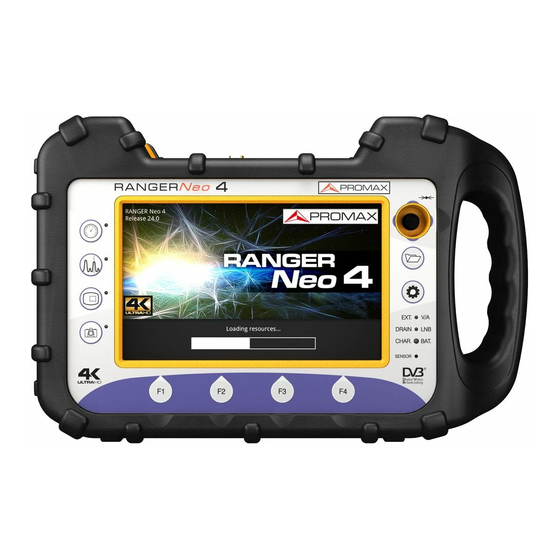

FRONT VIEW
1
2
3
4
5
15
1
Touch Screen
2
Measurement key
3
Spectrum key
4
TV key
5
Export (press >1s)
/ Reference (press <1s)
SCREEN ICONS REFERENCE
STATUS BAR
Battery charging
4h21
Battery not charging, time left indicator
Battery not charging. Yellow level indicates charge left
Satellite band
18V
Current voltage, 22 kHz signal and LNB power level
Terrestrial band
USB flash drive inserted
WIFI signal source
Current installation
Compressed installation
SatCR (SCD/EN50494) commands enabled
JESS (SCD2/EN50607) commands enabled
Joystick multi-function enabled.
Two-letter code indicates the exact function:
FR Frequency tuning
FR
CH Channel tuning
CH
SP SPAN change
SP
MK Marker moving
MK
EC
EC Echo change/zoom
AP
AP
Access Point change
* Optical Option. Refer annex on the User's Manual
Find the user's manual on the download area at:
Neo
4
6
Joystick
7
Installations management key
Settings key
8
External Audio/Video Input indicator
9
External unit power Supply indicator
10
www.promaxelectronics.com
QUICK REFERENCE GUIDE
Task scheduled
5 GHz RF Auxiliary Input*
SERVICE LIST SELECTOR
DIGITAL TV service
Digital radio
DIALOG BOXES
Error message
Question message
VIDEO & AUDIO SETTINGS MENU
TFT backlight brightness
ON:
(<1s)
OFF:
6
DVB - Digital Video
7
Broadcasting Project
8
Battery charging indicator
11
Light sensor
12
Reset (press and hold 5s)
13
14
Softkeys
15
Active Function indicator
IPTV signal source
OTT streaming
High Definition TV service
Data
Scrambled service
OK message
Warning message
Volume
(2s)
Trademark of the
9
10
11
12
13
14
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Promax RANGERNeo 4
Summary of Contents for Promax RANGERNeo 4

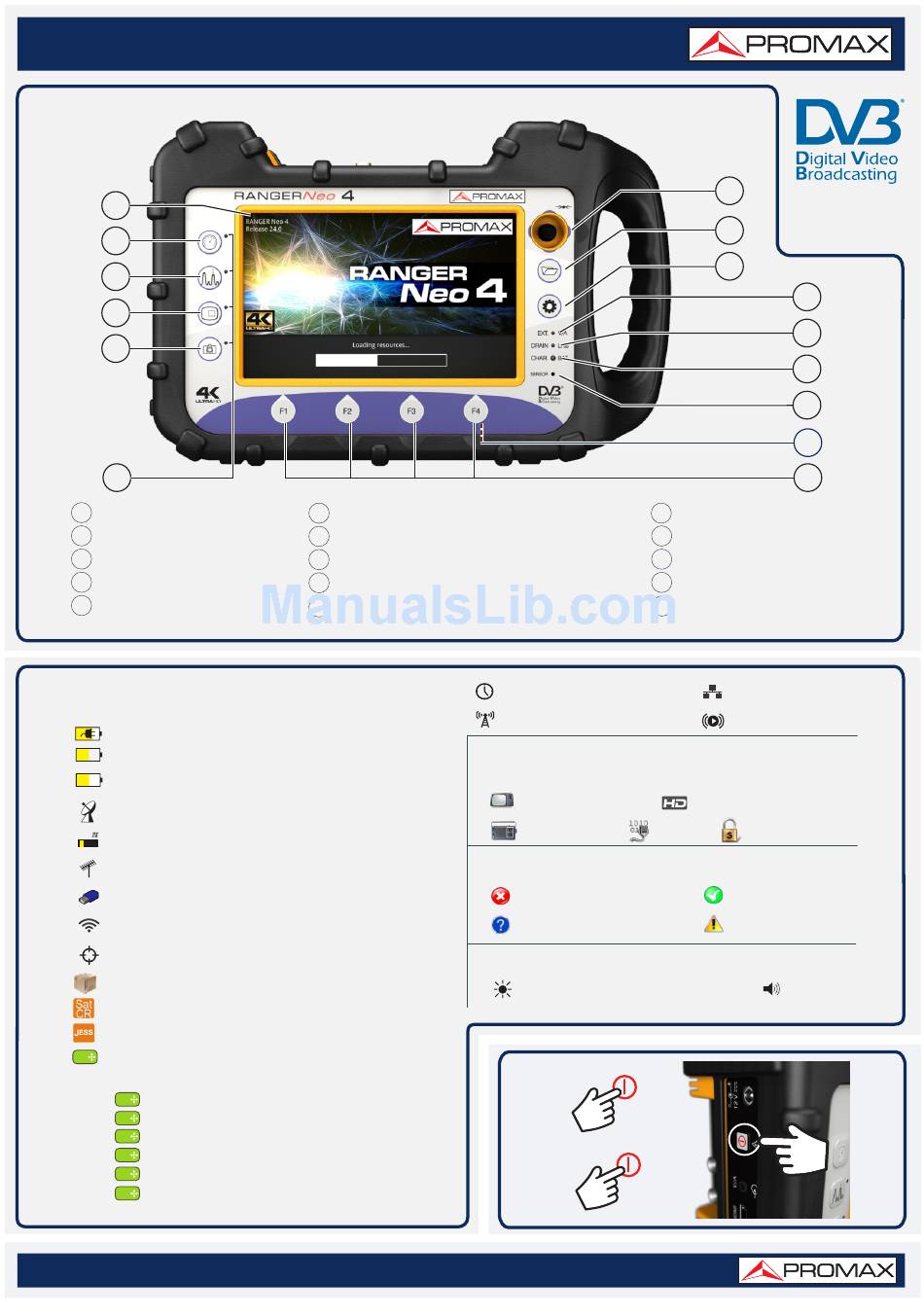

- Page 1 RANGER QUICK REFERENCE GUIDE FRONT VIEW Trademark of the DVB - Digital Video Broadcasting Project Battery charging indicator Touch Screen Joystick Light sensor Measurement key Installations management key Spectrum key Settings key Reset (press and hold 5s) TV key External Audio/Video Input indicator Softkeys Export (press >1s) External unit power Supply indicator...
-
Page 2: Spectrum Analyser
RANGER QUICK REFERENCE GUIDE SETTINGS Settings Signal source: IPTV WiFi Band: Terrestrial Satellite SCREENS MEASUREMENT DEFAULT DEFAULT DEFAULT MEASUREMENT 1/3 MEASUREMENTS 2/3 MEASUREMENTS 3/3 23/12/2016 07:40 23/12/2016 07:40 23/12/2016 07:40 Power: 80.8dBµV Band 65.6 dBµV DVB-S PARAMETERS 14.1dB Bandwidth: 37125 kHz Spectral Inversion: Symbol rate: 27500 kSps... - Page 3 RANGER QUICK REFERENCE GUIDE TV MODE DEFAULT DEFAULT DEFAULT TV 3/3 TV 1/3 TV 2/3 23/12/2016 07:40 23/12/2016 07:40 23/12/2016 07:40 VIDEO SERVICE Network RGE2 Provider RTVE 12549 8916 FREE ONID TSID 40000 40001 NIT v. +Info App. Type HbbTV Power: 69.2 dBµV...
- Page 4 RANGER QUICK REFERENCE GUIDE Tools Select Service... Single Channel Channel Plan Signal Monitoring Explore Channel Plan Discover FM Stations Field Strength: Datalogger New... Test & Go TS Analyser Alarms Tables Bitrates PID List T2MI TS Recording... Service Recording... Streaming V/A Network Delay Echoes Constellation...
-
Page 5: Site Survey
Signal Source: IPTV WiFi Band: 2.4 GHz * 5 GHz * (Only available for 5 GHz WiFi option) WIFI SCREENS SITE SURVEY PROMAX PROMAX Estudio de Emplazamiento SITE SURVEY 22/12/2016 12:10 22/12/2016 12:10 SSID SSID CH RSSI(dBm) CH RSSI(dBm) Security... -
Page 6: Wifi Spectrum
RANGER QUICK REFERENCE GUIDE WIFI SPECTRUM WIFI MENUS Tuning Channel: Channel Plan WIFI_2_4GHZ Tune By: Access Point Channel Tuning Channel: Channel Plan WIFI_2_4GHZ Tune By: Channel Access Point Ref. level: Span: Center tuned frequency Advanced View All Parameters Advanced Persistence Samples: Resolution Bandwidth: 10, 20, 30, 40, 100, 200, 1000 kHz Vertical Range:... - Page 7 RANGER QUICK REFERENCE GUIDE IPTV SETTINGS IPTV Settings Signal Source: IPTV WiFi IPTV SCREENS IP MEASUREMENTS IPTV DEFAULT TV 1/3 DEFAULT TV 3/3 5h15 5h15 09/02/2015 15:35 15/01/2015 15:05 VIDEO SERVICE Network RGE2 Provider RTVE 12549 ONID LIBRE 8916 TSID 40000 40001 +Info...
- Page 8 RANGER QUICK REFERENCE GUIDE INTER PACKET ARRIVAL TIME IPTV MENUS Multicast Multicast Address UDP Port: Recent Multicast Addresses Discovered Multicast Addresses IGMPv3 Server Sources IP Parameters...
-
Page 9: Preferences Menu
RANGER QUICK REFERENCE GUIDE Tools Select Service... TS Analyser TS Recording... Service Recording... View IP Network Log... IPTV Graph Inter Packet Arrival Time Packet Rate Inter Packet Arrival TI... IP Ethernet Frame Viewer Streaming V/A Start TS Wi-Fi Configuration Stop Start current service Network Delay Ping and delay measurements.. -
Page 10: Settings Menu
RANGER QUICK REFERENCE GUIDE SETTINGS MENU Terrestrial Settings Signal Source: Wi-Fi IPTV Wi-Fi Band: Terrestrial Satellite Decoder TS Input: ASI Input RF Demodulators ASI Output: Recorded TS RF Demodulators ASI Input Supply Output: Disabled Enabled Supply Voltage: LNB Drain: 12 V 24 V External Satellite Settings... -
Page 11: Installation Management
RANGER QUICK REFERENCE GUIDE INSTALLATION MANAGEMENT Filter by Type Load All (0) Screen shots (0) Channel Plans (0) Dataloggers (0) Manage DiSEqC (0) Data Captures (0) Signal Monitoring (0) Service Databases (0) Antennas (0) TS (0) Create New File Mark All Unmark All Tools Delete... -
Page 12: Parameter Selection
RANGER QUICK REFERENCE GUIDE JOYSTICK (1s) Joystick configuration RefLevel+ RefLevel+ CH - CH + Span - Span + RefLevel- RefLevel- Access Point Frequency Channel SPAN Marker moving change tuning tuning Change (Marker ON) PARAMETER EDITION PARAMETER SELECTION Tuning Advanced Channel: Average Channel Plan CCIR... -
Page 13: Touch Screen
MPEG2 TS locked: TA1C Span: 100 MHz CH 31 DVB-T Tools Advanced CH 33 DVB-T Tools Advanced VIRTUAL KEYBOARD WRITING DEFAULT DEFAULT SPECTRUM 1/3 SPECTRUM 1/3 15/05/2015 13:50 15/05/2015 13:55 Enter file name: Enter file name PROMAX & & Shift Cancel Shift Cancel... -
Page 14: Toolbar Icons
RANGER QUICK REFERENCE GUIDE TOOLBAR DEFAULT DEFAULT SPECTRUM 1/3 SPECTRUM 1/3 15/05/2015 14:00 15/05/2015 14:10 Freq.: 554.00 MHz Power: 77.8 dBµV MER: 27.6 dB CBER: 1.1E-04 Freq.: 570.00 MHz Power: 74.7 dBµV MER: 28.5 dB CBER: 1.4E-04 C/N: 32.5 dB 8.9 dB VBER: <1.0E-08... - Page 15 RANGER QUICK REFERENCE GUIDE ONE-TOUCH ZOOM IN DEFAULT SPECTRUM 1/3 23/12/2016 07:40 Freq: 1147.00 Power: <-19.2 MER: 30.3 dB CBER: E-05 11747.00 C/N: <36.2 8.9 dB VBER: <1.0 E-08 dBµV 554.00 MPEG2 TS locked: RGE2 Span: 100 MHz CH 31 DVB-T Tools Advanced...
-
Page 16: Side View
RANGER QUICK REFERENCE GUIDE SIDE VIEW STREAMING Power input connector ASI-TS output ETHERNET connector HDMI output ON/OFF button USB connectors Video/Audio input ETHERNET connector for PC (Webserver**, NetUpdate) ASI-TS input Input connector for CAM module* * not included ** password: Password RESET If the device crashes, press the ON/OFF button for 10 seconds.
