In order to select the different fields on the screen, press the cursors
and then edit by pressing the rotary selector [1].
After selecting the START field the instrument begins to carry out the available
measurements automatically. Once completed, the process will be ready to repeat again
(for example, for a new test point), or view measured data by turning the rotary selector
[1], or store the information in memory (SAVE) or exit from this acquisition (EXIT).

5.10.1 DATALOGGER for Attenuation and IF SAT tests

The TV EXPLORER II / II+ allows to make measurement acquisitions while
executing an Attenuation test at terrestrial band or an IF SAT test at satellite band
(see section "5.11 Verification of distribution networks").
For it, one of these tests should be activated previously as the following figure
shows.
10
-10
-20
FREQ:
REF:
TEST:
ATT:
In order to make the automatic acquisition of these measurements, select it from
UTILITIES menu by pressing the
option, and later the NEW DATALOGGER option. In the CHANNEL SET field will
appear the type of test that the instrument is going to store automatically.
Page 38
0
48.30
90.6
86.3
4.3

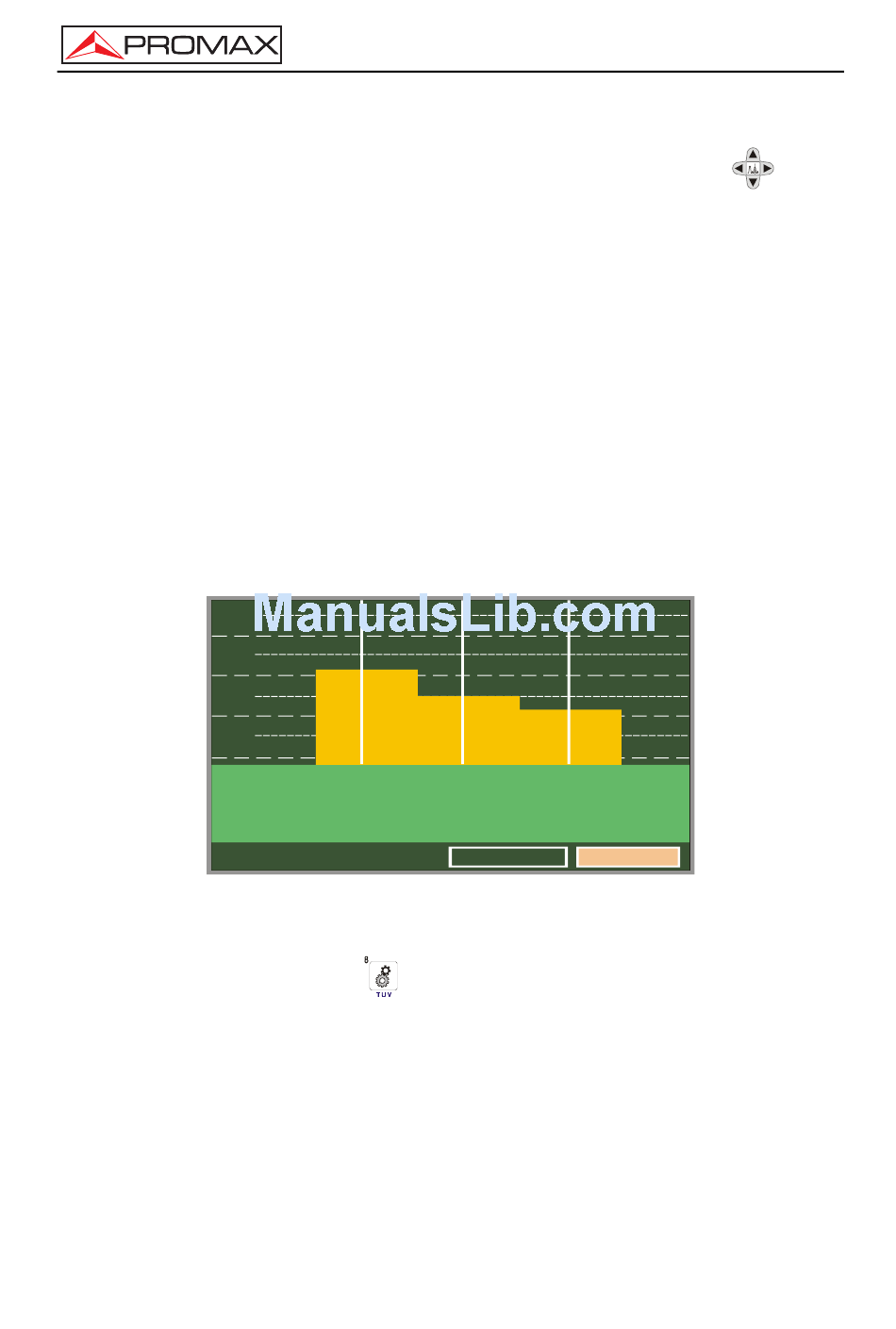

Figure 13.- Attenuation Test. Terrestrial band.
[22] key, and activating the RUN DATALOGGER
USER'S MANUAL. TV EXPLORER II/II+
