Press the DiSEqC key [21] on frontal panel in order to quit the commands
execution mode and to locate the mark cursor on the frequency or channel.
5.24

SATCR function

By means of function SATCR it is possible to control the devices of a TV
installation satellite that are compatible with the SatCR
Router), which allows to concentrate manifold down frequencys (slots) by an only cable.
By this way each user using a slot can tune and decode any signal present in the
satellite.
In order to select the SATRC function, press the DiSEqC key [21] from frontal
panel, and using the rotary selector [1] activate the SATRC option. In the display are the
configuration options that users can modify: slot selection, number of slots, device
address, Frequency sep, pilot signal activation, and finally the frequencies corresponding
to each slot.
FREQ:
DL-Ku:
CH:
When activating the Enable Pilots options, the SatCR device located in the
headend emits a pilot signal with constant level for each down frequency (slot). This
function facilitates the verification and identification for different satellite channels that
are available in the installation. The SatCR technology is being developed and tested in
many countries.
11
SatCR is a trademark of STMicroelectronics.
Page 90
DiSEqC
» SELECTED SLOT:
» NUMBER OF SLOTS:
0 20 40
» ADDRESS:
1300.02 MHz
» STEP:
11900.0 MHz
» ENABLE PILOTS:
2
» SLOT 1:
» SLOT 2:
EXIT

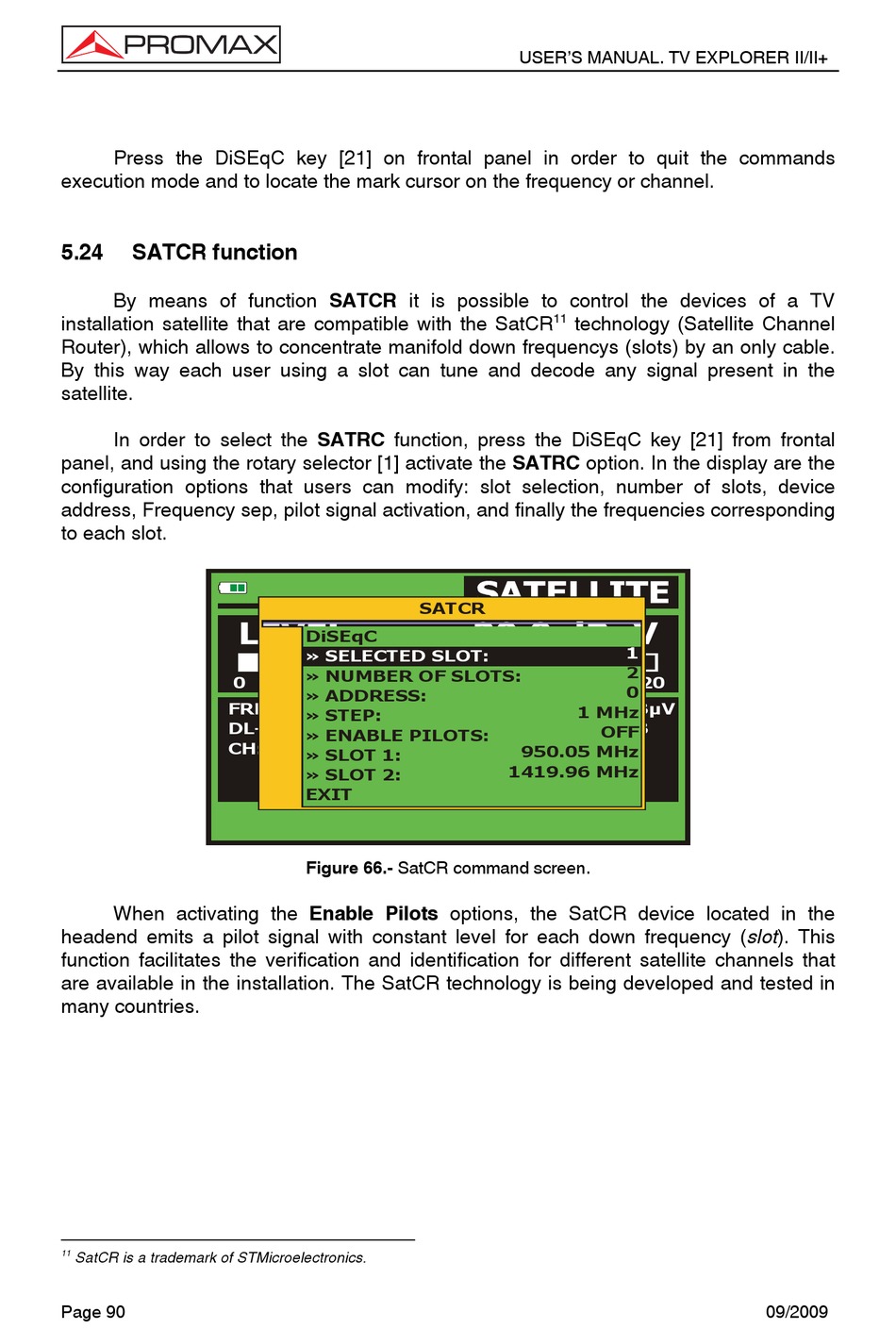

Figure 66.- SatCR command screen.
USER'S MANUAL. TV EXPLORER II/II+
11
technology (Satellite Channel
SATCR
60 80 100
» LEVEL: 30.0
1 MHz
C/N:
950.05 MHz
1419.96 MHz
1
2
120
0
dBµV
7.6 dB
OFF
09/2009
